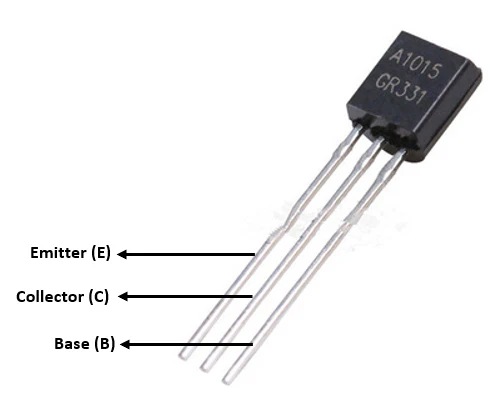

A1015 PNP Transistor ( Pack of 3 )
Specification
| Part Number | A1015 |
| Polarity | PNP |
| Collector-Base Voltage | -50V |
| Collector-Emitter Voltage | -50V |
| Emitter-Base Voltage | -5V |
| Collector-Current | 150mA |
| Power Dissipation | 0.4W |
| Operating Temperature | -50°C to 150°C |
| Country of Origin | China |
The A1015 transistor is a high voltage and high current PNP transistor. A transistor can normally be used as a switch or amplifier, but this transistor is commonly is used only for audio frequency amplifier application since it has a very high dc current gain value of 120-700. It can switch on or off the loads with voltages upto 50V. When transistor is fully biased which you can do with base emitter voltage of about 1.1V, it can carry a collector current upto 150mA. It can be used in Darlington Pair, audio Amplification, driver stage amplification etc.
Specifications :-
- PNP Transistor
- DC Current Gain (hFE): 70-700
- Continuous Collector current: 150mA
- Base- Emitter Voltage: 1.1V
- Collector-Emitter Voltage: 50V
- Collector-Base Voltage: 60V
- Available in To-92 Package
product image for illustration purposes only. actual product may vary.
