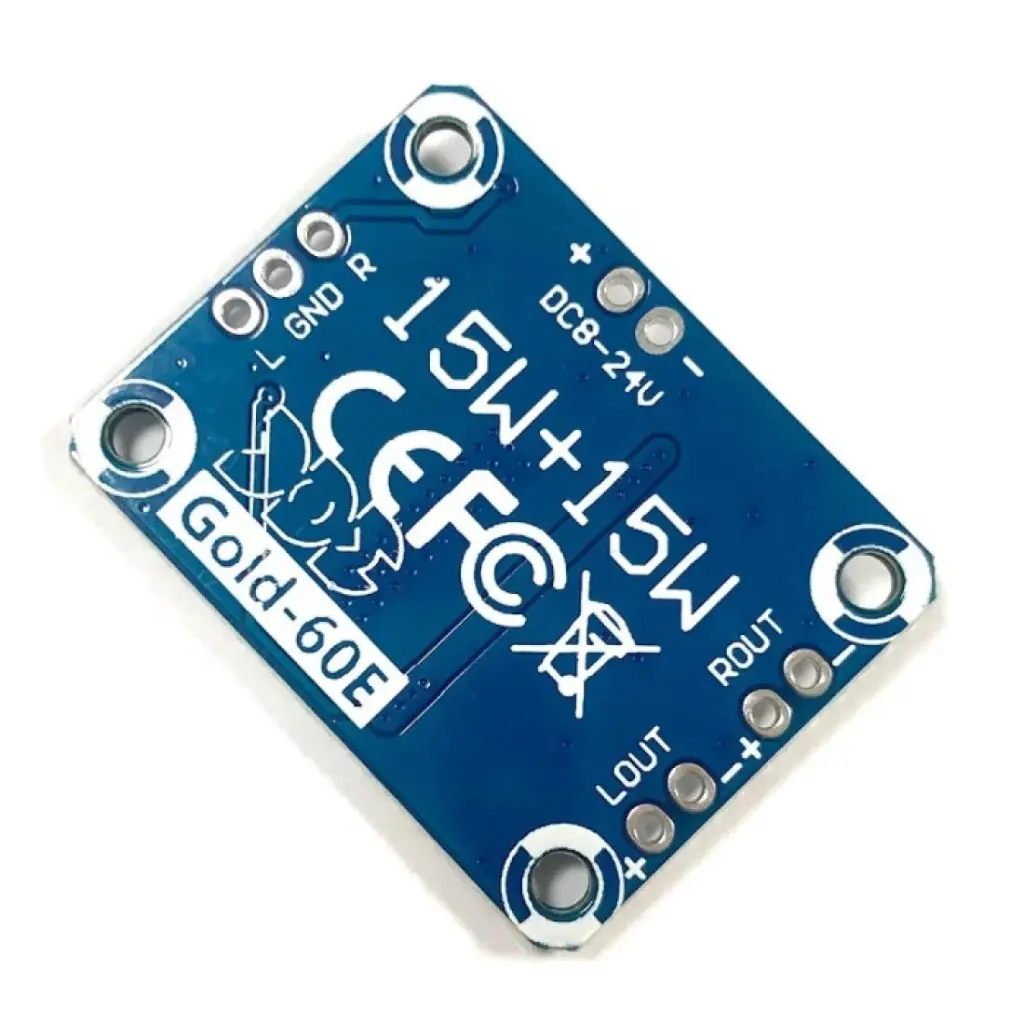

TPA3110 Audio Amplifier Module (DC 8-24V) - Dual Channel 15W + 15W

Description

This Dual Channel Stereo Class D Amplifier Board is intended to drive bridged-tied stereo speakers and is built as a 15W (per channel). This Amplifier Board is typically used with 8-ohm speakers, although it can also drive speakers as low as 4 ohms. The Stereo Amplifier performs at a considerably greater efficiency than other renowned ICs in a voltage range of 8V to 24V supply. The onboard TPA3110D2 audio power amplifier chip enables double-track 15W + 15W, with a 4/8 impedance. It is an extremely efficient board that eliminates the requirement for a heat sink. This device is fully secured from GND, VCC, and output-to-output shorts. It is used in various applications like TV, audio devices, Wireless speakers, etc.

Features:

• Operating voltage range: 8V to 24V
• Amplifier chip: TPA3110 / HDX8816A
• Output power: 2 x 15W
• Dimension: 33×25.6×3.6mm
