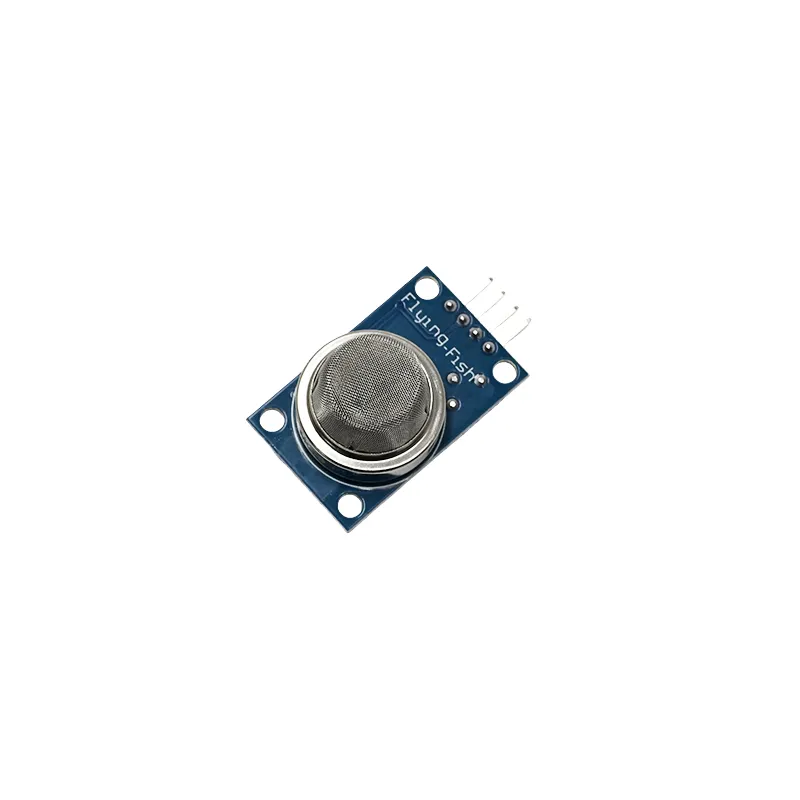

MQ-9 Carbon Monoxide (CO), Methane (CH4), and LPG Gas Sensor Module

Prototyping and Engineering Tips from Robogears

• Mandatory Preheating: The MQ-9 requires a "burn-in" period. For the first use, leave the sensor powered on for 24–48 hours to stabilize the chemical layer. For daily use, allow 2–5 minutes of preheating before trusting the readings; otherwise, the initial values will be wildly inaccurate.

• The Heater Cycle Logic: To get the best results for CO, your code should cycle the heater voltage. If you keep the heater at a constant 5V, the sensor will be very sensitive to methane but less accurate for carbon monoxide.

• Avoid Contaminants: Never expose the sensor to silicon vapors (found in some glues and hairsprays) or high concentrations of corrosive gases (like Chlorine or HCl). These can "poison" the SnO2 layer, permanently reducing sensitivity or killing the sensor entirely.

• Calibration: Since every MQ-9 has slightly different base resistance ($R_0$), you must calibrate it in "clean air." Use the analog output to find your baseline value and factor this into your code to calculate the true Parts Per Million (PPM).

Package Includes

• 1 x MQ-9 Carbon Monoxide, Methane, and LPG Gas Sensor Module

Disclaimer

This sensor is intended for prototyping and educational use. For life-safety industrial installations, always use certified, factory-calibrated gas detectors. Do not submerge in water or expose to freezing temperatures
