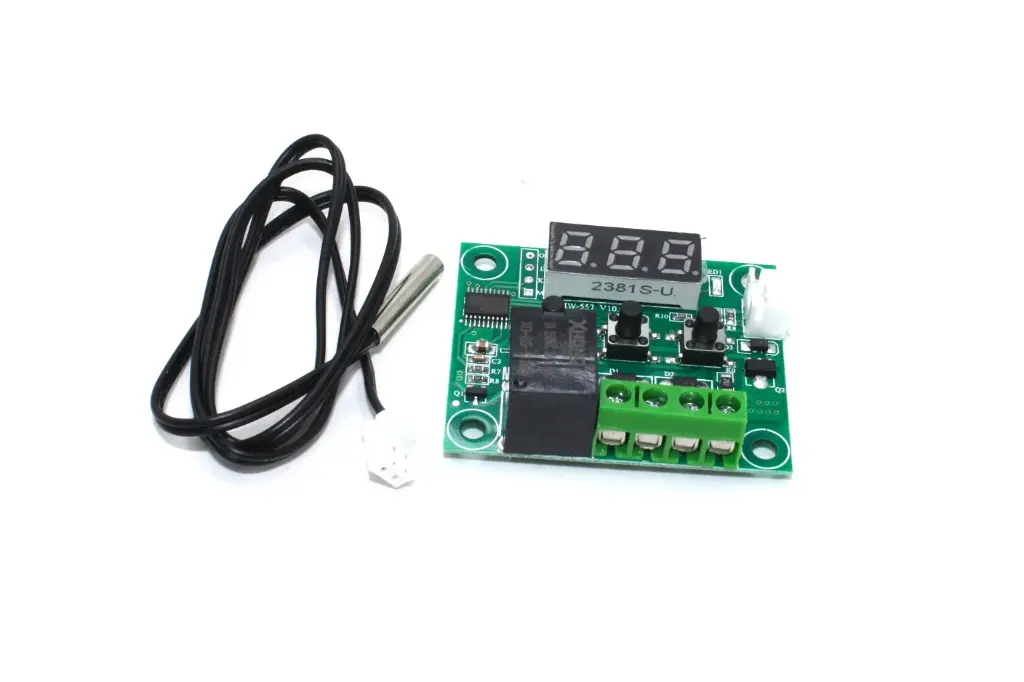

W1209 12V Digital Temperature Controller Module W/ Display and NTC Temp Sensor

W1209 12V Digital Temperature Controller Module W/ Display and NTC Temp Sensor

SpecificationDetails
Input VoltageDC 12V
Temp Control Range-50°C to 110°C
Resolution0.1°C (-9.9 to 99.9)
Measurement Accuracy0.1°C
Refresh Rate0.5 Seconds
Output Type1-Channel Relay (10A)
Sensor TypeNTC (10K 0.5%) Waterproof
                                 Price

🚚 Ships within 24 Hours
📦 Pan India Delivery
₹ 93.22 ₹ 93.22
(Tax included)

बारकोड: 98217

Product Description

The W1209 Temperature Controller is a complete intelligent thermostat that provides high-precision temperature sensing and control. The module features an onboard microcontroller and a tactile keypad that allows you to set the trigger temperature and various parameters like hysteresis, delay start, and high-temperature alarms. Its compact size and clear digital display make it easy to integrate into panels or enclosures, providing professional-grade thermal management at an affordable price point.

Key Features

  • Dual Functionality: Supports both Heating (H) and Cooling (C) modes.

  • Non-Volatile Memory: Saves all parameter settings even after power-off.

  • Precision Control: Adjustable hysteresis allows you to define the exact temperature "swing" before the relay toggles.

  • Waterproof Sensor: Comes with a 0.5-meter NTC probe suitable for air or liquid measurement.

  • Clear Interface: Bright 3-digit LED display for real-time temperature monitoring.


Technical Details

  • Control Modes (P0-P6): * P0: Cooling/Heating

    • P1: Hysteresis Setting

    • P2: Highest Temp Limit

    • P3: Lowest Temp Limit

    • P4: Temperature Correction (Calibration)

    • P5: Delay Start Time

    • P6: High Temp Alarm

  • Relay Contact: Supports up to AC 250V 10A or DC 14V 20A.

Prototyping and Engineering Tips from Robogears

  • Power Stability: Ensure you provide a stable 12V DC supply. Using a low-quality adapter can cause "ghosting" or flickering on the display and erratic relay switching.

  • Hysteresis Management (P1): To prevent the relay from "chattering" (rapidly clicking on and off when the temp is exactly at the set point), set a hysteresis value of at least 0.5°C to 1.0°C.

  • Isolation: While the relay can handle high AC voltages, always keep the AC high-voltage wires physically separated from the 12V DC input side to avoid interference and ensure safety.

Package Includes

  • 1 x W1209 Digital Temperature Controller Module

  • 1 x Waterproof NTC Thermistor Probe (approx. 30cm-50cm)

Disclaimer

The relay contacts are passive (dry contacts); they act as a switch only and do not provide power to the output device. You must wire the load's power source through the relay. Always use a fuse in your AC circuits to prevent fire hazards.

🔒
