Description:
This low-cost, micro-sized metal gear RC servo provides a holding torque of 1.80kg.cm at 4.8V, making it perfect for student robotic projects involving arms or linkages. The main advantage of an RC servo over a DC brush motor is its precise control over the rotation angle.
Specification:
- Compatible with Arduino Servo library.
- Metal gears
- Operating Voltage: 4.8 – 6VDC
- Speed at 4.80V(no load): 0.1 s/60°
- Torque at 4.80V : 1.8 kg.cm (~0.1765 N.m)
- Size: 32.5 x 12 x 35.5 mm (LxWxH)
- Weight: 16g
- Rotation angle: 180 degree
- Wiring:
- Brown = GND
- RED = 5V
- Orange = Signal
Packing list:

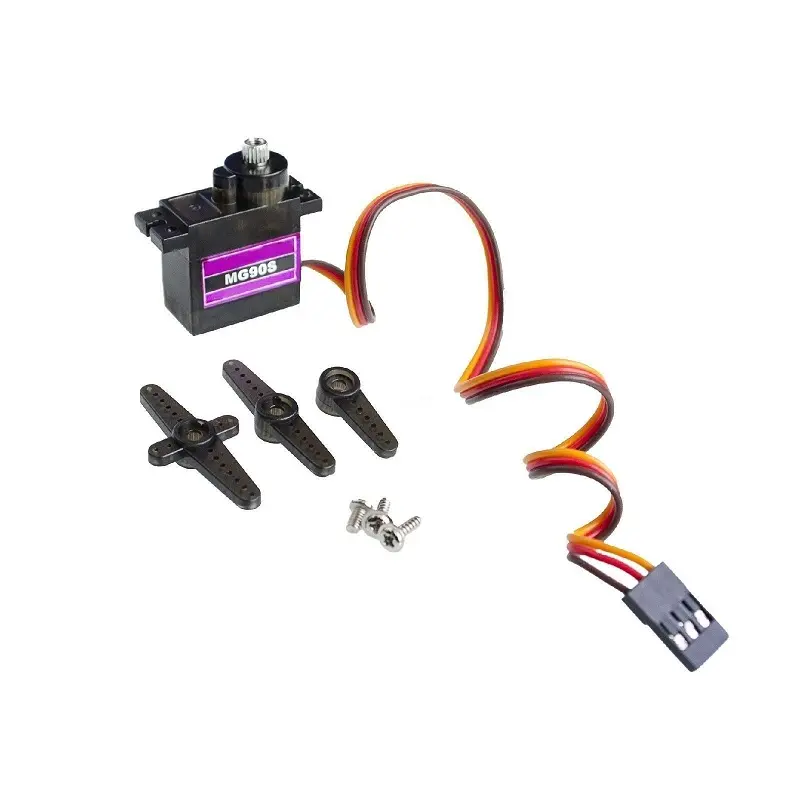

- 1x MG90S 9g Servo Metal Gear 180 degrees
