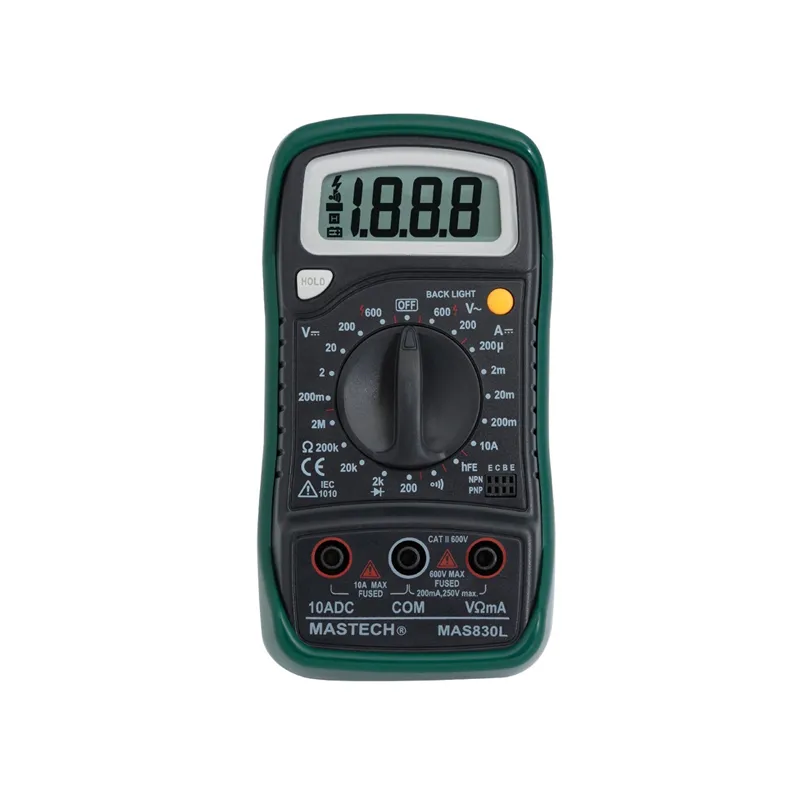

Mastech MAS830L Digital Multimeter (Original) – Professional Handheld Multitester with Backlit LCD, Data Hold, and Protective Silicone Holster

Mastech MAS830L Digital Multimeter (Original) – Professional Handheld Multitester with Backlit LCD, Data Hold, and Protective Silicone Holster

(0 review)
FeatureDetails
DC Voltage200mV to 600V
AC Voltage200V to 600V
DC Current200$\mu$A to 10A
Resistance200$\Omega$ to 2M$\Omega$
Special FunctionsBacklight, Data Hold, Diode & hFE Test
Safety RatingCAT II 600V
Price
₹ 635.59 ₹ 635.59
(Tax included)

बारकोड: 5999

Product Description & Technical Details

Product Description The Mastech MAS830L is a world-renowned, high-quality digital multimeter recognized for its durability and precision. A step above generic entry-level meters, the original MAS830L features a ruggedized build with a protective green silicone holster that guards against drops and rough handling in the workshop. It is equipped with a large, easy-to-read Backlit LCD, making it ideal for the technicians at Robogears Pvt Ltd who often work in dimly lit control panels or field environments. Whether you are measuring battery voltages, testing LEDs, or checking circuit continuity, the MAS830L delivers stable and reliable results.

Key Highlights

  • Backlit LCD Display: Features a bright blue backlight that can be toggled on for clear visibility in dark work areas, a feature often missing in standard 830-series meters.


  • Data Hold Button: Allows you to "freeze" a measurement on the screen, which is extremely useful when you need to record data in your Odoo ERP after probing a hard-to-reach component.


  • Ruggedized Protection: The thick, removable silicone rubber holster provides excellent shock absorption and includes a built-in kickstand for hands-free viewing on your workbench.

  • Built-in Continuity & Diode Test: Includes a loud audible buzzer for continuity and a diode test function to check the health of semiconductors and LEDs.


  • Original Mastech Quality: Features high-quality internal components and better-shielded probes compared to "compatible" clones, ensuring longer life and higher accuracy.

Technical Specifications

  • Input Impedance: 10M$\Omega$

  • Transistor Test: Measures hFE (0-1000) for NPN and PNP transistors

  • Power Source: 9V 6F22 Battery

  • Dimensions: 138mm x 69mm x 31mm

  • Weight: ~170g (including holster)

Prototyping & Installation Tip The MAS830L is highly favored for Low-Light Troubleshooting. When testing continuity in a bundle of wires, the backlight combined with the loud buzzer allows you to work quickly without constant eye strain. If you are measuring high-current loads (near 10A), always ensure the red probe is in the unfused 10A jack and limit your test to 10 seconds to protect the internal shunt from overheating.

[Image showing a technician using the MAS830L to test a robotic arm controller]

Note: This product includes the Original MAS830L Multimeter, Silicone Holster, Test Probes, and 9V Battery. Product images are for illustration purposes only.
