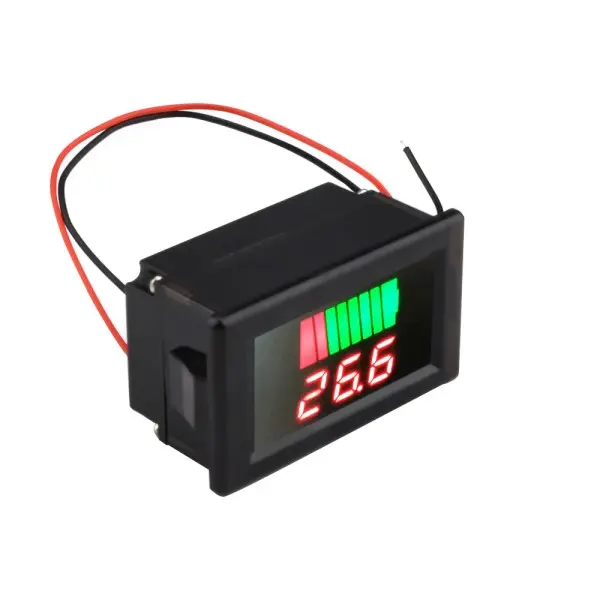

DC 12V-60V Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter
Quick Overview:
- Voltage Measuring Range: 12–60V DC
- Working Current: 5–15mA
- Material: Copper + ABS Plastic
- Body Color: Black
- Digital Display Light Color: Blue
- Dashboard Cut Size for Installation: 50mm × 30mm
Description:
This meter can automatically identify the voltage of 12V, 24V, 36V, 48V, or 60V battery cars and similar electric vehicles (up to 84V). It can also measure the battery level of lithium, polymer, or nickel-metal hydride batteries. It has a dual display that shows the battery level in 8 colorful bars, with the last two red bars indicating low battery (below 10%). This meter is easy to connect by attaching it parallelly to the battery terminal. It can be used as a fuel gauge for your vehicle dashboard.
The module installation size on your dashboard is 50mm × 30mm.
Features:
- Can be used for other power/voltage measurement purposes
- Double display: battery + voltage at a glance
- Intuitive display
- Upper 8 bars show the battery power (2 red and 6 green)
- Downlink voltmeter displays battery voltage; decimal point automatic shift ensures higher accuracy
- Wide range of applications: lithium battery packs, lead-acid batteries, car batteries, electric car batteries, and many other types of batteries and electric equipment
- Voltage calculation same as power display meter of an electric vehicle
- Meter head automatically recognizes voltage and electricity
- Reverse connection protection (reverse connection will not burn)
Specifications:
| Voltage Measuring Range | 12–60V DC |
| Working Current | 5–15mA |
| Material | Copper + ABS Plastic |
| Body Color | Black |
| Dimension (L × W × H) mm | 55 × 32 × 28 |
| Cable Length | 15 cm |
| Digital Display Light Color | Blue |
| Type | LED Voltage Voltmeter |
| Working Temperature | -10ºC ~ 65ºC |
| Refresh Speed | About 300 ms once |
| Waterproof | No |
Package Includes:
- 1 × DC 12V-60V Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter
