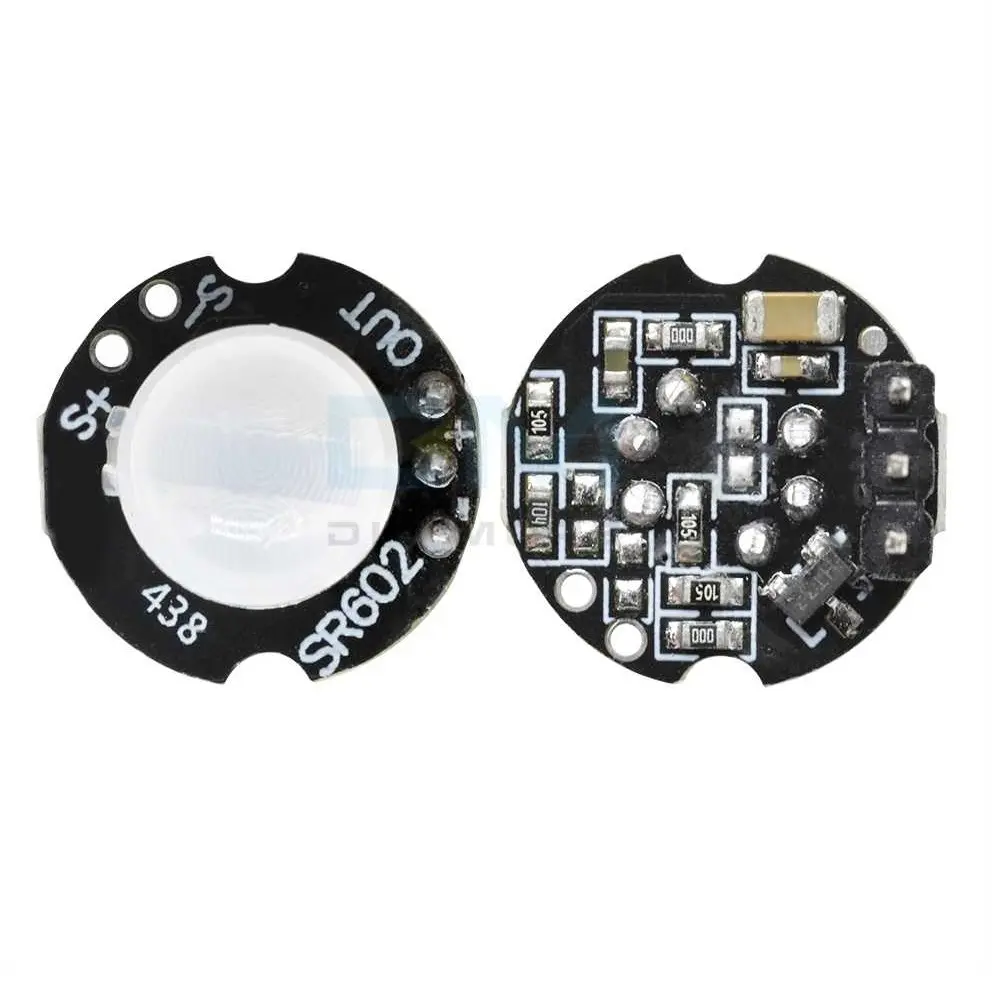

MH-SR602 MINI Motion Sensor Detector Module For Arduino
- Sensing Distance: 3M-5M
- Power supply DC: 3.3V-15V
- Quiescent current: 20uA
- Delay: Adjustable
- Output: high level, H=3.3V, L=0V
Barcode:
146414561
MH-SR602 MINI Motion Sensor Detector Module is used as a Pyroelectric human body infrared sensor module. This module has a sensing distance of up to 5 meters. It Can be used for body sensor lights, alarms, security.
Note:
The high-level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.
It is 2.5 seconds, and you can change one chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time.
Features:
- High sensitivity
- Fast response
- Small static power consumption
- Small size
- Easy to install
Package Includes:
1 x MH-SR602 MINI Motion Sensor Detector Module For Arduino
