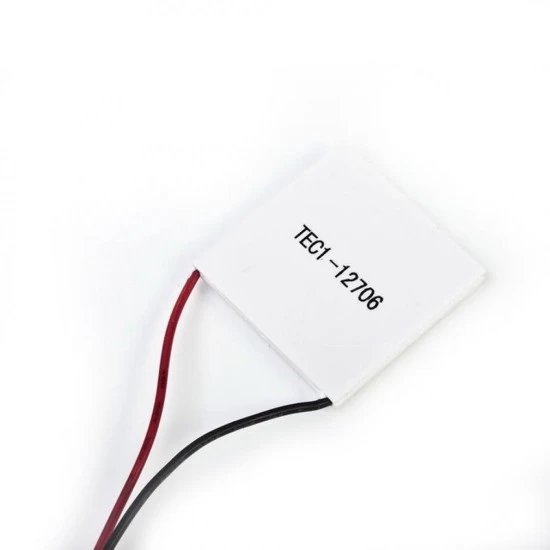

TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module

TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module

Introducing the TEC1 12706 40×40 mm Thermoelectric Cooler 6A Peltier Module, the perfect solution for cooling DIY projects or electronic devices with ease. Utilizing the Peltier Thermoelectric Effect, this compact module features 127 semiconductor pairs in a 40 x 40 mm footprint, capable of efficiently cooling or heating with a temperature range of up to 90°C.

Also known as TEC or Peltier Modules, these devices operate on a simple principle: they generate a temperature difference across their surface, causing one side to heat up while the other cools down. This versatility allows either side to be used for cooling or heating based on your requirements. Additionally, the temperature difference can even be harnessed to generate electricity.

As a compact heat pump powered by DC electricity, the thermoelectric cooler module transfers heat from one side to the other when activated, creating distinct hot and cold sides. This innovative technology finds applications in various sectors, including computer CPUs, CCDs, portable coolers, and medical devices.

Operating Tips

1. Max. Operating Temperature: 138 Degree C
2. Do not exceed Imax or Vmax when operating a module.
3. Please carry out moisture protection options (sealing) in final application use.
4. Life expectancy: 200,000 hours
5. Failure rate based on longtime testing: 0.2%.

Features

Small module.

Operable up to 138°C.

Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.

Quality tested cooling cells.

Solid-state, vibration-free, noise-free.

Simple to install and operate.

Should use with a heat sink.

Specification:

Model number: TEC1-12706

Operating Voltage: 12V

Maximum Voltage Umax (V) : 15.4V

Maximum Current Imax (A) : 6A

Maximum Power: 92 W

Maximum Temperature: 138°C

Power Cord: 200mm

Package Includes

1 x TEC1-12706 40x40mm Thermoelectric Cooler 6A Peltier Module
