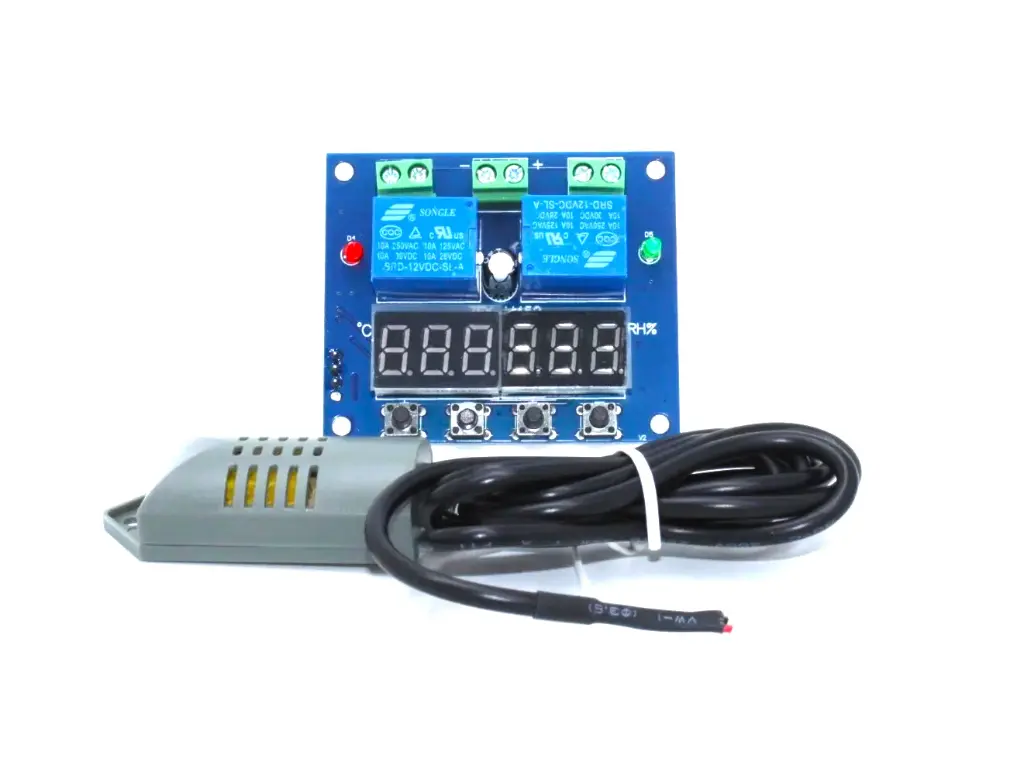

XH-M452 Dual Digital Temperature and Humidity Controller Module – High-Precision 12V DC Thermostat and Hygrostat with SHT20 Sensor for Incubators, Greenhouses, and HVAC Automation

XH-M452 Dual Digital Temperature and Humidity Controller Module – High-Precision 12V DC Thermostat and Hygrostat with SHT20 Sensor for Incubators, Greenhouses, and HVAC Automation

(0 review)
ParameterDetailed Specification
ModelXH-M452
Power Supply12V DC
Temperature Range-20°C to +60°C
Humidity Range0% to 100% RH
Control Precision0.1°C / 0.1% RH
Sensor TypeAM2120 / SHT20 (Integrated Probe with 1m Cable)
Output TypeDual Relay Outputs (10A max per relay)
Dimensions65mm x 55mm x 28mm
Price
₹ 419.49 ₹ 419.49
(Tax included)

Barcode: 1654541

Product Description

Achieve total environmental control with the XH-M452 Temperature and Humidity Controller Module. This professional-grade dual-purpose board functions as both a high-precision thermostat and a hygrostat. It allows you to monitor and control heating/cooling and humidification/dehumidification systems simultaneously. At Robogears, we recommend the XH-M452 for specialized applications like egg incubators, mushroom farming, and greenhouse climate control. The module features two bright LED displays for real-time monitoring and four tactile buttons for setting precise start and stop thresholds. Whether you are building an automated terrarium or a sensitive laboratory storage unit at your Pimpri workshop, the XH-M452 provides a reliable industrial-grade interface for climate management.

Detailed Key Features

  • Independent Dual Control: The left side of the board manages temperature, while the right side manages humidity, with separate relay outputs for each.

  • Heating/Cooling Modes: Set the start temperature higher than the stop temperature for cooling, or lower for heating.

  • Humidify/Dehumidify Modes: Easily configurable for humidifying (start humidity < stop) or dehumidifying (start humidity > stop).

  • High-Precision Sensor: Includes a pre-calibrated sensor probe on a 1-meter cable, allowing you to place the sensor inside an enclosure while the controller remains accessible.

  • Non-Volatile Memory: All settings are automatically saved, ensuring the controller resumes your specific parameters after a power outage.

All Technical Details

  • Button Controls:

    • Temp Buttons: "+" sets start temp; "-" sets stop temp.

    • Humidity Buttons: "+" sets start humidity; "-" sets stop humidity.

  • Wiring Interface:

    • Input: 12V DC Power.

    • Output 1 (Temp): Relay switch for heater/cooler.

    • Output 2 (Humidity): Relay switch for humidifier/fan.

  • LED Status: Integrated indicator lights show which relay is currently active.

  • Applications: Greenhouse ventilation, cigar humidors, industrial drying rooms, and smart home HVAC.

Prototyping & Engineering Tips (Robogears Exclusive)

  • The "Dry Contact" Rule: At our Pimpri facility, we always remind makers that the relay outputs are switches, not power sources. You must loop your device’s power line through the relay terminals.

  • Calibrating the Sensor: If the reading differs from a professional thermometer, you can calibrate it by holding both "+" and "-" buttons of the respective channel to enter the offset menu.

  • Sensor Protection: While the probe is high-quality, avoid submerging it in water. For high-humidity environments (like foggers), ensure the sensor is placed away from direct mist to prevent condensation from affecting long-term accuracy.

  • Power Supply Stability: Ensure your 12V DC adapter can provide enough current for the relays to click reliably (at least 500mA is suggested).

Package Includes

  • 1 x XH-M452 Temperature and Humidity Controller Module

  • 1 x Integrated Temperature/Humidity Sensor Probe (1-meter cable)

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically Blue) or the style of the LED segments may vary between batches, but the XH-M452 dual-control performance and 12V DC compatibility remain as described.
