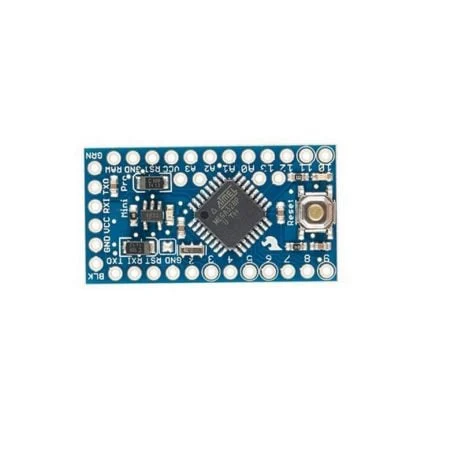

Pro Mini ATMEGA328P 5V/16M

Product Description:

This text describes the Pro Mini 5V Arduino, a micro-controller board based on the ATmega328 chip. It runs on the 16MHz bootloader and does not have any connectors. For beginners, we suggest using the Uno R3 board, which is easier to set up and use. The Pro Mini Arduino is designed for advanced users who are aware of the system voltage (5V), the need for external connectors, and the absence of USB on-board.

The board has 14 digital pins that can be used as inputs or outputs, and 6 of them can also produce PWM signals. It also has 6 analog pins, a resonator, a reset button, and holes for attaching pin headers.

To connect the board to a computer, you need an FTDI cable that provides USB power and communication. The Pro Mini Arduino is suitable for projects that require a permanent or semi-permanent installation. The pin layout is compatible with the Mini Arduino.

There is two versions of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz. To buy 3.3V/8MHz Pro Mini click on the name below

Pro Mini ATMEGA328P 3.3V/8MHz with Connector

Pro Mini ATMEGA328P 5V/16M without Connector

Features:

1. ATmega328 running at 16MHz with external resonator (0.5% tolerance)
2. 0.8mm Thin PCB
3. USB connection off board
4. Supports auto-reset
5. 5V regulator
6. Max 150mA output
7. Over-current protected
8. Weighs less than 2 grams!
9. DC input 5V up to 12V
10. Onboard Power and Status LEDs
11. Analog Pins: 8
12. Digital I/Os: 14
13. 0.7×1.3″ (18x33mm)

Useful Links :

Getting Started with Arduino Pro Mini

Specification:

Package Includes :

1 x Pro Mini ATMEGA328P 5V/16M (Official Version)
