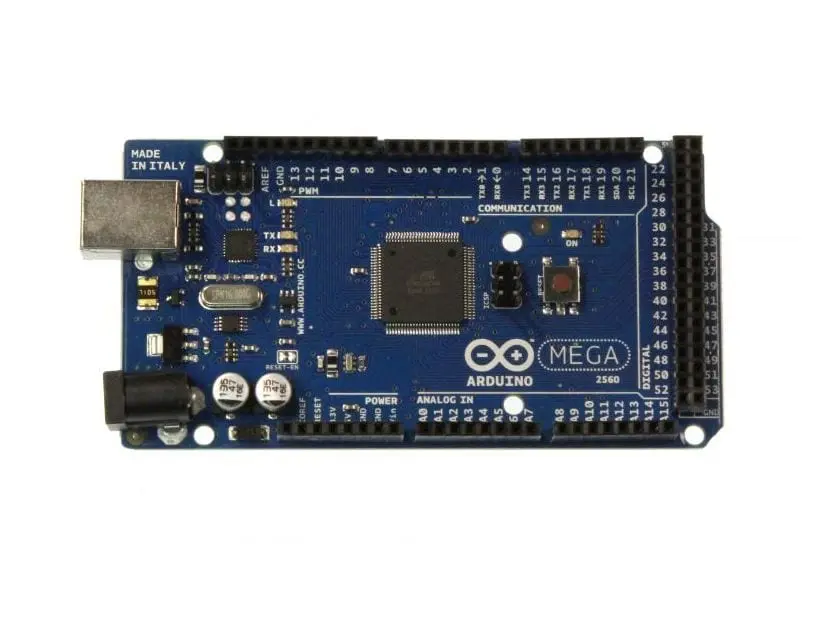

Arduino Mega 2560 R3 Board

Quick Review:

54 digital input / output terminals (14 of which have programmable PWM outputs).
16 analog inputs.
4 UARTs (hardware serial ports).
16 MHz crystal clock.
Operating voltage: 6 ~ 12v.
Dimensions: 110 x 53 x 15 mm.

₹ 1,280.00 1280.0 INR ₹ 1,280.00 Tax Included

₹ 1,280.00 Tax Included

This combination does not exist.

15 Days Warranty
Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery.

Description:

The Arduino Mega 2560 R3 is a celebrated open-source microcontroller board, valued for its precision and versatility. Building on the Arduino Mega’s legacy, it employs the ATmega2560 SMD chip. Enhancements include:

SDA and SCL pins next to the AREF pin
Two additional pins by the RESET pin
The IOREF pin allows shields to match the board’s voltage
Another reserved pin provided for future upgrades
With 54 digital input/output pins (15 supporting PWM output), 16 analog inputs, and 4 UARTs (hardware serial ports), the Mega 2560 R3 boasts a wide array of connectivity options. It also features:
16 MHz crystal oscillator
USB connection
Power jack
ICSP header
Reset button
Offering full support for the microcontroller.

Designed for ease of use, the board can be connected to a computer via a USB cable or powered by a DC adapter or battery. Its compatibility with existing shields and ability to adapt to new ones render it an ideal choice for diverse projects and applications.

Features:

Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage (recommended): 7–12V
Input Voltage (limits): 6–20V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB (8 KB used by bootloader)
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
USB Host Chip: MAX3421E
Length: 101.98 mm / 4.01 in
Width: 53.63 mm / 2.11 in
Height: 15.29 mm / 0.60 in

Specification:

Microcontroller	ATmega2560
EEPROM	4KB
Flash Memory	256 KB
SRAM	8
PWM Output Pins	15
Analog I/O Pins	16
Digital I/O Pins	54 digital input / output terminals (14 of which have programmable PWM outputs)
DC Current per I/O Pin (mA)	50
Architecture	Advanced RISC Architecture
Clock Speed	16 MHz
Input voltage	7-12V
Operating Voltage (VDC)	5
Color:	Blue

Package Includes:

1 x Arduino Mega 2560 Board.
