PRODUCT DESCRIPTION

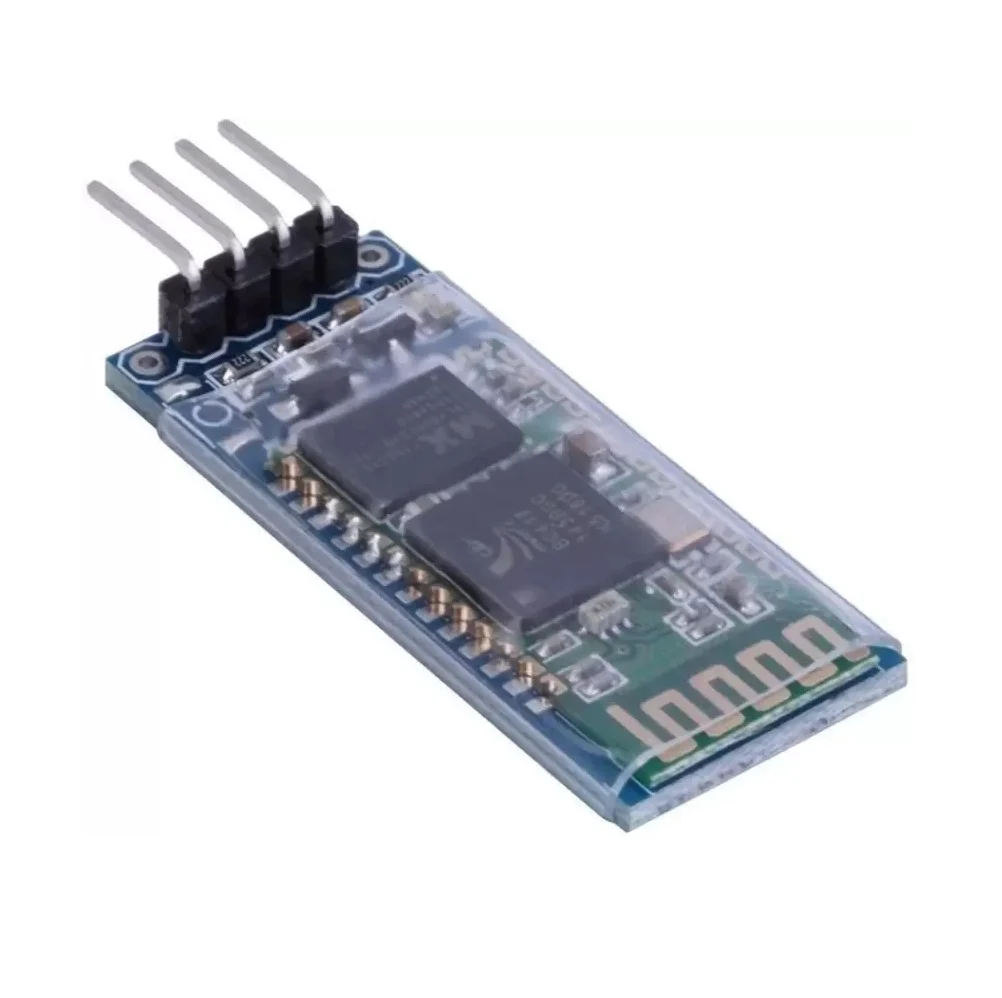

The HC-06 is a popular Bluetooth module designed to provide easy wireless serial connectivity for your devices. Operating exclusively in slave mode, this module simplifies data exchange with other Bluetooth-enabled devices, such as smartphones, computers, and more. It works just like a standard UART connection once paired, making it straightforward to integrate with Arduino and other microcontroller boards.
The HC-06 module includes a built-in 3.3V voltage regulator, allowing for easy access to key pins (VCC, GND, TXD, RXD). Powered by the CSR BC4 chip and supporting Bluetooth V2.0 + EDR, it allows you to configure the baud rate, device name, and pairing password using AT commands when not connected to another Bluetooth device. As a slave module, it can be paired with Bluetooth master devices like computers, mobile phones, PDAs, and more, enabling seamless wireless communication in your projects.
Features
- Bases at CSR BC04 Bluetooth technology.
- with build-in 2.4GHz PCB antenna
- Its at the Bluetooth class 2 power level.
- Range test: 10 meters
- Operating voltage: 3.3V to 6V DC
- Operating current in pairing is in the range of 30~40mA.
- Operating current in communication is 8mA.
- Interface via UART, default baud rate at 9600 bps
- Operating temperature range: -25 C +75C
- Dimensions 27mm13mm2.2mm
Specification:
| Model | HC-06 (Slave Mode only) |
|---|---|
| Interface | VCC- GND- TXD- RXD |
| Nominal Operating Voltage | 3.3V DC |
| Input Votage Range | 3.6V to 6V (Never over 7V) |
| Input current | 30mA (unpaired), 10mA(paired) |
| Effective Distance | 10M (open area) |
| Communication Format | 8 data bits / 1 stop bit / without parity |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 6 × 4 × 2 cm |
Package Includes
1 x HC-06 4pin Bluetooth Module B GRADE
