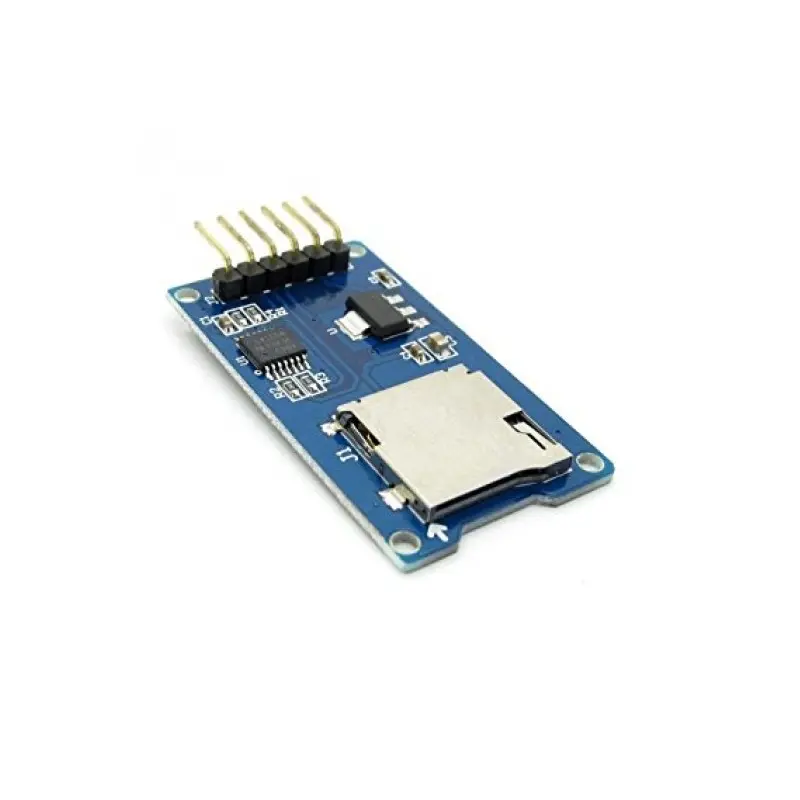

Micro SD Card Reader Module
- Power supply: 4.5V – 5.5V, 3.3V voltage regulator circuit board
- Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm
- Control Interface: GND, VCC, MISO, MOSI, SCK, CS
- Size: 45 x 28mm
- Net weight: 6g
Product description:
Introducing the Micro SD Card Reader Module, a versatile solution for seamless data transfer between microcontrollers and standard SD cards. Also known as the Micro SD Adapter, this module is compatible with Arduino and other microcontroller platforms, making it essential for a wide range of projects.
With a user-friendly pinout, this module supports the SPI interface, ensuring compatibility with any SD card. Its dual I/O voltage support allows easy integration with both 5V and 3.3V power supplies, making it suitable for popular development boards like the Arduino UNO and Mega. The built-in 3.3V regulator circuit ensures stable power delivery for reliable communication between your microcontroller and the SD card.
Featuring six accessible pins (GND, VCC, MISO, MOSI, SCK, CS), connecting the module to your project is simple. GND connects to ground, VCC supplies power, while MISO, MOSI, and SCK manage SPI bus communication. The CS pin provides precise control over the SD card by acting as the chip select signal.
This module is perfect for various applications, including data loggers, audio systems, video players, and graphics displays. Its compact design and robust functionality make it a valuable addition to any electronics enthusiast’s toolkit.

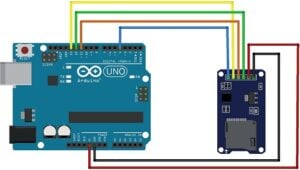

Interfacing with Arduino Uno:
Features:
- Supports Micro SD Card (<=2G) and Micro SDHC card (<=32G) (high-speed card)
- Dual I/O voltage support (5V or 3.3V) for versatile compatibility
- Stable power supply with 4.5V – 5.5V range and built-in 3.3V voltage regulator circuit
- Standard SPI interface for seamless communication with any SD card
- Control Interface includes GND, VCC, MISO, MOSI, SCK, CS for easy integration
- Compact size of 45 x 28mm and lightweight design with only 6g net weight
- Features 4 M2 screws positioning holes with a diameter of 2.2mm for easy mounting
Specifications:
| Input Supply Voltage (VDC) | 4.5 ~ 5.5 |
|---|---|
| Control Interface | GND, VCC, MISO, MOSI, SCK, CS |
| Voltage Regulator | 3.3V |
| PCB Size ( L x W ) mm | 40 x 24 |
| Mounting Hole size | M2 |
| Weight (g): | 4 |
Experience efficient data transfer with the Micro SD Card Reader Module, your reliable companion for a wide range of electronic projects.
Package Includes
- 1 x Micro SD Card Reader Module
