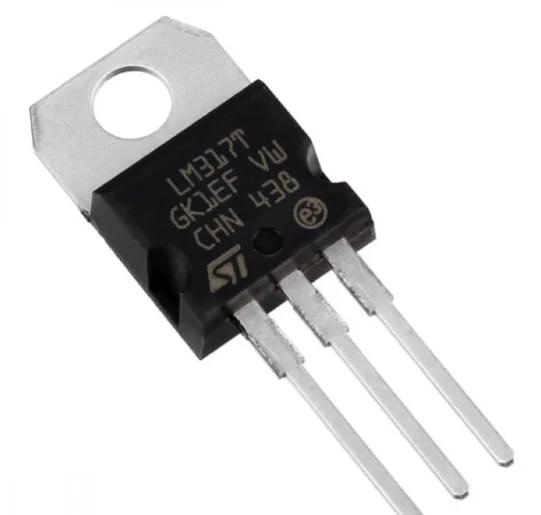

LM317 Voltage Regulator IC
The LM317 is an adjustable positive-voltage regulator capable of delivering between 1.25 V and 37 V output voltage. It can provide over 1.5 A of current, with the output voltage settable via two external resistors. This device boasts a low line regulation of 0.01% and a low load regulation of 0.1%. Additionally, it includes safety features like current limiting, thermal overload protection, and safe operating area protection, which remain operational even without the ADJUST terminal connected.
Features
Adjustable 3-terminal positive voltage regulator
The output voltage can be set to range from 1.25V to 37V
Output current is 1.5A
Maximum Input to output voltage difference is 40V, recommended 15V
Maximum output current when the voltage difference is 15V is 2.2A
Operating junction temperature is 125°C
Available in To-220, SOT223, TO263 Package
Pin Configuration:-
| Pin Number | Pen Name | Description |
| 1 | Adjust | This pin adjusts the output voltage |
| 2 | Output Voltage (Vout) | The regulated output voltage set by the adjust pin can be obtained from this pin |
| 3 | Input Voltage (Vin) | The input voltage which has to be regulated is given to this pin |
Specifications:
| Mounting Type | Through Hole |
|---|---|
| Product Series | LM317T |
| No. of Output | 1 |
| Output Type | Adjustable |
| Polarity | Positive |
| Input voltage | 3V to 40V |
| Output Voltage(V) | 1.2 ~ 37 |
| Max. Output Current (A) | 1.5 |
| Operating Temperature (°C) | 0 to 125 |
| Load Regulation | 0.1% |
| Line Regulation | 0.01% |
| Length (mm): | 10 |
| Width (mm): | 4.5 |
| Height (mm): | 15.3 |
| Weight (g): | 1 (approx) |
Applications:
Power Bank Solutions
Motor Controls
Power Supply
Desktop PCs
DIY Prototyping
