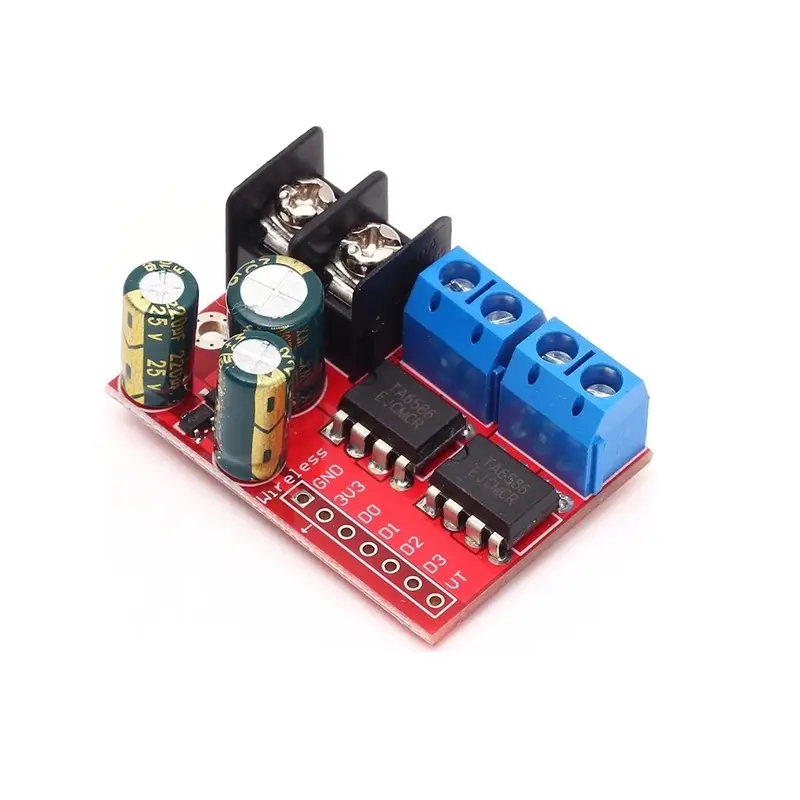

TA6586-Based Motor Driver Module

TA6586-Based Motor Driver Module

(0 review)
SpecificationDetails
Driver ICTA6586
Operating Voltage ($V_{CC}$)3.0V to 14V
Logic Input Voltage2.2V to 6.0V
Continuous Current5A
Peak Current8A
Standby Current< 2$\mu$A
Control Interface2-Pin TTL (Forward/Reverse)
PCB Dimensions21mm x 21mm
Price
₹ 211.86 ₹ 211.86
(Tax included)

Barcode: 766347

Product Description

The TA6586 Motor Driver is a "power-on-chip" solution for low-to-medium voltage motor control. Unlike larger drivers like the L298N, the TA6586 uses internal MOSFETs which have a significantly lower voltage drop, meaning more power reaches your motor and less is wasted as heat. The module is designed to interface directly with microcontrollers like Arduino, ESP32, or Raspberry Pi without the need for external level shifters. It supports Pulse Width Modulation (PWM) for speed control and includes an automatic "Brake" function when both control pins are pulled HIGH.

Key Features

  • High Current Capability: Handles up to 5A continuous load, suitable for high-torque toy motors.

  • Ultra-Low Standby Power: Consumes almost zero power when the motor is not running, extending battery life.

  • Comprehensive Protection: Features built-in thermal shutdown and short-circuit protection.

  • Integrated Flyback Diodes: Protects the internal circuitry from inductive back-EMF spikes.

  • Compact Footprint: Miniature design allows for integration into tight enclosures and small-scale models.

Technical Details

  • Input Logic (IN1, IN2):

    • IN1=H, IN2=L → Forward

    • IN1=L, IN2=H → Reverse

    • IN1=H, IN2=H → Brake (Short Circuit)

    • IN1=L, IN2=L → Standby (Coasting)

  • Frequency Support: Optimized for PWM frequencies up to 20kHz for silent motor operation.

Prototyping and Engineering Tips from Robogears

  • Speed Control via PWM: To control the speed of your motor, apply a PWM signal to one of the input pins while keeping the other pin LOW. For example, applying PWM to IN1 and keeping IN2 at 0V will drive the motor forward at a variable speed.

  • The "Brake" vs. "Coast" Logic: If your robot needs to stop instantly at a specific point, use the Brake mode (Both pins HIGH). If the robot should roll to a stop naturally to save mechanical wear, use the Standby mode (Both pins LOW).

  • Capacitor Recommendation: While the module has internal protection, we recommend soldering a $0.1\mu F$ ceramic capacitor across the terminals of your DC motor. This reduces electrical noise that can interfere with the I2C or Serial communication of your microcontroller.

  • Heat Dissipation: Although MOSFET-based, the module can get warm at its 5A limit. Ensure there is adequate airflow or a small adhesive heatsink if running the motor at high loads for more than a few minutes.

Package Includes

  • 1 x TA6586 Based Motor Driver Module

Disclaimer

Do not exceed the 14V maximum supply voltage, as this will result in immediate IC failure. Always verify that your motor's stall current does not exceed the 8A peak rating of the driver to prevent triggering the thermal protection circuit.
