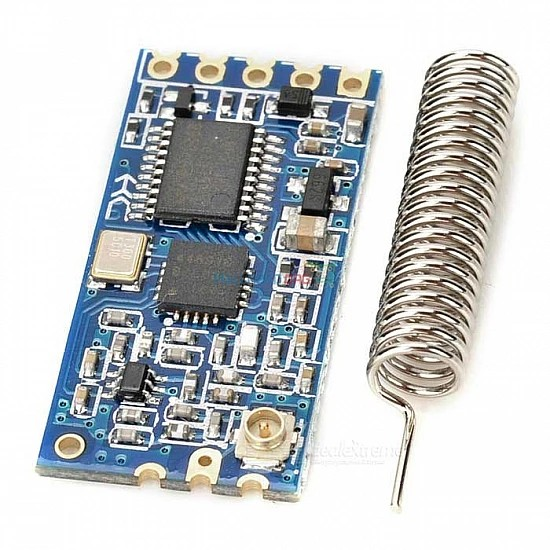

HC-12 433 SI4463 Wireless Serial Module

HC-12 433 SI4463 Wireless Serial Module

The HC-12 Wireless RF UART Communication Module is an advanced, multi-channel embedded wireless data transmission module. Operating in the 433.4 – 473.0 MHz frequency range, it allows users to set communication channels with a step size of 400 kHz, offering a total of 100 channels. The module boasts a maximum transmit power of 100mW (20dBm) and a receiver sensitivity of -116dBm at a baud rate of 5000bps, providing an effective communication range of up to 500 meters.

The module is encapsulated using a stamped hole method, making it easy to solder. Its compact size of 27.4mm x 13.2mm x 4mm (including the antenna base but excluding the spring antenna) allows for convenient integration into application systems. It features a PCB antenna connector (ANT1) that supports coaxial cables for external 433MHz antennas, as well as an antenna soldering hole (ANT2) for attaching a spring antenna, giving users flexibility in antenna choice based on their needs.

The HC-12 module includes an integrated MCU, so no additional programming is required. Users can simply send and receive data, making it a plug-and-play solution for wireless communication applications.

Features

IEEE 802.15.4g compliant

Frequency range = 119–1050 MHz

Receive sensitivity = –126 dBm

Serial TTL (RX, TX, GND) interface

Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK

Max output power +20 dBm

Low active power consumption 10/13 mA RX, 18 mA TX at +10 dBm

Ultra low current powerdown modes 30 nA shutdown, 50 nA standby

Data rate = 100 bps to 1 Mbps

Fast wake and hop times

Highly configurable packet handler

TX and RX 64-byte FIFOs

Auto frequency control (AFC)

Automatic gain control (AGC)

Low BOM

Low battery detector

FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67, RCR STD-30

ETSI Class-I Operation with SAW

Specifications:

Package Includes:

1 x HC-12 433 SI4463 Wireless Serial Module
