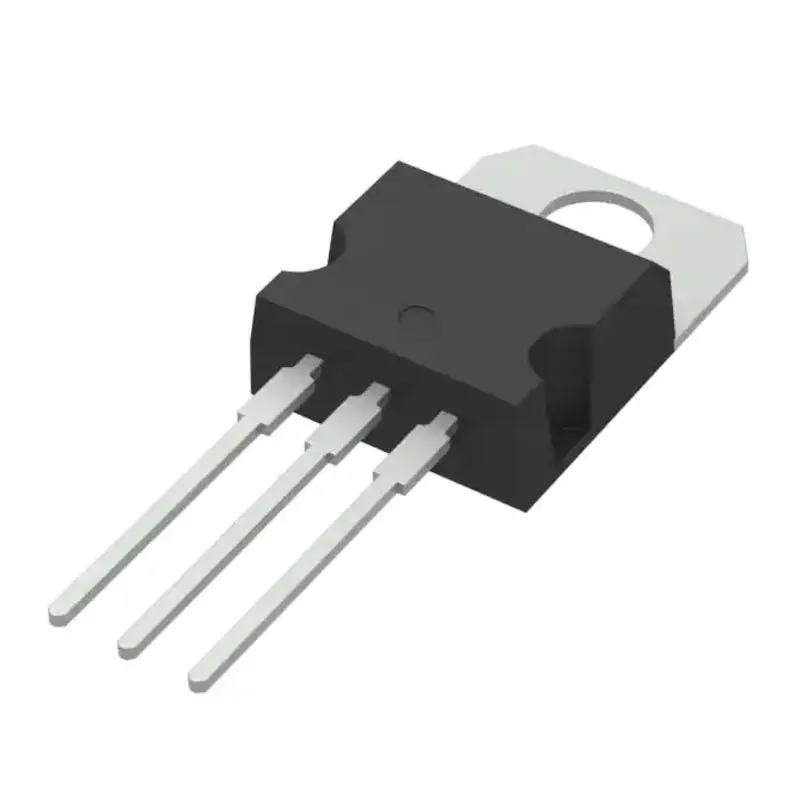

BTA16-600B 600V 16A Triac
Specifications:
- Peak Repetitive Off-State Voltage (V):600
- On-State RMS Current (A): 16
- Peak Gate Current (A): 4
- Peak Gate Power (W): 20
- Operating Junction Temperature Range (°C) : -40 to +125
- Storage condition:-40°C to +125 °C
Barcode:
904210
Description
It is a BTA16-600B 600V 16A Triac. This is suitable for general purpose mains power AC switching. This can be used as an ON/OFF function in applications such as static relays, heating regulation, or induction motor starting circuits. The triac is also recommended for phase control operations in light dimmers and appliance motors speed controllers.
Package Includes:
1 x BTA16-600B 600V 16A Triac.
