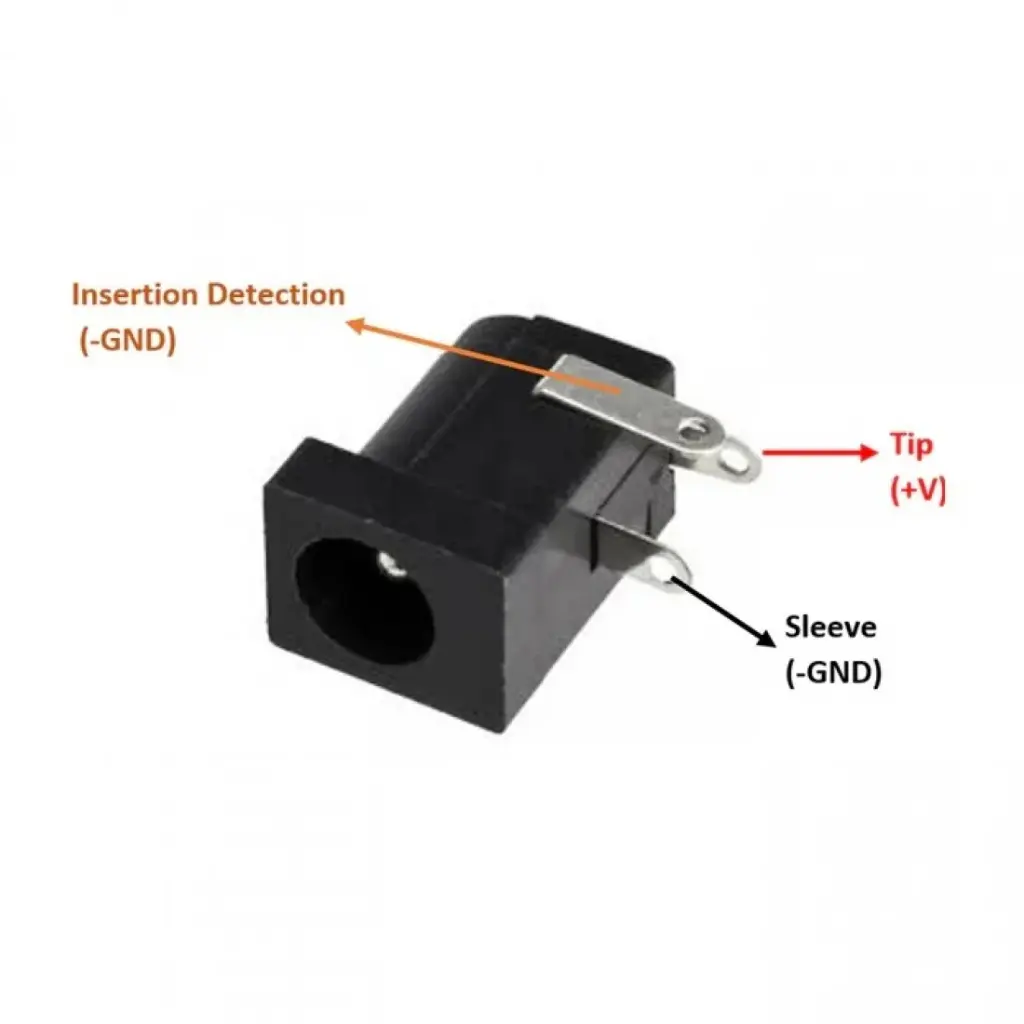

DC Power Jack Female Socket (PCB Mounting)
- Plug Type: 5.5 x 2.5mm
- Pins: 3
- Temperature: 30°C ~ +70°C.
- Rated load: up to DC 30V / 1.0A.
- Contact resistance: ≤0.03.
- Insulation resistance: ≥100 MΩ.
Product Description
- The DC-005 Female DC Power Jack Socket (5.5×2.5mm) is a robust and versatile connector designed to work with 5.5mm male power jacks. Its compact 2.1×5.5mm size allows for easy integration into PCBs, making it an excellent choice for DIY electronics, robotics, and various other applications.
- This power jack supports DC voltage inputs up to 30V, ensuring a stable and reliable power connection for a wide array of electronic projects that require consistent voltage supply.
Features
- Temperature: -30°C ~ +70°C.
- Rated load: up to DC 30V / 1.0A.
- Withstand voltage: AC 500V (50Hz)/min.
- Actuating force: 3N – 20N.
Specifications:
| Item Type: | DC Jack |
| Rated Current (A) | 1 |
| Rated Voltage (V): | 30 |
| Allowed Wire Size (AWG): | 20 ~ 18 |
| DC Jack OD x ID (mm) | 5.5 x 2.1 |
| No. of Pin | 3 |
| Operating Temperature (°C) | -30 ~ +70 |
| Rated Speed (RPM) | DC 30V / 1.0A |
| Contact Resistance | ?0.03 |
| Insulation Resistance (Mohm) | ?100 |
| Center Pole Diameter (mm ) | 2.1 |
| Compatibility | 5.5 mm jack |
Package Includes
- 1 x Female DC Power Jack Barrel Connector Plug
