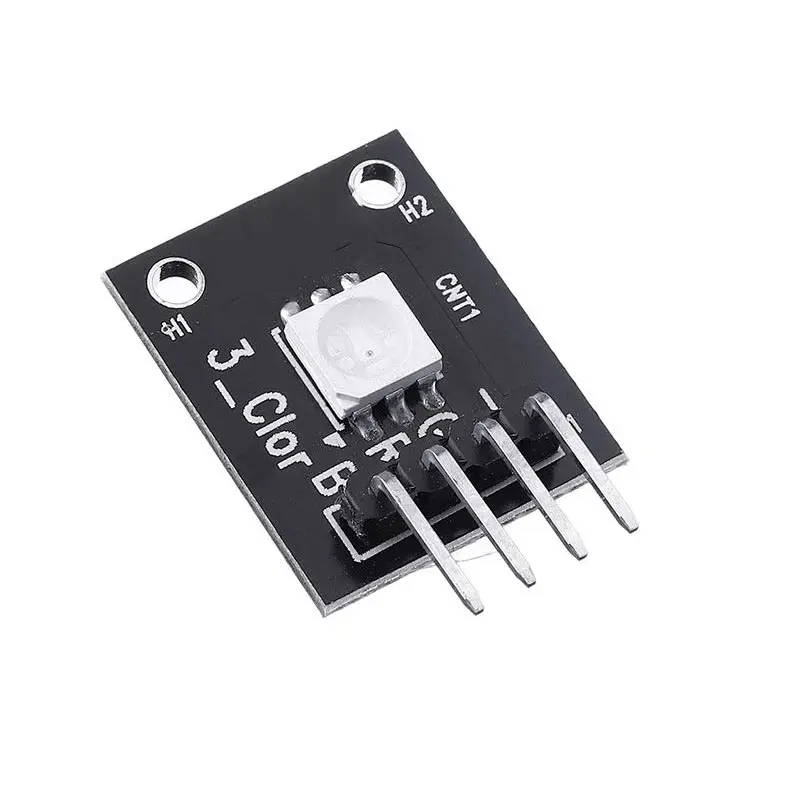

SMD 3-Colour RGB LED Module – High-Brightness Full-Colour Light Module for Arduino, Raspberry Pi, and ESP32 Robotics and Decorative Lighting Projects

SMD 3-Colour RGB LED Module – High-Brightness Full-Colour Light Module for Arduino, Raspberry Pi, and ESP32 Robotics and Decorative Lighting Projects

(0 review)
ParameterDetailed Specification
LED Type5050 SMD RGB LED
Operating Voltage3.3V to 5V DC
InterfaceCommon Cathode (-)
Input PinsR, G, B, - (GND)
Max Current~20mA per color channel
Luminous IntensityRed: 500mcd, Green: 1200mcd, Blue: 300mcd
Beam Angle120 Degrees
Price
₹ 29.66 ₹ 29.66
(Tax included)

Product Description

Bring a spectrum of light to your projects with the SMD 3-Color RGB LED Module. This compact breakout board features a high-intensity 5050 SMD LED capable of producing almost any color by mixing Red, Green, and Blue light at varying intensities. At Robogears, we recommend this module for status indicators, decorative ambient lighting, and color-coding robotic behaviors. Unlike standard through-hole LEDs, the SMD 5050 provides a wider viewing angle and a more uniform color blend. Whether you are building a mood lamp or a multi-state alarm system at your Pimpri workshop, this breadboard-friendly module offers an easy way to integrate full-color illumination without complex wiring.

Detailed Key Features

  • Full-Color Spectrum: By using PWM (Pulse Width Modulation), you can control the brightness of each internal LED to create millions of custom colors.

  • Integrated Current Limiting: (Note: Most variants include small SMD resistors; if not, external 220-ohm resistors are required to protect the LED).

  • Common Cathode Design: The negative terminal is shared, making it simple to control the R, G, and B pins using the digital/PWM output pins of your microcontroller.

  • Ultra-Compact Footprint: The tiny SMD LED is mounted on a rigid PCB with pre-soldered headers, perfect for tight spaces in robotic chassis.

  • Plug-and-Play Compatibility: Works seamlessly with all 3.3V and 5V logic systems, including Arduino, ESP8266, and STM32.

All Technical Details

  • Pin Definition:

    • R: Red Light Control.

    • G: Green Light Control.

    • B: Blue Light Control.

    • - (GND): Common Negative (Cathode).

  • PWM Support: Required for color mixing (e.g., 50% Red + 50% Blue = Purple).

  • Applications: Notification lights, light-up wearable tech, toy electronics, and scientific color-mixing experiments.

Prototyping & Engineering Tips (Robogears Exclusive)

  • The "PWM" Rule: At our Pimpri facility, we always remind makers that to get smooth color transitions, you must connect the R, G, and B pins to PWM-enabled pins on your Arduino (marked with a '~' symbol, like 3, 5, 6, 9, 10, or 11).

  • Voltage Drop Check: Different colors have different forward voltages. Red typically drops around 1.8V, while Blue and Green drop around 3.0V. If you find one color is much brighter than the others, adjust your code or resistor values to balance the intensity.

  • Diffuser Trick: SMD LEDs are very bright and "pointy." If you want a soft, glowing effect rather than a harsh dot of light, place a piece of frosted acrylic or a 3D-printed white "cap" over the module.

  • Common Anode vs Cathode: Ensure your code matches the hardware. For this Common Cathode module, setting a pin to HIGH (255) turns the color ON. (Common Anode modules work the opposite way).

Package Includes

  • 1 x SMD 3-Color RGB LED Module

  • 1 x 4-pin Male Header (Pre-soldered)

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically Blue or Black) or the presence of on-board resistors may vary between batches, but the 5050 SMD RGB performance and 3.3V-5V compatibility remain as described.
