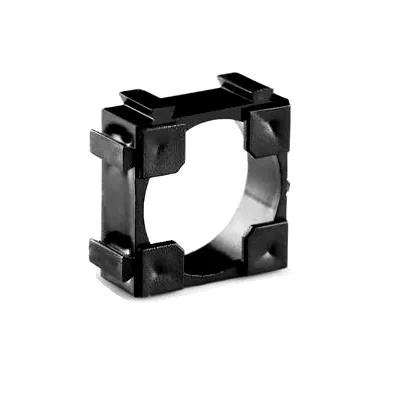

Battery Holder / Battery Spacer for 18650 1 x 1 with 18.4mm Bore Diameter

Battery Holder / Battery Spacer for 18650 1 x 1 with 18.4mm Bore Diameter

(0 review)
ComponentCompatible CellMaterialStructureHeat DissipationSlot DiameterType
Value18650 Li-ionHigh-Density ABSInterlockingAir Gap Design18.3 - 18.5 mmSingle Slot
ComponentFlame RetardantColorMax ConfigVibration ResistanceWeightDimensions
ValueUL94-V0 RatedBlackModular / UnlimitedHigh1.5 grams20 x 20 x 8 mm
Price
₹ 5.71 ₹ 5.71
(Tax included)

Product Description The 18650 Battery Spacer is a modular, interlocking bracket designed for assembling custom lithium-ion battery packs with professional-grade stability. Unlike traditional glue-based assembly, these spacers create a rigid mechanical structure that maintains precise 20mm centre-to-centre spacing between cells. This gap is critical for passive air cooling, preventing thermal runaway during high-discharge applications. Each unit features "male" and "female" dovetail slots on all four sides, allowing you to snap multiple spacers together to form any configuration—from a simple 1S2P pack to massive 10S10P arrays for electric vehicles or power walls.

Key Features

  • Modular Interlocking System: Innovative dovetail edges allow for tool-free assembly of cells into any geometric shape or size.

  • Enhanced Thermal Management: Naturally creates an air gap between cells, significantly improving heat dissipation compared to taped packs.

  • High Impact Resistance: Molded from crack-resistant ABS plastic that protects cells from mechanical shocks and vibrations in mobile robots.

  • Universal Fit: Precision-engineered 18.4mm hole diameter ensures a snug, slip-free fit for all standard 18650 lithium-ion cells.

  • Flame Retardant Material: Constructed from UL94-V0 rated plastic to provide an extra layer of safety in high-power energy storage systems.

Technical Details

  • Cell Pitch: Maintains a consistent 20.2mm pitch, providing the perfect clearance for spot-welding standard 0.15mm nickel strips.

  • Vertical Stability: The 8mm height provides sufficient lateral support to prevent cells from tilting or shifting during assembly.

  • High Temperature Tolerance: Engineered to withstand ambient temperatures up to 80°C without deformation or losing structural integrity.

  • Chemical Resistance: ABS material is resistant to common battery electrolyte leaks and workshop cleaning agents.

  • Lightweight Design: Adds negligible weight to the battery pack, making it ideal for drones and portable power electronics.

  • Precision Molding: Zero-flash injection molding ensures smooth edges that won't tear the delicate PVC insulation of the battery cells.

  • Alignment Accuracy: Guarantees perfectly parallel cell orientation, which is essential for uniform current distribution across busbars.

  • Versatile Configuration: Compatible with both square (grid) and staggered (honeycomb) packing layouts.

  • Internal Ribbing: Features small internal grip ribs to compensate for minor variations in battery diameter across different brands.

  • Standardized Sizing: 20mm outer dimension allows for easy calculation of the total battery pack footprint.

  • Tool-Free Locking: Snap-lock mechanism provides a tactile "click" once the spacers are securely joined.

  • Safety Isolation: Prevents physical contact between the metal casings of adjacent cells, reducing the risk of internal short circuits.

  • DIY Friendly: Optimized for use with handheld spot welders and pre-cut nickel strips.

  • Industrial Durability: Built to withstand the compression forces of heat-shrink tubing and external battery enclosures.

  • Non-Conductive: Pure plastic construction ensures zero electrical interference with the battery terminals.

Prototyping and Engineering Tips from Robogears

  • 9V Battery Use: This product is exclusively for 18650 cells. If you need a holder for a 9V battery, we recommend a 9V Battery Plastic Enclosure with ON/OFF Switch.

  • 18650 Cell: When using these spacers, always use two spacers per cell (one at the top and one at the bottom). This ensures the cells are perfectly parallel, which is vital before you start spot welding your nickel strips.

  • IC & Capacitor Tip: If you are building a high-capacity pack for an e-bike, add a 100k NTC Thermistor between the spacers. This allows your BMS (Battery Management System) to monitor the internal temperature of the pack for safety.

  • Related Products: We recommend pairing this with our 18650 Li-ion Cells, Pure Nickel Strips (0.15mm), and Battery Heat Shrink Film.

Package Includes

  • 1 x 18650 Battery Spacer (Single Cell Holder).

Disclaimer Image is for ilastration purpose only 2-3 lines. Two spacers (top and bottom) are required for each cell to ensure structural stability. Ensure the spacers are fully snapped together before inserting the batteries to avoid misalignment.
