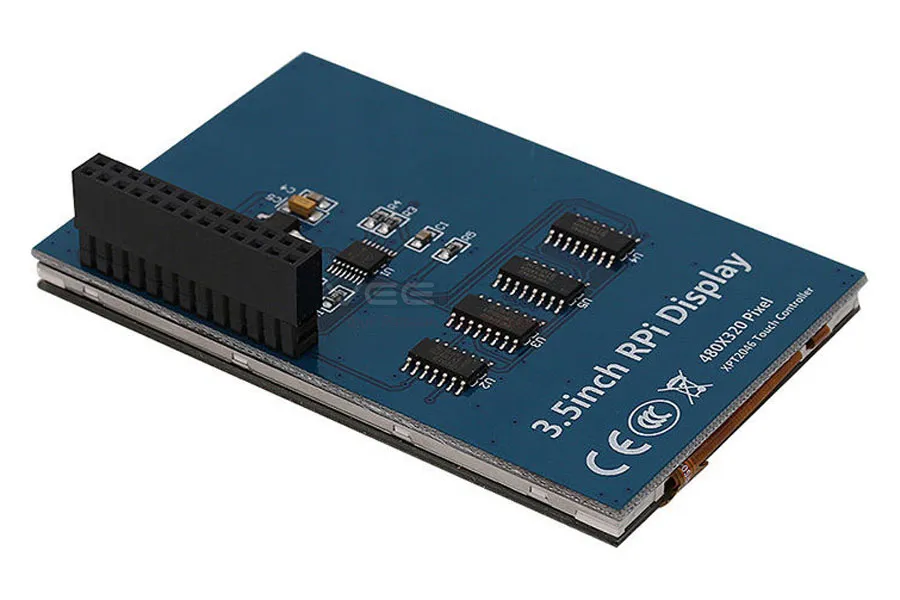

3.5″ Touch Screen LCD Raspberry Pi Display

(0 review)
  1. LCD Type: TFT.
  2. Touch Screen Type: Resistive Screen.
  3. Backlight: Yes, LED.
  4. Resolution (Pixel): 320 x 480.
  5. Aspect Ratio: 8:5.
  6. Touch Controller: XPT2046.
Price
₹ 942.86 ₹ 942.86
(Tax included)

Product Description The 3.5 inch Raspberry Pi Touch Screen is a compact, high-quality display designed to plug directly into the GPIO header of any Raspberry Pi model. With a 480x320 resolution, it provides a crisp interface for Raspbian, Kali Linux, or custom Python-based GUIs. This display utilizes a high-speed SPI interface (up to 125MHz) to ensure smooth frame rates, making it ideal for portable projects, mini-consoles, or server monitoring dashboards where a full-sized HDMI monitor is impractical.

Key Features

  • Seamless GPIO Integration: Plugs directly onto the Raspberry Pi pins, providing power and data without the need for an external power source or bulky HDMI cables.

  • Responsive Resistive Touch: Allows for precise interaction using the included stylus, perfect for navigating small menus and virtual keyboards.

  • Software Support: Fully compatible with official Raspberry Pi OS (Raspbian), Ubuntu, and RetroPie via easy-to-install drivers.

  • Customizable Backlight: Features an onboard hardware switch or software-controllable brightness to optimize power consumption for battery-operated builds.

  • High-Speed SPI: Optimized for performance, capable of pushing higher frame rates than standard generic SPI screens.

Technical Details

  • Hardware Compatibility: Works with Raspberry Pi 4B, 3B+, 3B, 2B, and even the Pi Zero (via jumper wires or headers).

  • Driver Architecture: Uses the LCD-show driver package, which allows for quick switching between the LCD and HDMI output via terminal commands.

  • Pixel Density: Offers a sharp viewing experience for its size, suitable for text-heavy terminal work or basic image viewing.

  • Touch Controller: Integrated XPT2046 touch controller chip ensures accurate coordinate mapping after a simple calibration.

  • Power Efficiency: Draws only 160mA from the Pi's 5V rail, ensuring your system remains stable even when using a standard 2.5A power supply.

  • Physical Protection: The PCB acts as a protective shield for the top of the Pi, and the screen features a durable resistive film.

  • GPIO Pass-through: While it uses the SPI pins, several GPIO pins remain accessible for connecting additional sensors or buttons.

  • Mounting Security: Aligning the headers ensures a secure mechanical fit that won't vibrate loose in mobile robotics applications.

  • Refresh Rate Tuning: The driver supports overclocking the SPI bus to achieve up to 60fps for simple UI animations.

  • Color Depth: 16-bit High Color (65K colors) provides vibrant icons and clear data visualizations.

  • Stylus Accuracy: High-resolution resistive overlay prevents "ghost touches" often found in cheaper capacitive alternatives.

  • Wide Viewing Angle: Optimized for top-down or slight-angle viewing common in desktop project enclosures.

  • Heat Dissipation: Designed with a slim profile to allow airflow to the Pi's CPU, though heatsinks are still recommended for Pi 4 users.

  • System Integration: Can be configured as a primary display or a secondary status monitor using FBCP (FrameBuffer Copy).

  • Compact Footprint: Matches the credit-card size of the Raspberry Pi perfectly for a sleek, integrated look.

Prototyping and Engineering Tips from Robogears

  • 9V Battery Use: Never use a 9V battery to power the Raspberry Pi or this display. The Pi requires a precise 5.1V supply. For portable use, we recommend a Power Bank or a Lithium Battery Shield that outputs a regulated 5V.

  • 18650 Cell: Use two 18650 cells with a DC-DC Buck Converter (Step Down) tuned to 5.1V. This setup provides the high current (at least 3A) required by a Raspberry Pi 4 with the display attached.

  • IC & Capacitor Tip: If you notice a "Lightning Bolt" icon on your screen, it means your power supply is sagging. Add a 1000uF Electrolytic Capacitor across the 5V and GND pins of the Pi to handle the sudden current spikes when the backlight turns on.

  • Related Products: We recommend pairing this with our Raspberry Pi 4B (8GB), Heatsink & Fan Kits, and 32GB Class 10 MicroSD Cards.

Package Includes

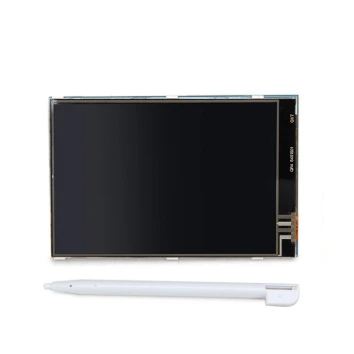

  • 1 x 3.5 inch Touch Screen LCD for Raspberry Pi.

  • 1 x Resistive Touch Stylus.

Disclaimer Image is for ilastration purpose only 2-3 lines. Installation of drivers is required for the display to function; it will show a white screen until the driver is configured. Ensure the Pi is powered off before connecting or disconnecting the shield.
