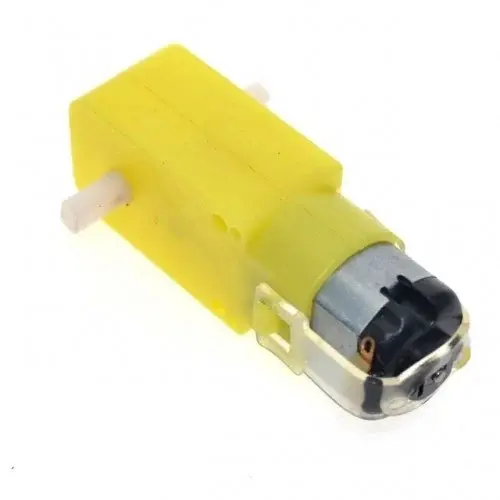

100 RPM Dual Shaft Straight BO Motor Yellow Plastic Gear Motor for Smart Car Robot

100 RPM Dual Shaft Straight BO Motor Yellow Plastic Gear Motor for Smart Car Robot

(0 review)
ComponentSpecification
Operating Voltage3V to 9V DC
Rated Voltage6V DC
No-Load Speed100 RPM (at 6V)
No-Load Current150mA to 200mA
Shaft TypeDual Shaft (Straight)
Gear MaterialHigh-Quality Plastic
WeightApprox. 30g
Stall Torque~0.8 kg-cm
Price
₹ 55.08 ₹ 55.08
(Tax included)

Product Description The 100 RPM Dual Shaft Straight Battery Operated (BO) motor is the backbone of beginner and intermediate robotics. Often referred to as a "Yellow Gear Motor," it features a built-in reduction gearbox that converts high-speed DC motor rotation into a stable, high-torque output of 100 RPM. The dual shaft design is particularly useful, allowing you to mount a wheel on one side and an encoder disk on the other for precise speed and distance tracking, making it the perfect choice for line-following or obstacle-avoiding robots.

Key Features

  • Dual shaft output for simultaneous wheel and encoder mounting.

  • Lightweight plastic gearbox reduces overall robot weight for better speed.

  • Broad voltage compatibility (3V to 9V) allows for various battery configurations.

  • Standard mounting holes compatible with most DIY robot chassis.

  • Cost-effective and durable for educational and prototyping purposes.

Technical Details

  • Operating Voltage Range: 3.0V – 9.0V DC

  • Rated RPM: 100 RPM at 6V DC

  • No-Load Current: ≤200mA

  • Stall Current: ~600mA (at 6V)

  • Reduction Ratio: 1:48

  • Output Shaft: 5.5mm flattened (D-type)

  • Operating Temperature: -10 to +50 degrees Celsius

  • Dimensions: ~70mm x 22mm x 18.5mm

Prototyping and Engineering Tips from Robogears

  • Driver Selection: Use the L298N or L293D motor driver modules to control these motors. They provide the necessary current and allow you to reverse the direction easily via your microcontroller.

  • Speed Monitoring: Utilize the second shaft to attach an IR slotted optical encoder. This enables your robot to measure RPM and travel distance accurately (odometry).

  • Power Supply: For the best performance, power these motors with 6V (4x AA batteries or a 2S Li-ion battery with a regulator). Running them at 3V will result in very low torque, which might not be enough to move a heavy chassis.

  • Interference: Solder a 0.1uF ceramic capacitor across the motor terminals to suppress electrical noise that could interfere with your sensors or microcontroller logic.

Package Includes

  • 1 x 100 RPM Dual Shaft Straight BO Motor

Disclaimer Product images are shown for illustrative purposes only and may vary from the actual product due to manufacturing changes, lighting conditions during photography, or batch updates. While we strive for accuracy, technical specifications are subject to change by the manufacturer without prior notice. Please ensure your motor driver can handle the stall current of the motor to prevent hardware damage. Always check gear alignment before applying full power.
