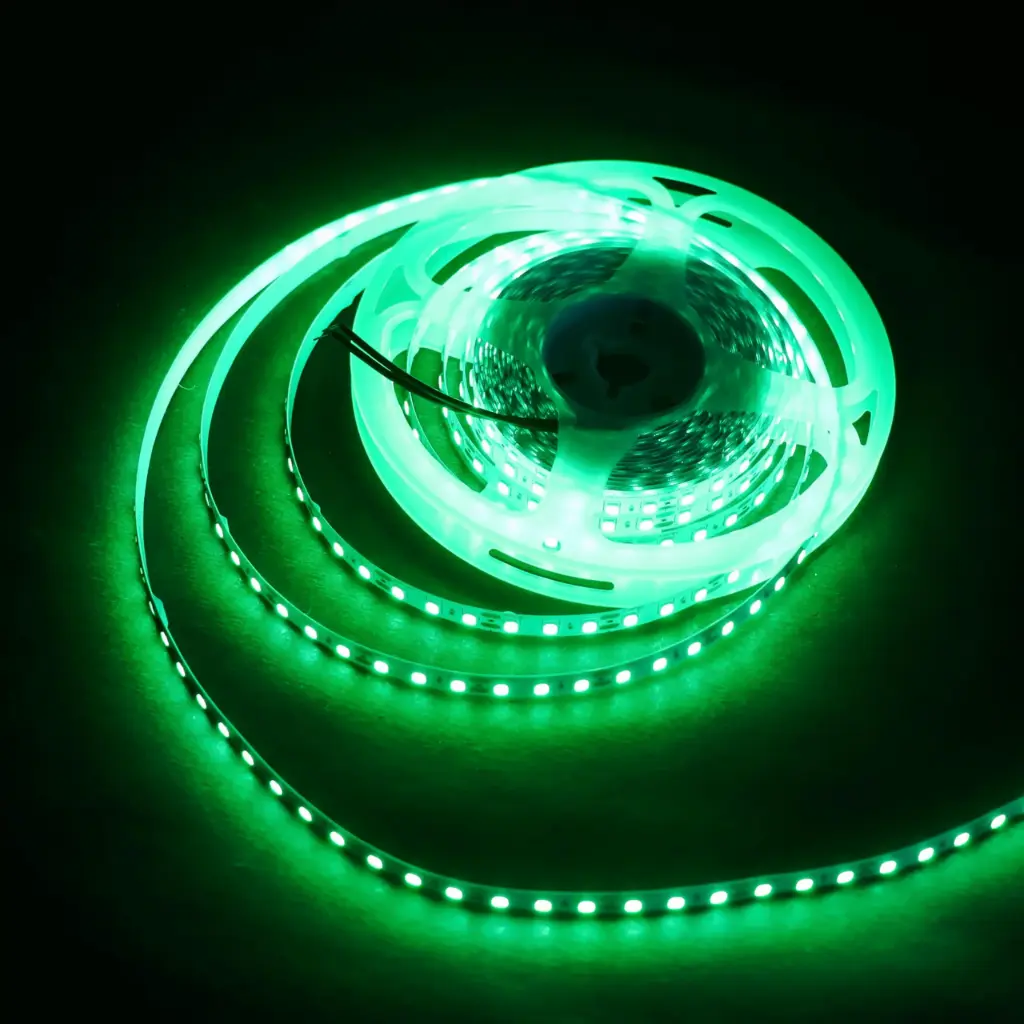

12V Green LED Strip Light 120 LEDs/mtr 5mm Ultra-Slim Flexible Roll 5 Mter

12V Green LED Strip Light 120 LEDs/mtr 5mm Ultra-Slim Flexible Roll 5 Mter

(0 review)
ComponentSpecification
LED TypeHigh-Efficiency SMD
LED Density120 LEDs per Meter
Strip Width5mm (Ultra-Slim)
ColorEmerald Green
Operating Voltage12V DC
Power ConsumptionApprox. 9W – 12W per Meter
Cutting PointEvery 3 LEDs (approx. 2.5cm)
BackingSelf-Adhesive Tape
Price
₹ 177.97 ₹ 177.97
(Tax included)

Product Description The 12V Green LED Strip is a high-density, specialized lighting solution designed for vibrant accentuation and high-visibility displays. With 120 LEDs per meter, this strip produces a smooth, continuous line of emerald green light, significantly reducing the "spotty" look common in standard strips. Its ultra-slim 5mm profile makes it uniquely suited for installation in very narrow channels, tight gaps in robotic frames, and slim architectural profiles where space is at a premium.

Key Features

  • Ultra-Slim 5mm PCB: Perfectly engineered for narrow mounting spaces and thin edge-lighting applications.

  • High LED Density: 120 LEDs/m provides a seamless, brilliant green glow with high luminous output.

  • Vibrant Emerald Hue: Delivers a sharp, saturated green color ideal for status indicators, "Safe" zones, or custom aesthetics.

  • Flexible & Cuttable: Highly pliable for wrapping around curved surfaces; can be cut every 3 LEDs to fit your exact project length.

  • Professional Grade Adhesive: Features a strong self-adhesive backing for secure mounting on smooth surfaces.

Technical Details

  • Voltage: 12V DC (Regulated power supply recommended)

  • Waterproof Rating: IP20 (Indoor use recommended)

  • Viewing Angle: 120°

  • Operating Temp: -20°C to +60°C

Prototyping and Engineering Tips from Robogears

  • Status Signaling: Because of the high-density green light, this strip is excellent for "Go" or "Ready" indicators on large-scale automated machinery or industrial workstations.

  • Powering the Strip: For a full 5-meter roll, a 12V 5A power supply is the best choice to ensure consistent brightness throughout the length. For shorter runs, calculate roughly 1 Amp for every meter used.

  • Edge-Lighting Effect: This 5mm strip is ideal for lighting up clear acrylic panels. By hiding the strip in a 5mm slot at the bottom of the plastic, you can make the entire sheet or etched designs glow in a deep green.

  • Microcontroller Interface: To control this strip using an Arduino or ESP32, use a Logic-Level MOSFET (like the IRFZ44N). This allows you to switch the 12V power and use PWM to create fading or pulsing green light effects.

Package Includes

  • 1 x 5-Meter Roll (5mm Width) Green LED Strip

Disclaimer Images are for reference; actual green saturation may vary slightly by production batch. DO NOT connect directly to AC mains; a 12V DC adapter is required. Verify polarity (+ and -) before connecting to power.
