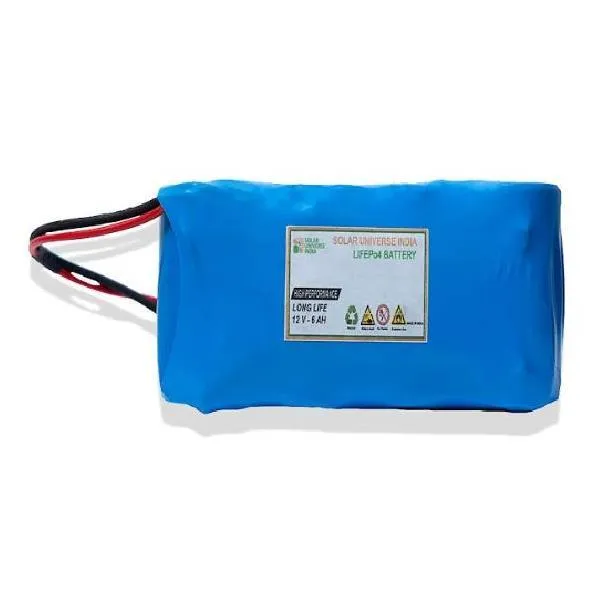

12.8V 6000mAh LiFePO4 Battery Pack Inbuilt BMS for Solar and EV Applications

12.8V 6000mAh LiFePO4 Battery Pack Inbuilt BMS for Solar and EV Applications

(0 review)
ComponentSpecification
ChemistryLithium Iron Phosphate (LiFePO4)
Configuration4S (4 Cells in Series)
Nominal Voltage12.8V
Full Charge Voltage14.4V to 14.6V
Capacity6000mAh (6Ah)
Energy Rating76.8 Wh
ProtectionInternal BMS (Overcharge/Discharge/Short-Circuit)
Price
₹ 1,677.97 ₹ 1,677.97
(Tax included)

Product Description

The 12.8V 6000mAh LiFePO4 battery pack is a premium, industrial-grade energy solution designed for long-term reliability. LiFePO4 chemistry is widely regarded as the safest lithium technology, offering superior thermal stability and an exceptional cycle life compared to standard Li-ion or Lead-Acid batteries. This pack features an integrated Battery Management System (BMS) that actively monitors cell health, making it a "drop-in" 12V replacement for solar street lights, small Electric Vehicles (EVs), medical equipment, and high-end robotic platforms requiring deep-cycle performance.

Key Features

  • Ultra-Long Cycle Life: Capable of 2000+ charge-discharge cycles with minimal capacity loss.

  • Enhanced Safety: Inherently stable LiFePO4 chemistry resists "thermal runaway" and fire even if punctured.

  • Integrated BMS: Sophisticated internal circuitry prevents over-charging, over-discharging, and over-current scenarios.

  • Stable Voltage Rail: Maintains a steady 12.8V output through 90% of its discharge cycle, unlike Lead-Acid batteries.

  • Eco-Friendly: Contains no toxic heavy metals like lead or cadmium, making it a greener choice for modern projects.

Technical Details

  • Standard Charge Current: 1A to 3A

  • Max Continuous Discharge: 6A (1C)

  • Discharge Cut-off Voltage: 10.0V

  • Operating Temperature: -20°C to +60°C

  • Weight: Approx. 600g to 750g (Significantly lighter than Lead-Acid)

  • Dimensions: Compact brick format (Check batch for exact mm footprint)

Prototyping and Engineering Tips from Robogears

  • Charging Compatibility: While this is a "12V" battery, ensure your charger is specifically rated for $LiFePO_{4}$ (14.4V-14.6V peak). Standard Lead-Acid chargers may not reach the correct voltage to fully top off the cells.

  • Deep Cycle Advantage: You can safely discharge this pack to 90% Depth of Discharge (DoD) without damaging the cells, whereas Lead-Acid batteries should typically not be discharged beyond 50%. This gives you more "usable" energy for the same capacity.

  • Solar Integration: Pair this with a 12V PWM or MPPT Solar Charge Controller that has a $LiFePO_{4}$ setting. It is the perfect upgrade for an outdoor weather station or automated irrigation system.

  • Weight Distribution: Because this pack is much lighter than a comparable 7Ah Lead-Acid battery, you may need to adjust the center of gravity in your robot or EV prototype to ensure proper traction and stability.

Package Includes

  • 1 x 12.8V 6000mAh LiFePO4 Battery Pack with Inbuilt BMS

Disclaimer

Images are for reference; actual casing material or wire terminals may vary by batch. Specifications subject to change by manufacturer. Do not short-circuit the output terminals despite the BMS protection.
