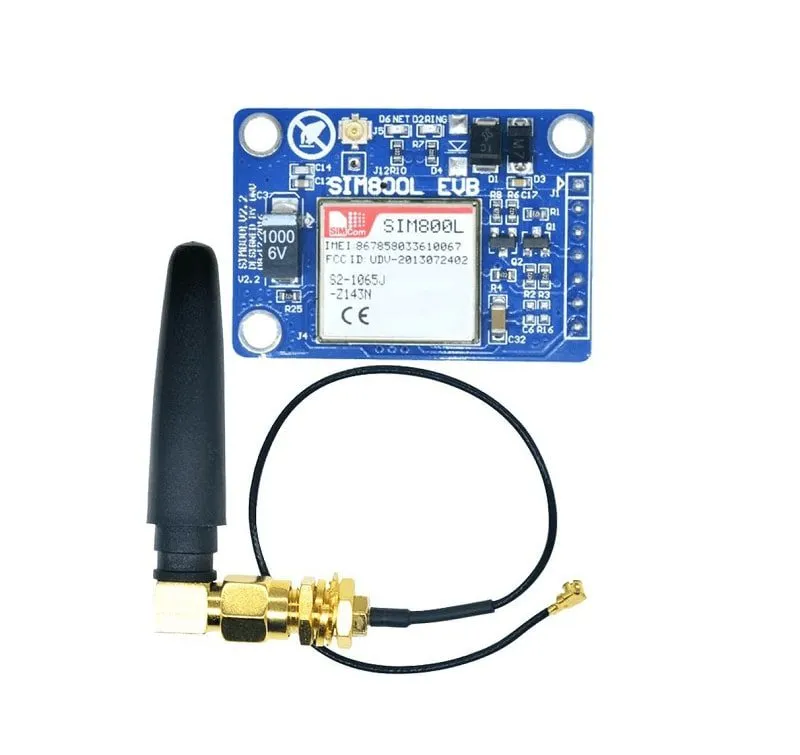

SIM800L V2 5V Quad-Band Wireless GSM GPRS Module with Antenna

SIM800L V2 5V Quad-Band Wireless GSM GPRS Module with Antenna

(0 review)
SpecificationDetails
Operating Voltage5V DC (Supports 5V to 20V via some pins/USB)
Logic Level5V and 3.3V TTL Compatible
FrequenciesQuad-Band 850/900/1800/1900 MHz
Peak Current2A (During transmission bursts)
Data SpeedGPRS Class 10 (Up to 85.6 kbps)
Antenna InterfaceIPX / U.FL Connector
Operating Temp-40°C to +85°C
Price
₹ 474.58 ₹ 474.58
(Tax included)

Product Description

The SIM800L V2 is a "plug-and-play" version of the popular SIM800L module. It is mounted on an EVB (Evaluation Board) that provides a Micro USB port for power and debugging. This module supports worldwide GSM networks and includes a high-gain IPX antenna to ensure a stable connection even in low-signal areas. Its compact footprint and built-in protection against high pressure and voltage loss make it ideal for industrial telemetry, remote monitoring, and IoT "smart" devices.

Key Features

  • Onboard 5V Regulation: Can be powered directly from an Arduino's 5V pin or a 5V power adapter, significantly simplifying the wiring.

  • Built-in Level Shifting: The TX/RX pins are 5V tolerant, allowing for direct UART connection to microcontrollers without a 4.7k resistor divider.

  • Micro USB Powering: Features a Micro USB port for easy testing using a standard phone charger or computer USB port.

  • Global Compatibility: Quad-band support ensures the module works on 2G networks across the globe.

  • Status LEDs: Includes onboard indicators for power and network registration (slow blink = connected, fast blink = searching).

Technical Details

  • Dimensions: 40.1mm x 27.1mm.

  • SIM Card: Standard Mini SIM slot (Push-Pull type).

  • Audio: Supports analog audio for handset/earphone connections.

Prototyping and Engineering Tips from Robogears

  • Power is Critical: While the module accepts 5V, GSM modules draw high current bursts (up to 2A) when searching for a network or sending data. A standard computer USB port might not provide enough current, leading to "brown-outs" where the module constantly reboots. Always use a 2A power adapter for stable performance.

  • Antenna Placement: Always connect the antenna before powering on the module. Operating without an antenna can damage the internal power amplifier due to signal reflection. Keep the antenna away from other metal parts to prevent interference.

  • The "VDD" Pin: On the V2 board, the VDD pin is used to match the TTL voltage. If you are using a 5V Arduino, connect VDD to 5V; if using a 3.3V ESP32, connect VDD to 3.3V.

  • Baud Rate Matching: The module defaults to "Auto-Bauding." It is a good practice to send a few "AT" commands at the start of your code to help the module synchronize its speed with your microcontroller.

Package Includes

  • 1 x SIM800L V2 5V Wireless GSM GPRS Module

  • 1 x High-Gain IPX Antenna

Disclaimer

This module requires a 2G-compatible SIM card. Ensure your local carrier supports 2G frequencies (850/900/1800/1900 MHz) before purchase.
