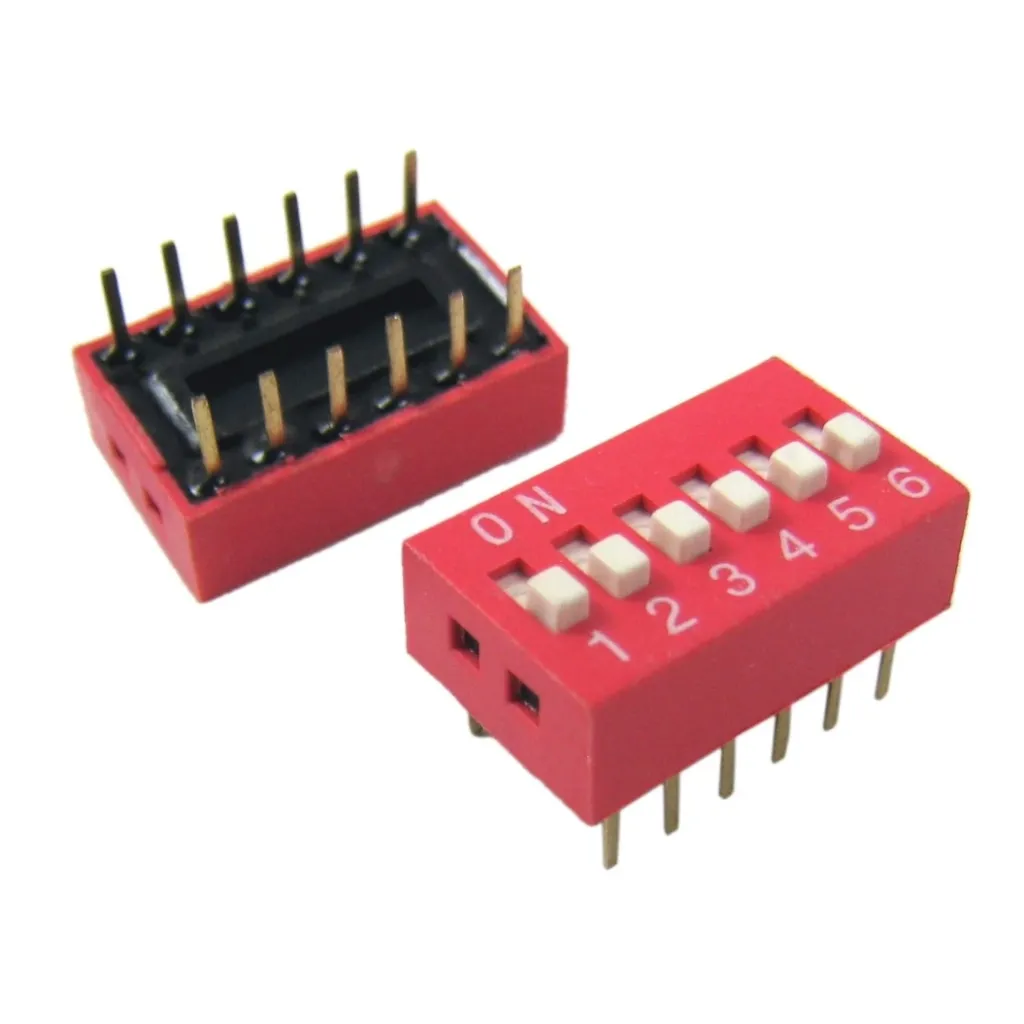

6-Way DIP Switch 8-Pin 2.54mm Red Flat Dial

Specification	Details
Switch Type	6-Way DIP Switch
Pin Count	8 Pins
Pin Pitch	2.54mm
Actuation Type	Flat Dial Latching Switch
Mounting Type	Through Hole PCB Mount
Application	Binary Configuration & Address Selection

Price

₹ 25.42

(Tax included)

Barcode: 1555134

The 6-Way DIP Switch (8-Pin) is a compact and reliable manual configuration switch designed for PCB-based address selection, binary coding, feature enabling, and operating mode configuration. Featuring a 2.54mm standard pin pitch and latching flat dial design, this switch provides stable switching performance for embedded systems, industrial electronics, communication equipment, and DIY electronic projects.

Key Features:

6 Independent Switch Positions allow multiple configuration combinations for electronic circuits.
Latching Flat Dial Mechanism maintains the selected position without continuous actuation.
Standard 2.54mm Pin Spacing ensures compatibility with common PCB layouts and prototyping boards.
Compact Through-Hole Design enables secure installation and long-term reliability.
Ideal for Binary Addressing commonly used in microcontroller, communication, and industrial control applications.

Technical Details:

Product Type: DIP Configuration Switch
Number of Switches: 6-Way
Pin Count: 8 Pins
Pin Pitch: 2.54mm
Switch Type: Latching
Actuator Style: Flat Dial
Mounting Type: Through Hole
Contact Type: Mechanical Switch Contacts
Body Color: Red
Configuration Method: Binary Selection
Suitable Applications:
- PCB Address Selection
- Device ID Configuration
- Embedded Systems
- Industrial Controllers
- Communication Equipment
- DIY Electronics Projects

Prototyping and Engineering Tips from Robogears:

Label switch positions clearly during development to avoid confusion while testing multiple configuration modes.
Use pull-up or pull-down resistors in microcontroller circuits to ensure stable logic levels when reading switch states.
Verify switch orientation before soldering to prevent reversed addressing or incorrect binary configuration.

Package Includes:

1 x 6-Way DIP Switch (8-Pin) – 2.54mm Pitch Red Flat Dial Latching Switch

Disclaimer:

This component is intended for electronic prototyping, industrial control systems, and educational projects. Ensure the switch configuration is set correctly before powering the circuit. Product appearance may vary slightly depending on manufacturing batch while maintaining the same electrical functionality.
