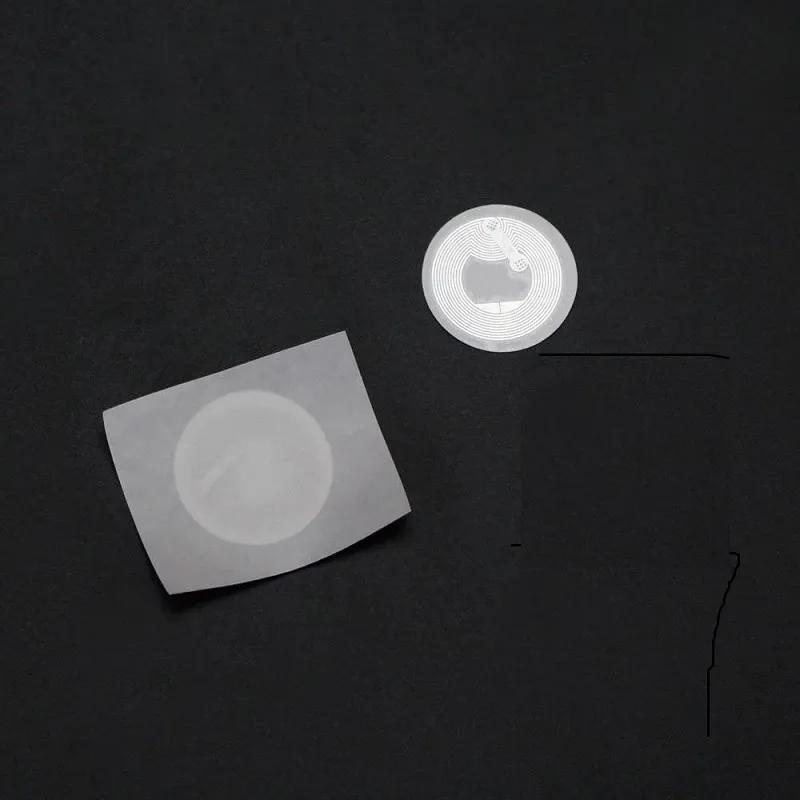

NTAG213 13.56MHz NFC Sticker Tag 144 Bytes Rewritable Contactless Adhesive Label

NTAG213 13.56MHz NFC Sticker Tag 144 Bytes Rewritable Contactless Adhesive Label

(0 review)
FeatureDetails
Chip TypeNXP NTAG213
Operating Frequency13.56 MHz
Memory Capacity144 Bytes (User Writable)
ProtocolISO/IEC 14443 Type A
Adhesive Backing3M Strong Adhesive
DurabilityWaterproof and Dustproof (Top Surface)
Price
₹ 25.42 ₹ 25.42
(Tax included)

Barcode: 2175

Product Description The NTAG213 13.56MHz NFC Sticker Tag is an ultra-thin, adhesive-backed proximity label designed for seamless "tap-and-go" interactions. Built on the high-performance NTAG213 chip, this sticker offers 144 bytes of rewritable user memory, making it ideal for storing URLs, contact details (vCards), or triggering automated tasks on smartphones. These tags are fully compatible with all NFC-enabled mobile devices and industrial readers like the PN532. With its discrete circular form factor and strong adhesive backing, it can be applied to posters, business cards, product packaging, or smart home furniture to bridge the gap between physical objects and digital content.

Key Features

  • Universal NFC Compatibility: Fully compliant with NFC Forum Type 2 Tag and ISO/IEC 14443 Type A standards, ensuring it works with all NFC smartphones.

  • 7-Byte Unique ID: Features a factory-set, permanent 7-byte serial number to ensure high security and prevent tag duplication in tracking systems.

  • Rewritable & Lockable: Supports 100,000 write cycles; memory can be set to "Read-Only" once the desired data is programmed for permanent applications.

  • Self-Adhesive Backing: Equipped with a premium 3M adhesive layer for instant application on plastic, wood, or glass surfaces.

  • Fast Data Transfer: Optimized for quick interaction with a data rate of 106 kbit/s, providing a near-instant user response.

Technical Details

  • Memory Structure: 180 bytes total memory, with 144 bytes available for user data (NDEF formatted).

  • 32-Bit Password Protection: Features a programmable password to prevent unauthorized memory modification or "tag hijacking."

  • Mirror Functionality: Supports ASCII mirror of UID and interaction counters, allowing for unique dynamic URLs without rewriting the tag.

  • Field Detection: Built-in capability for simple wake-up functions when placed near an NFC antenna.

  • True Anti-Collision: Allows multiple tags to operate in the same field without signal overlap or data corruption.

  • Antenna Design: High-quality etched aluminum or copper coil for consistent resonance at the 13.56MHz carrier frequency.

  • Operating Range: Depending on the reader's power and antenna geometry, it typically reads within a 1cm to 5cm range.

  • Write Endurance: High-reliability EEPROM ensures the tag remains functional even after 100,000 write operations.

  • Energy Harvesting: Completely passive; it extracts all necessary power from the RF field of the reading device.

  • Thickness: Ultra-slim profile (approx. 0.2mm) allows it to be placed under labels or inside slim enclosures.

  • Programmability: Can be easily encoded using free mobile apps like "NFC Tools" or via Arduino-based PN532 modules.

  • Data Integrity: Includes 16-bit CRC, parity, bit coding, and bit counting for error-free data transmission.

  • ECC Signature: Features an Originality Signature based on Elliptic Curve Cryptography to verify the chip's authenticity.

  • Surface Tolerance: While splashproof, it is best applied to dry, smooth surfaces for maximum adhesive longevity.

  • Frequency Tuning: Precisely centered at 13.56MHz for maximum energy transfer with modern smartphone antennas.

Prototyping and Engineering Tips from Robogears

  • 9V Battery Use: This sticker is passive and requires no battery. If you are building an NFC Reader (like PN532) for a 9V battery-powered project, use a Buck Converter to step down to 5V or 3.3V. Never connect 9V to the reader's VCC, or you will damage the chip that talks to these stickers.

  • 18650 Cell: A single 18650 cell is perfect for portable NFC loggers. Since the PN532 can run on 3.3V, you can use a 3.3V LDO regulator with your 18650 to create a compact, handheld NFC scanner.

  • IC & Capacitor Tip: If you are applying this sticker to a Metal Surface, it will not work unless you use an "On-Metal" version with a ferrite layer. To improve reader reliability, add a 0.1uF ceramic capacitor near the antenna terminals of your PN532/RC522 reader to reduce electromagnetic noise.

  • Related Products: We recommend pairing this with our PN532 NFC Modules, I2C OLED Displays, and 3.7V Li-ion Rechargeable Batteries for building smart interactive kiosks.

Package Includes

  • 1 x NTAG213 13.56MHz NFC Sticker Tag.

Disclaimer Image is for illustration purpose only 2-3 lines. Standard NFC stickers will NOT function if applied directly onto metallic surfaces (like laptops or metal cabinets) due to RF interference. For metal surfaces, please use a dedicated Anti-Metal NFC tag.
