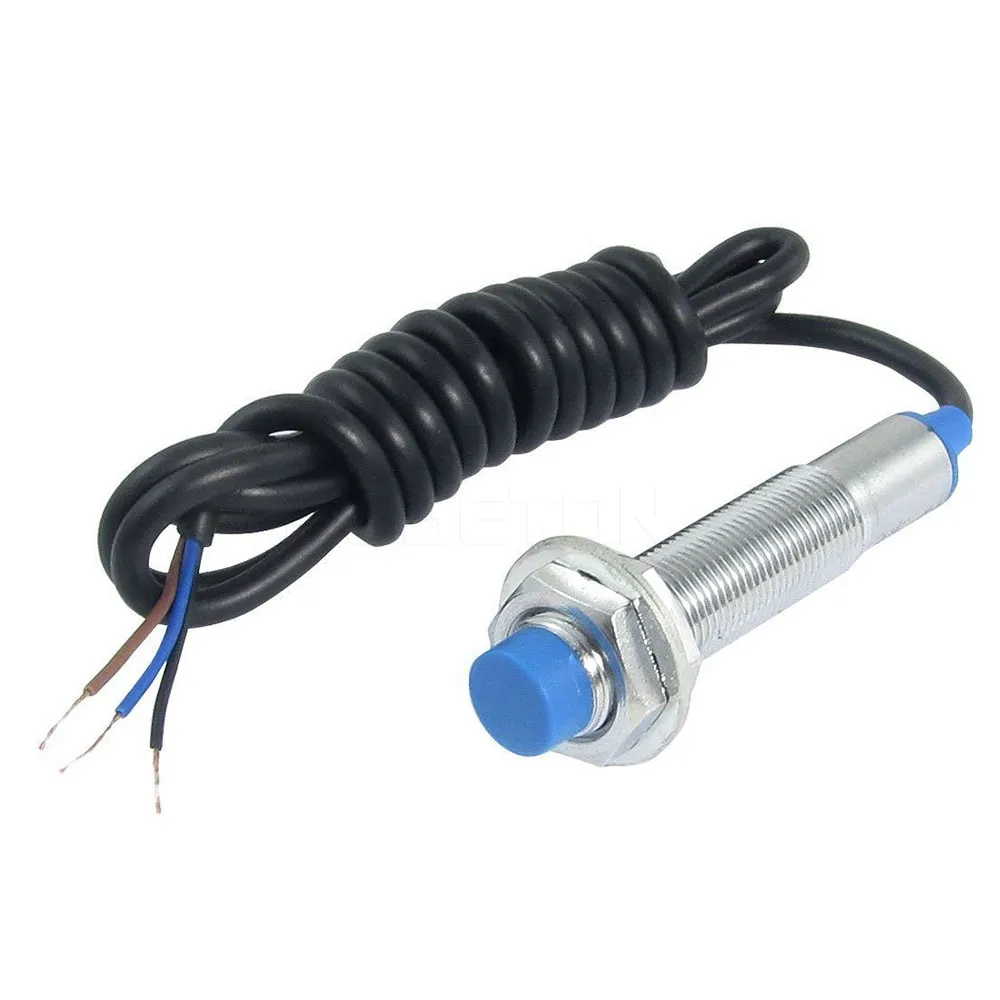

Inductive Proximity Sensor Switch – LJ12A3-4-Z/BX NPN Normally Open (NO) Metal Detection Switch with 4mm Sensing Range and DC 6-36V Operating Voltage

Product Description The LJ12A3-4-Z/BX is an industrial-grade inductive proximity sensor designed for non-contact detection of metallic objects. Encased in a rugged M12 threaded nickel-plated brass housing, this sensor triggers an NPN Normally Open (NO) output when a metal target enters its 4mm sensing field. Unlike mechanical limit switches, this inductive switch has no moving parts, making it immune to wear, dust, and vibration. It is the industry standard for 3D printer auto-leveling, CNC machine homing, and industrial counting on conveyor lines. With its wide operating voltage and high-speed switching capability, it integrates seamlessly into PLC systems and microcontroller environments using simple level-shifting circuits.

Key Features

• Non-Contact Detection: Utilizes electromagnetic induction to detect metal without physical contact, ensuring a long operational lifespan.

• Rugged M12 Housing: Features a durable, corrosion-resistant metallic body with an IP67 rating for protection against water and oil.

• High-Speed Switching: Capable of a 500Hz response frequency, making it ideal for high-speed pulse counting and rotation monitoring.

• Integrated LED Indicator: Equipped with a bright red LED at the base that illuminates instantly upon metal detection for easy calibration.

• Reverse Polarity Protection: Built-in circuitry prevents damage to the sensor if the power supply leads are accidentally reversed.

Technical Details

• Output Configuration: Open-collector NPN Normally Open (NO); the signal wire "sinks" to Ground when a metal object is detected.

• Hysteresis Distance: Features a small travel distance (typically <10% of sensing range) to prevent rapid oscillation at the detection threshold.

• Detection Target: Optimized for ferrous metals (Iron/Steel); non-ferrous metals like Aluminum or Copper will result in a reduced sensing range.

• Insulation Resistance: Rated for >50MΩ, ensuring high safety standards between the internal electronics and the outer casing.

• Cable Construction: Uses high-flexibility 3-core PVC insulated wiring for reliable performance in moving robotic arms or CNC gantries.

• Mounting Versatility: Includes two hex nuts and washers for secure installation into pre-drilled M12 holes or brackets.

• Switching Logic: In the absence of metal, the signal wire remains floating (High-Z); upon detection, it pulls the load to the Negative rail.

• Voltage Drop: Minimal internal voltage drop of <1.5V when switching at a full 300mA load.

• Dielectric Strength: Tested to withstand 1000V AC for 1 minute between the housing and the internal circuit.

• Short-Circuit Protection: Designed to handle temporary over-current conditions on the output line.

• Wiring Color Code: Standard Industrial Brown (VCC), Blue (GND), and Black (Signal Output).

• EMC Shielding: Internal circuitry is shielded to prevent false triggers from nearby motor noise or radio frequency interference.

• Stability: Features temperature compensation to maintain sensing accuracy across the full -25°C to +65°C range.

• Compact Footprint: The 60mm length and 12mm diameter allow for installation in tight mechanical assemblies.

• Compatibility: Easily interfaced with 24V PLCs or 5V/3.3V microcontrollers using a simple voltage divider or optocoupler.
