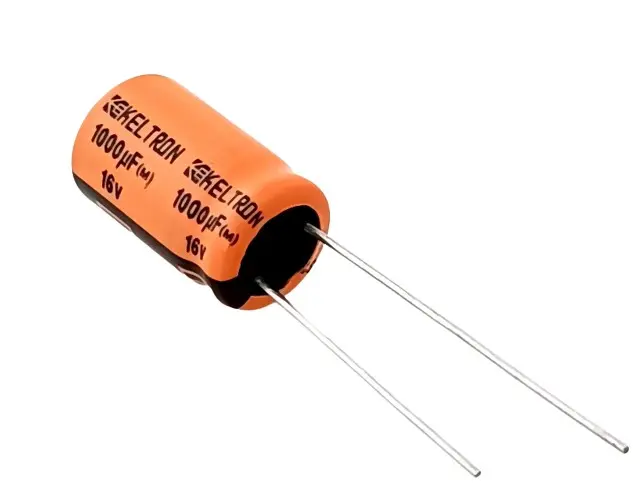

16V 1000uF Electrolytic Capacitor (10x16mm) - Keltron

16V 1000uF Electrolytic Capacitor (10x16mm) - Keltron

(0 review)
SpecificationDetails
Capacitance1000 µF
Voltage Rating16V DC
BrandKeltron (High Reliability)
Dimensions10 mm (Diameter) x 16 mm (Height)
TypeAluminum Electrolytic (Polarized)
Operating Temp.Up to +105°C
Price
₹ 8.47 ₹ 8.47
(Tax included)

Barcode: 3279321

Product Description

The 16V 1000uF Electrolytic Capacitor from Keltron is a high-capacity energy storage component designed for heavy-duty filtering and power stabilization. With a substantial 1000uF rating, it is exceptionally effective at smoothing out voltage ripples in power supplies and acting as a local energy reservoir for high-current loads like motors or LED strips. Its compact 10x16mm form factor allows for high-density mounting on PCBs, while the Keltron branding ensures superior build quality and long-term performance stability in both hobbyist and industrial circuits.

Key Features

  • High Ripple Current Capability: Specifically engineered to handle significant charge/discharge cycles, making it ideal for AC-to-DC rectification stages.

  • 105°C Industrial Grade: Rated for high-temperature environments, providing a much longer operational lifespan than standard 85°C rated capacitors.

  • Reliable Keltron Quality: Manufactured by Keltron, known for tight tolerances and low leakage currents in professional electronics.

  • Compact Powerhouse: Offers a large 1000uF capacity within a small 10mm diameter footprint, saving valuable board space.

  • Clear Polarity Indicator: Features a distinct negative (–) stripe for quick, error-free installation on production lines or breadboards.

Technical Details

  • Mounting Style: Radial Through-Hole.

  • Tolerance: ±20%.

  • Safety Feature: Integrated safety vent on the top to prevent casing rupture under extreme failure conditions.

Prototyping and Engineering Tips from Robogears

  • The Polarity Rule: This is a Polarized component. The shorter lead and the body stripe indicate the Negative (–) terminal. Connecting it in reverse will cause the electrolyte to boil, potentially leading to a "pop" or leakage.

  • Bulk Capacitance for Motors: If your project involves servo motors or DC motors that cause your microcontroller (like an Arduino) to reset, place this 1000uF capacitor across the motor's power rails. It acts as a "buffer" to provide the instant current the motor needs without dropping the logic voltage.

  • Voltage Overhead: While rated for 16V, we recommend using this in circuits running at 12V or lower. Leaving a 25-30% "headroom" significantly reduces internal stress and extends the component's life by years.

  • ESR Considerations: For ultra-high-frequency switching power supplies, pair this large electrolytic capacitor with a 0.1uF ceramic capacitor. The large one handles the bulk "hum," while the ceramic one handles the high-frequency "hiss" or noise.

Package Includes

  • 1 x 16V 1000uF Electrolytic Capacitor (Keltron)

Disclaimer: Do not exceed the 16V DC rating or subject the unit to reverse polarity. For AC applications, use non-polarized capacitors. Ensure the safety vent is not obstructed during mounting in tight enclosures.
