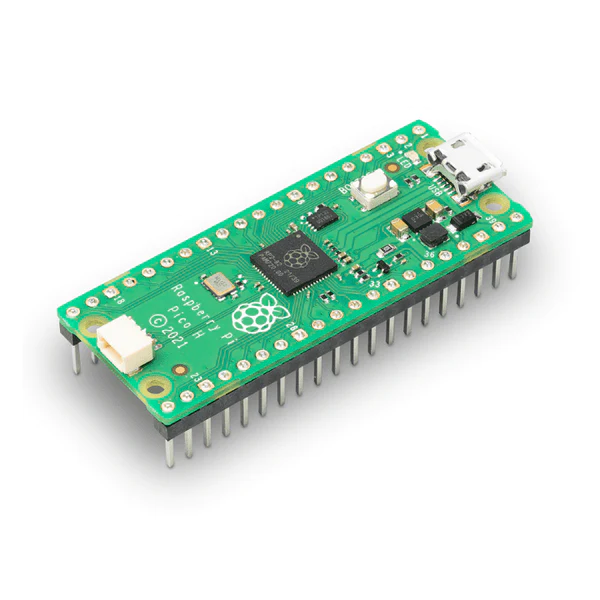

Raspberry PI PICO H (with Soldered Headers)

Raspberry PI PICO H (with Soldered Headers)

(0 review)
ParameterDetailed Specification
MicrocontrollerRaspberry Pi RP2040 (Dual-core)
ProcessorARM Cortex-M0+ @ 133MHz
On-board Flash2MB QSPI
SRAM264KB Internal
GPIO Count26 Multi-function Pins
Interfaces2x UART, 2x SPI, 2x I2C, 16x PWM
ADC3x 12-bit Analog Inputs
ClockOn-chip Accurate Clock/Timer
Price
₹ 381.36 ₹ 381.36
(Tax included)

Product Description

Step into the world of high-performance microcontrollers with the Raspberry Pi Pico with Headers. Built around the revolutionary RP2040 silicon designed by Raspberry Pi, this board offers a powerful dual-core processor and unique Programmable I/O (PIO) state machines. This specific version comes with pre-soldered male headers, making it "Breadboard Ready" right out of the box—no soldering iron required. At Robogears, we recommend the Pico for developers who need more speed and memory than a standard Arduino Uno but want a simpler, lower-power platform than a full Raspberry Pi. Whether you are building high-speed data loggers or custom USB HID devices in your Pimpri workshop, the Pico provides industrial-grade performance at an entry-level price.

Detailed Key Features

  • Dual-Core Performance: The dual ARM Cortex-M0+ cores allow for efficient multitasking, such as handling a sensor interrupt on one core while processing data on the other.

  • Programmable I/O (PIO): A standout feature that allows you to create custom hardware interfaces (like VGA, SD card controllers, or specialized LED drivers) without taxing the main CPU.

  • Breadboard Friendly: The pre-installed headers allow for instant prototyping on breadboards, saving time and effort for students and hobbyists.

  • MicroPython & C/C++ Support: Easily programmed via a micro-USB cable using the Thonny IDE (MicroPython) or VS Code (C/C++ SDK).

  • Drag-and-Drop Flashing: Simply hold the "BOOTSEL" button and plug it into a PC; it appears as a mass storage drive for effortless firmware updates.

Prototyping & Engineering Tips (Robogears Exclusive)

  • The "Ground" Check: At our Pimpri facility, we often remind users that the Pico has eight Ground (GND) pins. Using multiple ground connections in high-speed projects can significantly reduce electrical noise.

  • Logic Level Alert: The Pico is strictly a 3.3V device. Connecting 5V sensors directly to the GPIO pins will damage the RP2040 chip. Always use a Logic Level Converter if you are interfacing with 5V components.

  • PIO Potential: Don't ignore the PIO pins! If you find that bit-banging a protocol is too slow, look into PIO state machines; they are the secret to the Pico's incredible versatility.

  • VSYS Pin: If you are powering the Pico from an external battery instead of USB, use the VSYS pin. It includes a diode to prevent back-powering your computer when both the battery and USB are connected.

Package Includes

  • 1 x Raspberry Pi Pico with Pre-Soldered Headers

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (Green) and the brand of the pre-soldered headers may vary slightly between batches, but the RP2040 performance and 2MB Flash capacity remain as described.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Thermal Management: While the Zero 2 W is highly efficient, its quad-core processor generates more heat than the original Zero. We highly recommend using a heatsink or an aluminum case if you plan to run sustained heavy computational tasks.

  • Power Stability: To prevent "Under-voltage" warnings, always use a high-quality 5V power adapter. Low-quality chargers often suffer from voltage drops that can lead to SD card corruption.

  • Header Installation: Since the GPIO pins come unpopulated, we suggest using Gold-Plated Headers for better conductivity, especially if your project is located in high-humidity environments.

  • Headless Setup: For rapid deployment, you can configure the Wi-Fi and SSH settings directly on the SD card using the "Raspberry Pi Imager" tool before the first boot.

Package Includes

  • 1 x Raspberry Pi Zero 2 W Board

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in design, color, or component layout due to manufacturing updates, though all technical specifications will remain as described.
