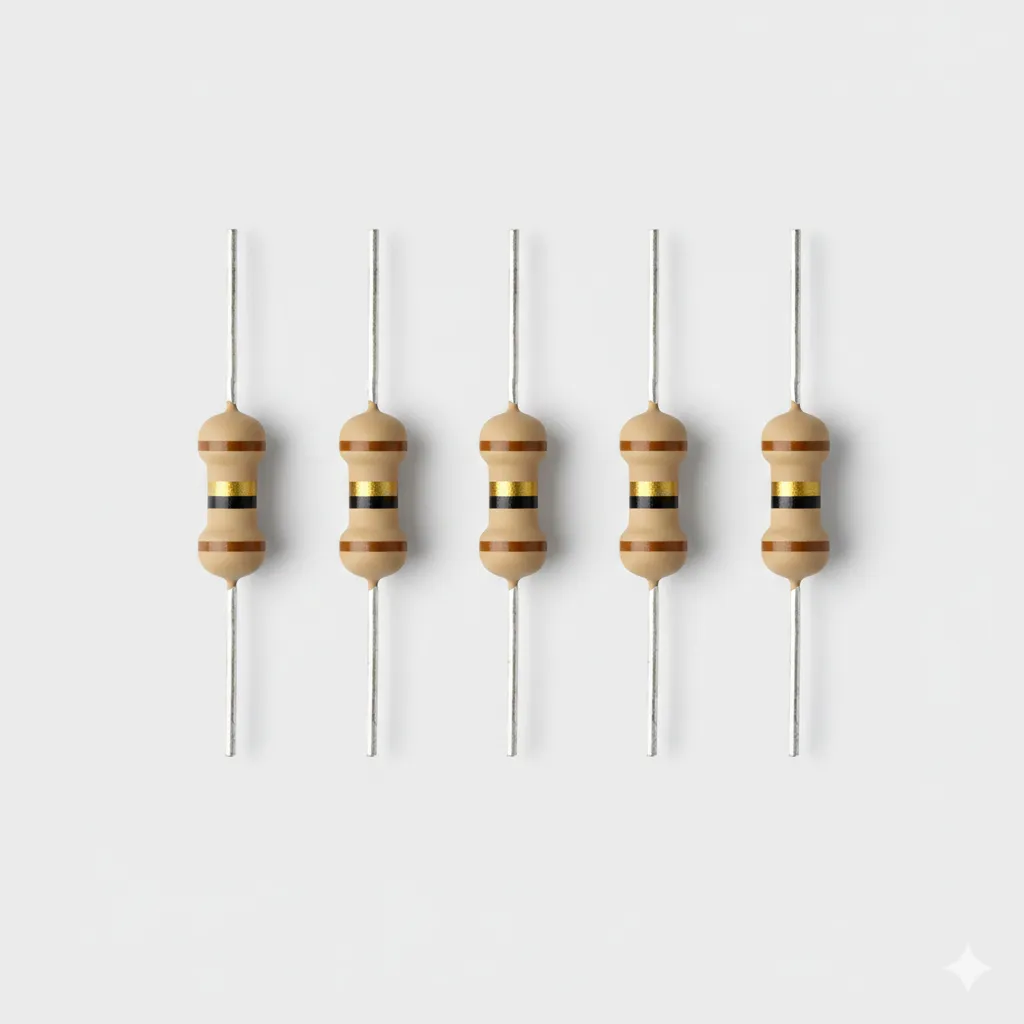

2.2 Ohm 0.25W Carbon Film Resistor - 5% Tolerance (Pack of 5)

2.2 Ohm 0.25W Carbon Film Resistor - 5% Tolerance (Pack of 5)

(0 review)
ComponentSpecification
Resistance Value2.2 Ohms (2.2Ω)
Power Rating0.25 Watts (1/4 Watt)
Tolerance±5% (J Type)
ConstructionCarbon Film
Package TypeThrough-Hole (Axial)
QuantityPack of 5 Units
Price
₹ 8.47 ₹ 8.47
(Tax included)

Product Description: The 2.2 Ohm 1/4 Watt Resistor is a high-performance passive component designed for low-resistance applications like current sensing and circuit protection. These resistors feature a 5% tolerance, ensuring reliable electrical behavior in standard prototyping and repair projects. With a 0.25W power rating, they provide a stable resistive barrier for low-voltage signal conditioning and filtering.

Key Features

  • Low Ohmic Value: Ideal for applications requiring a minimal voltage drop or high-current path stabilisation.

  • Axial Lead Format: Standard flexible leads allow for easy insertion into breadboards or permanent soldering.

  • Colour Code Identification: Features the standard 4-band marking (Red, Red, Golden, Gold) for quick manual sorting.

  • Stable Carbon Film Construction: Offers high reliability with low electrical noise and environmental resistance.

  • Safety Lacquer Coating: Finished with a flame-retardant layer to prevent combustion during minor electrical overloads.

Technical Details

  • Maximum Working Voltage: Rated for stable operation up to 250V in standard AC/DC circuits.

  • Overload Surge Capacity: Can withstand temporary peak voltages up to 500V for short durations.

  • Dielectric Strength: Provides insulation protection up to 500V AC between the resistive element and surroundings.

  • Operating Temperature Range: Reliable performance maintained from -55°C to +155°C.

  • Temperature Coefficient: Typically rated at ±450 ppm/°C, ensuring thermal stability during operation.

  • Lead Quality: Solder-plated copper-clad steel leads for superior conductivity and strong solder joints.

  • Resistance Drift: Engineered to maintain values within ±3% even after 1,000 hours of continuous load.

  • Compact Footprint: Miniature axial size (approx. 2.3mm diameter) allows for high-density component placement.

  • RoHS Compliant: Manufactured using lead-free processes to meet modern environmental safety standards.

  • Low Parasitic Inductance: Suitable for basic RF filtering and high-speed signal conditioning.

  • Moisture Protection: Sealed with multiple epoxy layers to prevent oxidation in high-humidity areas.

  • Indefinite Shelf Life: Protective coating ensures the leads and element remain viable for long-term storage.

Prototyping and Engineering Tips from Robogears

  • 9V Battery Use: When using a 9V battery, a 2.2 Ohm resistor is often used in series with power transistors to limit inrush current to motors or solenoids.

  • 18650 Monitoring: Use this as a current shunt resistor in series with an 18650 cell to measure discharge current using a microcontroller's ADC pin.

  • IC & Driver Support: Ideal for protecting the output stages of motor drivers or as a snubber component in small switching power supplies.

  • Related Products: We recommend pairing these with our Half-Size Breadboards and TP4056 Battery Charger Modules.

Package Includes

  • 5 x 2.2 Ohm 1/4 Watt Carbon Film Resistors.
