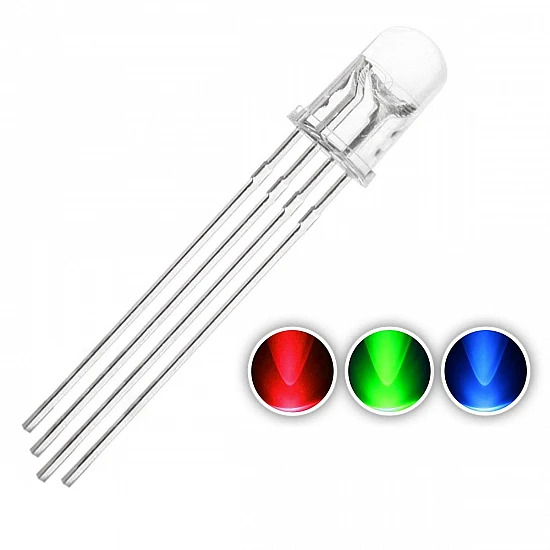

Short SEO Name 5mm RGB LED 4-Pin Common Cathode (CC) Multi-Colour Light (Pack of 5)

Short SEO Name 5mm RGB LED 4-Pin Common Cathode (CC) Multi-Colour Light (Pack of 5)

(0 review)
ComponentSpecification
LED TypeRGB Through-Hole (DIP)
Diameter5mm
ConfigurationCommon Cathode (CC)
Lens AppearanceWater Clear (Transparent)
Forward Voltage (Red)1.8V – 2.2V
Forward Voltage (Green/Blue)3.0V – 3.4V
Forward Current (If)20mA per Color
Pin Count4 Pins
Price
₹ 16.95 ₹ 16.95
(Tax included)

Product Description The 5mm 4-Pin RGB LED is a versatile light source that combines Red, Green, and Blue diodes into a single 5mm package. This version is a Common Cathode (CC) configuration, meaning all three internal LEDs share a single negative ground pin. By providing power to the individual color pins and varying the voltage (using PWM), you can create thousands of colors, from vibrant purples and cyans to a crisp white. The water-clear lens ensures a high-intensity, focused beam, making it perfect for custom indicators, mood lighting, and robotics projects where you need to display multiple status states with a single component.

Key Features

  • Full-Color Spectrum: Create any color by mixing Red, Green, and Blue intensities.

  • Common Cathode Design: Simplifies wiring for most microcontroller projects (one ground pin for all colors).

  • Focused Brilliance: Water-clear lens provides maximum brightness and a sharp, point-source light.

  • Compact Integration: Replaces three individual LEDs with one space-saving 5mm component.

  • Through-Hole Mounting: Standard 4-pin layout fits breadboards and perf-boards easily.

Pin Configuration

  • Pin 1: Red Anode (+)

  • Pin 2: Common Cathode (-) [Longest Pin]

  • Pin 3: Green Anode (+)

  • Pin 4: Blue Anode (+)

Technical Details

  • Operating Temperature: -25°C to +85°C

  • Storage Temperature: -30°C to +100°C

  • Soldering Temp: 260°C for less than 5 seconds

  • Luminous Intensity: Red (2000 mcd) / Green (5000 mcd) / Blue (3000 mcd)

Prototyping and Engineering Tips from Robogears

  • Resistor Selection is Critical: Because each color has a different forward voltage, you must use different resistor values for each pin to ensure uniform brightness and prevent burnout.

    • For 5V (Arduino): Use a 150Ω to 220Ω resistor for Green and Blue, and a 220Ω to 330Ω resistor for Red.

  • PWM Color Mixing: To create colors like orange or pink, connect the three anode pins to PWM-enabled pins on your Arduino (like D3, D5, and D6). Use the analogWrite() command to blend the intensities.

  • The Longest Pin: Always identify the longest pin first—that is your Ground (Cathode). The other three pins are for the colors.

  • Diffuser Tip: Because the lens is clear, you might see individual red, green, and blue spots if you look closely. If you want a perfectly blended "single" color, place a small piece of translucent white tape over the LED or use it with a 3D-printed diffuser.

Package Includes

  • 5 x 5mm 4-Pin RGB Common Cathode LEDs

Disclaimer Images are for reference; actual luminous intensity may vary slightly by production batch. DO NOT connect any pin directly to a power source without a current-limiting resistor.
