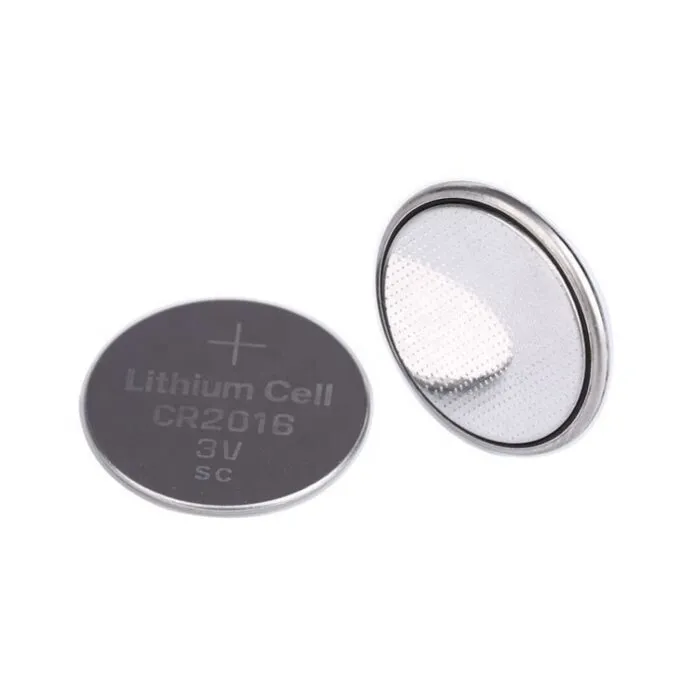

CR2016 3V Lithium Coin Cell Battery for Slim Electronic Devices and 3D Glasses

CR2016 3V Lithium Coin Cell Battery for Slim Electronic Devices and 3D Glasses

(0 review)
ComponentSpecification
ChemistryLithium Manganese Dioxide ($LiMnO_{2}$)
ModelCR2016
Nominal Voltage3.0V
Capacity~75mAh to 90mAh
Diameter20.0 mm
Height1.6 mm
WeightApprox. 1.7g
Price
₹ 16.95 ₹ 16.95
(Tax included)

Product Description The CR2016 is a super-slim 3V lithium coin cell designed for applications where space is extremely limited. At only 1.6mm thick—half the thickness of a standard CR2032—it is the ideal power choice for ultra-thin remote controls, digital watches, car key fobs, and active shutter 3D glasses. Despite its low profile, it delivers a stable 3V output and utilizes premium lithium technology to ensure a long shelf life and reliable performance in both low and high-temperature environments.

Key Features

  • Ultra-Thin Form Factor: Only 1.6mm height, perfect for "credit card" style remotes and thin wearable tech.

  • High Reliability: Engineered to provide consistent voltage for precision timing and signal transmission.

  • Extended Shelf Life: Advanced lithium chemistry allows the cell to retain its charge for up to 10 years in storage.

  • Wide Operating Range: Performs reliably in temperatures ranging from -20°C to +60°C.

  • Standard Diameter: Shares the same 20mm diameter as the CR2032 and CR2025, allowing for specialized slim-line integration.

Technical Details

  • Standard Discharge Current: 0.1mA

  • Max Pulse Discharge Current: 10mA

  • Self-Discharge Rate: < 1% per year

  • Terminal Type: Flat contact (Universal)

  • Casing: Stainless Steel

Prototyping and Engineering Tips from Robogears

  • Stacking for 6V: Because they are so thin, two CR2016 cells are often stacked together in the space of a single CR2032 to provide a 6V output. If your device requires 6V but has a very small battery compartment, this "stacking" method is a common engineering trick.

  • Holder Compatibility: Be careful when using a universal 20mm holder. A holder designed for a CR2032 will be too "deep" for a CR2016, leading to a loose connection. Ensure your battery clips are tensioned correctly for a 1.6mm cell.

  • Low Current Logic: This battery is best suited for low-power "sleep" circuits or intermittent signal bursts (like IR remotes). It has a lower capacity (mAh) than the thicker CR2032, so it is not recommended for high-drain continuous loads like motors.

  • Handling with Care: Always hold the battery by the edges. Touching the top and bottom simultaneously with bare fingers can create a micro-short that drains the cell's limited capacity over time.

Package Includes

  • 1 x CR2016 3V Lithium Coin Cell

Disclaimer Images are for reference; actual brand marking or packaging may vary by batch. Specifications subject to change by manufacturer. Keep away from small children; lithium batteries are hazardous if swallowed.
