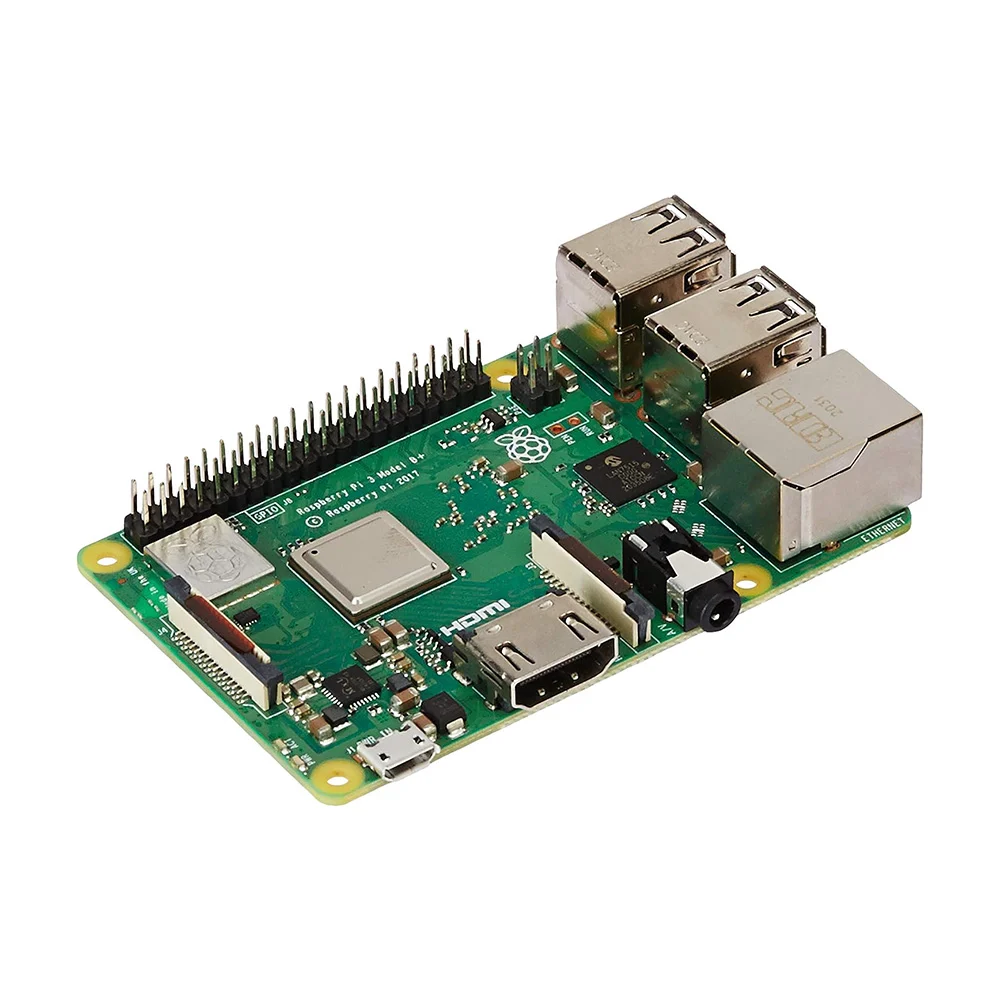

Raspberry Pi 3 Model B+ (Plus) – High-Performance 1.4GHz Quad-Core 64-bit Single Board Computer (SBC) with Dual-Band WiFi and PoE Support

Raspberry Pi 3 Model B+ (Plus) – High-Performance 1.4GHz Quad-Core 64-bit Single Board Computer (SBC) with Dual-Band WiFi and PoE Support

(0 review)
ParameterDetailed Specification
ProcessorBroadcom BCM2837B0, Quad-core 64-bit SoC (ARM Cortex-A53)
Clock Speed1.4 GHz
RAM1GB LPDDR2 SDRAM
Wireless2.4GHz & 5GHz IEEE 802.11.b/g/n/ac Wireless LAN
BluetoothBluetooth 4.2, BLE
EthernetGigabit Ethernet over USB 2.0 (Max throughput 300 Mbps)
Price
₹ 3,262.71 ₹ 3,262.71
(Tax included)

Product Description

The Raspberry Pi 3 Model B+ is the ultimate evolution of the Raspberry Pi 3 series, offering enhanced processing power and improved thermal management. Featuring a 1.4GHz quad-core ARM Cortex-A53 processor, it provides a stable and reliable platform for professional IoT gateways, retro gaming, and media centers. The "Plus" model introduces critical upgrades including dual-band 2.4GHz/5GHz wireless LAN, faster Ethernet, and Power over Ethernet (PoE) capability via a separate PoE HAT. Whether you are deploying a remote sensor node or a local server in your Pimpri workshop, the Pi 3B+ remains a favorite for its balance of power, low power consumption, and vast ecosystem of compatible accessories.

Detailed Key Features

  • Enhanced Thermal Control: The BCM2837B0 SoC features a heat spreader that allows the CPU to run at higher clock speeds for longer periods before thermal throttling occurs.

  • Dual-Band Wireless Connectivity: The 5GHz band support provides faster data rates and less interference in crowded wireless environments, making it ideal for high-definition streaming.

  • PoE Capability: Equipped with a 4-pin PoE header, allowing the board to be powered and networked via a single Ethernet cable (requires a Raspberry Pi PoE HAT).

  • Improved PXE Booting: Optimized for network and USB mass-storage booting, making it easier to manage large deployments without individual SD cards.

  • Modular Compliance: The wireless module comes with modular compliance certification, allowing the board to be integrated into end products with significantly reduced wireless compliance testing.

All Technical Details

  • GPIO Interface: Standard 40-pin GPIO header for seamless hardware integration.

  • Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics.

  • HDMI Output: Full-size HDMI port for 1080p video.

  • Camera/Display Ports: 1x MIPI CSI camera port and 1x MIPI DSI display port.

  • Power Input: 5V/2.5A DC via Micro-USB or 5V DC via GPIO header.

  • Audio: 4-pole stereo output and composite video port.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Power Supply Selection: While the Pi 3B+ can run on 2A, we strongly recommend a 5V 2.5A power supply to prevent system instability when using power-hungry USB peripherals.

  • Headless Deployment: To set up the board without a monitor, create an empty file named ssh (no extension) and a wpa_supplicant.conf file on the boot partition of your SD card to enable remote access on the first boot.

  • Thermal Tip: For industrial applications in warm environments, adding a small aluminum heatsink to the CPU can prevent the clock speed from dropping under sustained heavy loads.

  • Ethernet Limitation: Note that while the Ethernet port is Gigabit-capable, it is internally connected via the USB 2.0 bus, which limits the maximum real-world throughput to approximately 300 Mbps.

Package Includes

  • 1 x Raspberry Pi 3 Model B+ Board

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in design, color, or component layout due to manufacturing updates, though all technical specifications will remain as described.
