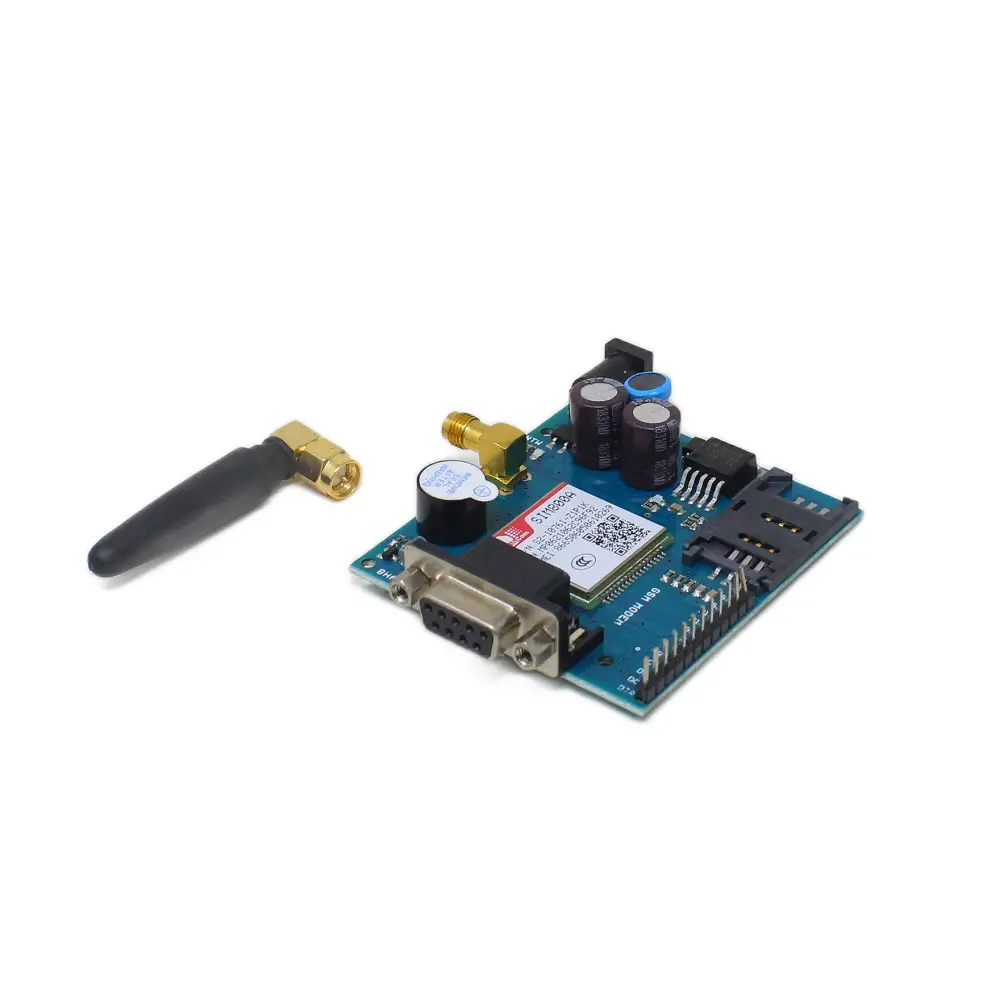

SIM800A GSM/GPRS Module with RS232 Interface – Industrial Dual-Band Wireless Modem with SMA Antenna

SIM800A GSM/GPRS Module with RS232 Interface – Industrial Dual-Band Wireless Modem with SMA Antenna

(0 review)
ParameterDetailed Specification
GSM ChipsetSIMCom SIM800A (Dual-Band)
Frequency Bands900MHz / 1800MHz
Communication InterfaceRS232 (DB9) & TTL Serial (Header)
Operating Voltage5V – 12V DC (Wide Range)
GPRS ConnectivityClass 12/10 (Up to 85.6 kbps)
ProtocolsTCP/UDP/HTTP/FTP/SMTP/SSL
SIM Card SlotStandard (Large) SIM Slot
Antenna InterfaceSMA (Female)
Price
₹ 889.83 ₹ 889.83
(Tax included)

Product Description

Bridge the gap between industrial equipment and cellular networks with the SIM800A GSM/GPRS Module with RS232. This robust communication board is specifically designed for industrial M2M (Machine to Machine) applications. At Robogears, we recommend this version for its integrated DB9 RS232 port, allowing you to connect it directly to PLCs, desktop PCs, or older industrial controllers without needing logic level converters. The module supports a full range of GSM functions, including SMS, Voice calls, and GPRS data. Whether you are building an SMS-based alert system for a factory floor or a remote data logger at your Pimpri facility, this SIM800A variant offers superior electrical protection and signal stability.

Detailed Key Features

  • Industrial RS232 Interface: Features a standard DB9 connector with onboard voltage level shifters (MAX232 equivalent), making it safe for ±12V serial communication.

  • Dual-Band 2G Connectivity: Optimized for 900/1800MHz bands, providing reliable coverage across major Indian cellular networks (excluding Jio).

  • Wide Input Voltage Range: The high-quality onboard power regulator allows the module to be powered by anything from 5V to 12V DC, ideal for automotive or industrial power rails.

  • Embedded TCP/IP Stack: Supports advanced internet protocols, enabling your device to upload data to web servers via HTTP or MQTT.

  • Voice & Audio Support: Includes dedicated pins for microphone and speaker, allowing for the integration of two-way voice communication.

All Technical Details

  • Pin Definition (TTL Header):

    • VCC/GND: Power Input (Ensure 2A peak capability).

    • TXD/RXD: TTL Serial for Microcontrollers (3.3V/5V auto-sensing).

  • Indicators: Features a "Net" LED for signal status and a "Power" LED for voltage confirmation.

  • SMA Connector: Provides a secure, threaded connection for the included high-gain antenna.

  • Applications: SCADA systems, remote pump controllers, SMS-based home automation, and GPS tracking (when used with an external GPS module).

Prototyping & Engineering Tips (Robogears Exclusive)

  • Power Supply Selection: At our Pimpri workshop, we’ve found that the SIM800A can draw sudden current bursts of up to 2A during transmission. Always use a high-quality 12V 2A or 5V 2A DC Adapter. Under-powering is the #1 cause of the module failing to register on the network.

  • The "Jio" Limitation: Please remember that the SIM800A is a 2G-only module. It will work perfectly with Airtel, Vi, and BSNL in India, but it is not compatible with Jio, which is a 4G-only network.

  • RS232 vs TTL: You can only use one interface at a time for data. Use the DB9 port for PC/PLC connection and the TTL pins for Arduino/ESP32 connection.

  • Network LED Logic:

    • Fast Blink (1s): Searching for network.

    • Slow Blink (3s): Registered and ready to use.

    • Very Fast Blink: GPRS data active.

Package Includes

  • 1 x SIM800A GSM/GPRS Module with RS232

  • 1 x High-Gain GSM SMA Antenna

  • 1 x 2-pin Power Connection Cable

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically Blue or Green) or the specific manufacturer of the capacitors may vary between batches, but the SIM800A industrial RS232 performance remains as described.
