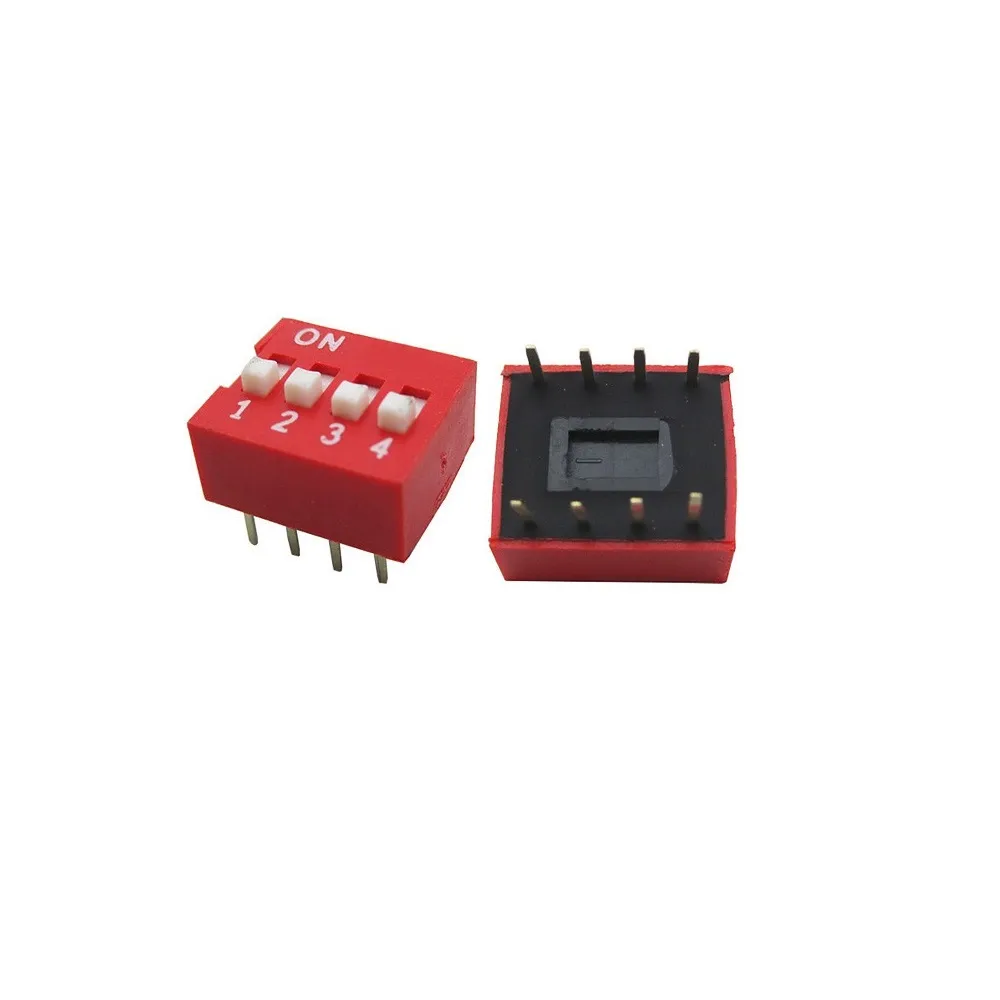

4-Way Slide DIP Switch 8-Pin 2.54mm

Specification	Details
Switch Type	4-Way Slide DIP Switch
Pin Count	8 Pins
Pin Pitch	2.54mm
Actuation Type	Sliding Latching Switch
Mounting Type	Through Hole PCB Mount
Application	Circuit Configuration & Address Selection

Price

₹ 21.19

(Tax included)

Barcode: 5477889

The 4-Way Slide Switch (8-Pin) is a compact and reliable DIP configuration switch designed for binary addressing, circuit mode selection, feature enabling, and hardware configuration settings. With a standard 2.54mm pin pitch and latching slide mechanism, this switch provides stable operation for embedded systems, industrial electronics, communication equipment, and DIY electronic projects.

Key Features:

4 Independent Slide Switches allow multiple binary configuration combinations within a compact footprint.
Latching Slide Mechanism maintains selected switch positions without continuous actuation.
Standard 2.54mm Pin Spacing ensures compatibility with common PCB layouts and prototyping boards.
Compact Through-Hole Design provides secure mounting and long-term reliability.
Ideal for Hardware Configuration commonly used in address selection, device settings, and control systems.

Technical Details:

Product Type: DIP Slide Switch
Number of Switches: 4-Way
Pin Count: 8 Pins
Pin Pitch: 2.54mm
Switch Type: Latching
Actuator Style: Slide Switch
Mounting Type: Through Hole
Contact Type: Mechanical Contact
Body Color: Red
Configuration Method: Binary Selection
Suitable Applications:
- PCB Address Selection
- Device Configuration
- Embedded Systems
- Industrial Controllers
- Communication Equipment
- DIY Electronics Projects

Prototyping and Engineering Tips from Robogears:

Clearly label switch positions during development to simplify testing and troubleshooting of multiple configurations.
Use pull-up or pull-down resistors when interfacing with microcontrollers to ensure stable logic-level readings.
Verify the ON/OFF orientation before soldering the switch onto the PCB to prevent configuration errors.

Package Includes:

3 x 4-Way Slide Switch (8-Pin) – 2.54mm Pitch
