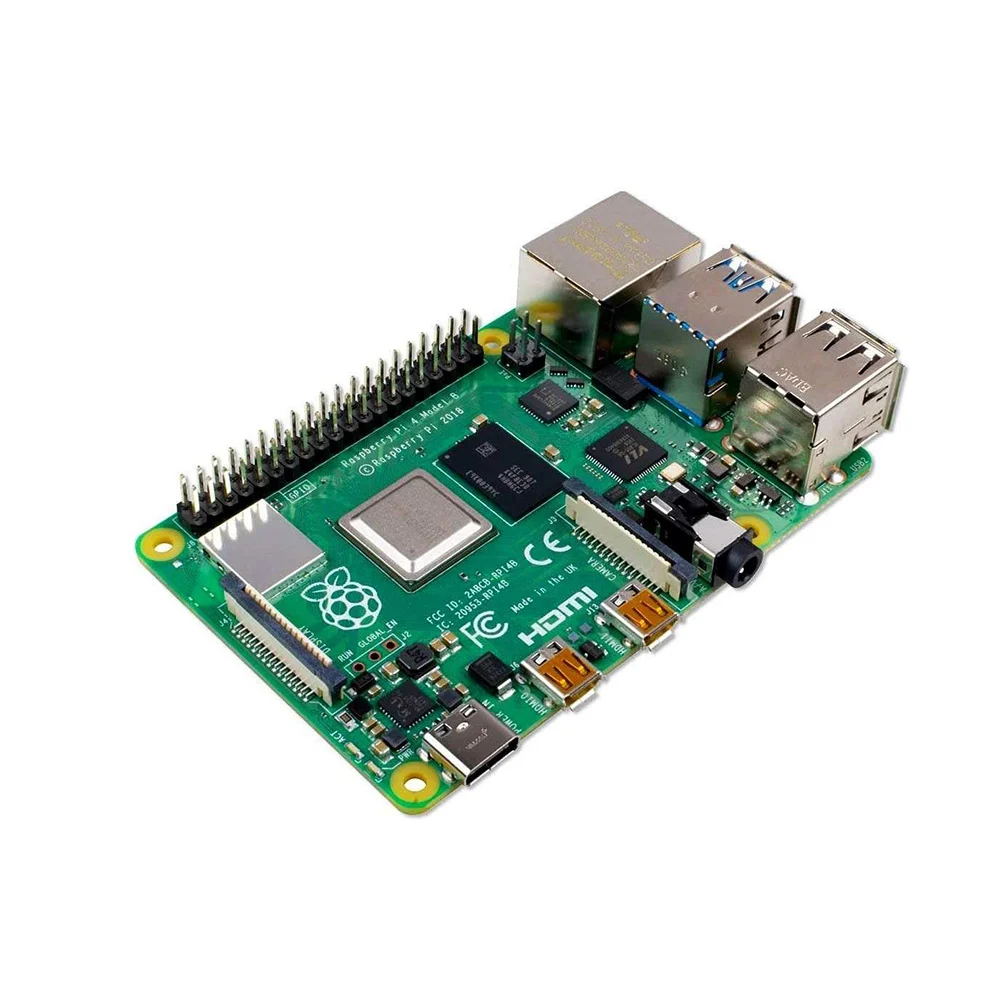

Raspberry Pi 4 Model B (2GB RAM) – High-Performance 1.5GHz Quad-Core 64-bit Single Board Computer (SBC) with Dual 4K Display and Gigabit Ethernet

Raspberry Pi 4 Model B (2GB RAM) – High-Performance 1.5GHz Quad-Core 64-bit Single Board Computer (SBC) with Dual 4K Display and Gigabit Ethernet

(0 review)
ParameterDetailed Specification
ProcessorBroadcom BCM2711, Quad-core 64-bit SoC (ARM Cortex-A72)
Clock Speed1.5GHz
RAM2GB LPDDR4-3200 SDRAM
Wireless2.4GHz & 5.0GHz IEEE 802.11ac Wireless, Bluetooth 5.0, BLE
Video Output2x Micro-HDMI ports (up to 4K@60fps supported)
MultimediaH.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
Price
₹ 4,025.42 ₹ 4,025.42
(Tax included)

Product Description

The Raspberry Pi 4 Model B (2GB RAM) is the highly efficient entry point into the flagship Raspberry Pi 4 series. Despite being the base memory model, it features the same powerful 1.5GHz quad-core ARM Cortex-A72 processor found in the higher-RAM variants. This board is the perfect solution for dedicated projects that require high-speed processing without the high cost of excess memory, such as print servers, network-attached storage (NAS), smart home hubs, and light industrial controllers. Its upgraded architecture provides a significant performance boost over the Pi 3B+, making it a versatile tool for any developer's bench.

Detailed Key Features

  • Significant Performance Jump: The Cortex-A72 architecture provides a 3x speed improvement over the previous generation, handling modern Linux distributions with ease.

  • Dual 4K Visuals: Equipped with two Micro-HDMI ports, allowing for dual-monitor setups—ideal for digital signage or monitoring dashboards.

  • Full-Speed Networking: Features true Gigabit Ethernet that is not limited by the USB bus, providing maximum throughput for data-heavy network applications.

  • USB 3.0 Capability: Includes two USB 3.0 ports for 10x faster data transfer to external drives, alongside two USB 2.0 ports for mouse/keyboard inputs.

  • Modern Power Management: Features a USB-C power input, providing the stable current required for the high-performance quad-core SoC.

All Technical Details

  • GPIO Interface: Standard 40-pin GPIO header, fully compatible with existing Pi HATs and sensors.

  • Camera/Display Support: 2-lane MIPI CSI camera port and 2-lane MIPI DSI display port.

  • Power Input: 5V DC via USB-C (Minimum 3A) or 5V DC via GPIO header.

  • Power over Ethernet (PoE): Supported via a separate PoE HAT.

  • Operating Temperature: 0°C to 50°C (ambient).

  • Dimensions: 85mm x 56mm x 17mm.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Best Use Case: The 2GB model is exceptionally well-suited for "Headless" applications (running without a monitor). For projects in your Pimpri facility like VPN servers or Pi-hole, this 2GB version provides identical processing power to the 8GB model at a fraction of the cost.

  • Thermal Management: To maintain peak 1.5GHz clock speeds under load, we recommend applying aluminum heatsinks. If your enclosure is small, an active 5V cooling fan is suggested to prevent thermal throttling.

  • Power Supply Tip: Avoid using standard phone chargers; the Pi 4 is sensitive to voltage drops. Always use a dedicated 5V 3A USB-C power adapter to ensure system stability.

  • Port Protection: Be careful with the Micro-HDMI ports. They are smaller than standard HDMI; always use a high-quality adapter or cable to avoid mechanical stress on the PCB pads.

Package Includes

  • 1 x Raspberry Pi 4 Model B (2GB RAM variant)

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in design, color, or component layout due to manufacturing updates, though all technical specifications will remain as described.
