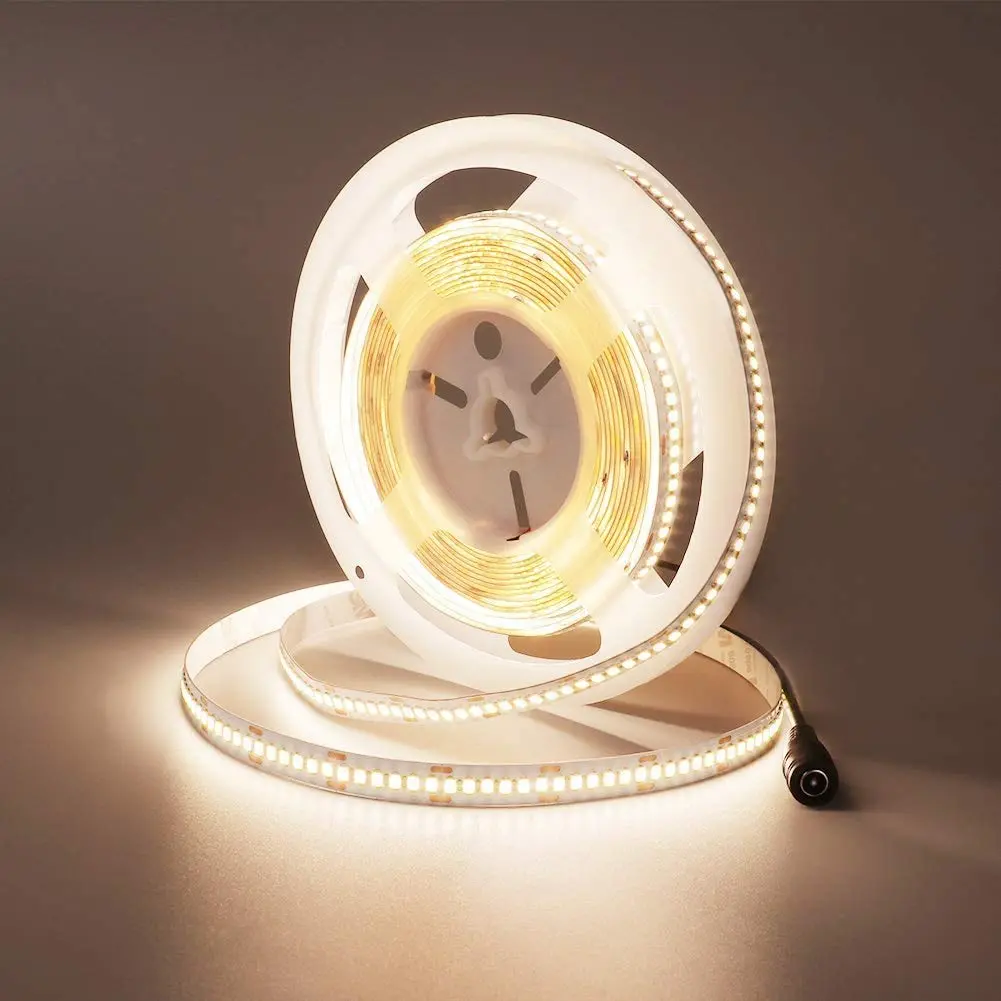

12V Warm White LED Strip 4040 SMD 5mm Ultra-Slim Flexible Light Roll

12V Warm White LED Strip 4040 SMD 5mm Ultra-Slim Flexible Light Roll

(0 review)
ComponentSpecification
LED Type4040 SMD (High Efficiency)
Strip Width5mm (Ultra-Slim)
ColorWarm White (3000K - 3500K)
Operating Voltage12V DC
LED DensityHigh Density (Standard 120 LEDs/m)
Cutting PointEvery 3 LEDs
BackingSelf-Adhesive Tape
Price
₹ 93.22 ₹ 93.22
(Tax included)

Product Description The 12V Warm White 4040 LED Strip is a premium lighting solution that balances high brightness with an ultra-slim form factor. Utilizing advanced 4040 SMD LEDs, this strip provides a soft, inviting warm white glow while maintaining a narrow 5mm width. This makes it perfect for discreet installations where a cozy atmosphere is desired, such as under-cabinet lighting, decorative shelf accents, or high-end architectural detailing where standard 8mm or 10mm strips are too bulky.

Key Features

  • Ultra-Slim 5mm PCB: Ideal for mounting in tight crevices and slim aluminum channels.

  • Warm Golden Glow: Delivers a 3000K-3500K color temperature for a comfortable, high-end look.

  • 4040 SMD Technology: Features high-efficiency chips that offer excellent brightness-to-size ratio.

  • Flexible & Customizable: Easily bends around contours and can be cut at regular intervals to fit your specific needs.

  • Easy Installation: Equipped with a strong adhesive backing for secure mounting on smooth surfaces.

Technical Details

  • Voltage: 12V DC (Regulated power supply recommended)

  • Waterproof Rating: IP20 (Indoor use recommended)

  • Viewing Angle: 120°

  • Operating Temp: -20°C to +50°C

Prototyping and Engineering Tips from Robogears

  • Ambient Lighting: This warm white strip is specifically chosen for projects that require a "homey" or premium feel, unlike the clinical look of cool white. It’s perfect for the interior lighting of high-end robot display cases.

  • Powering Advice: For a standard 5-meter roll, a 12V 5A power supply is recommended. If you notice a drop in brightness at the end of the roll, try injecting power from both ends.

  • Slim Profile Benefits: Because it is only 5mm wide, this strip can be used for "Edge-Lighting" etched acrylic without needing a thick base. A 5mm slot is all you need to hide the light source.

  • Controlling Brightness: Use a Logic-Level MOSFET (like the IRFZ44N) with your Arduino to dim this strip using PWM. This allows you to create smooth "sunrise" or "fading" light effects in your project.

Package Includes

  • 1 x 5-Meter Roll (5mm Width) Warm White 4040 LED Strip

Disclaimer Images are for reference; actual color temperature may vary slightly by production batch. DO NOT connect directly to 220V AC mains; a 12V DC adapter is required. Verify polarity (+ and -) before connecting to power.
