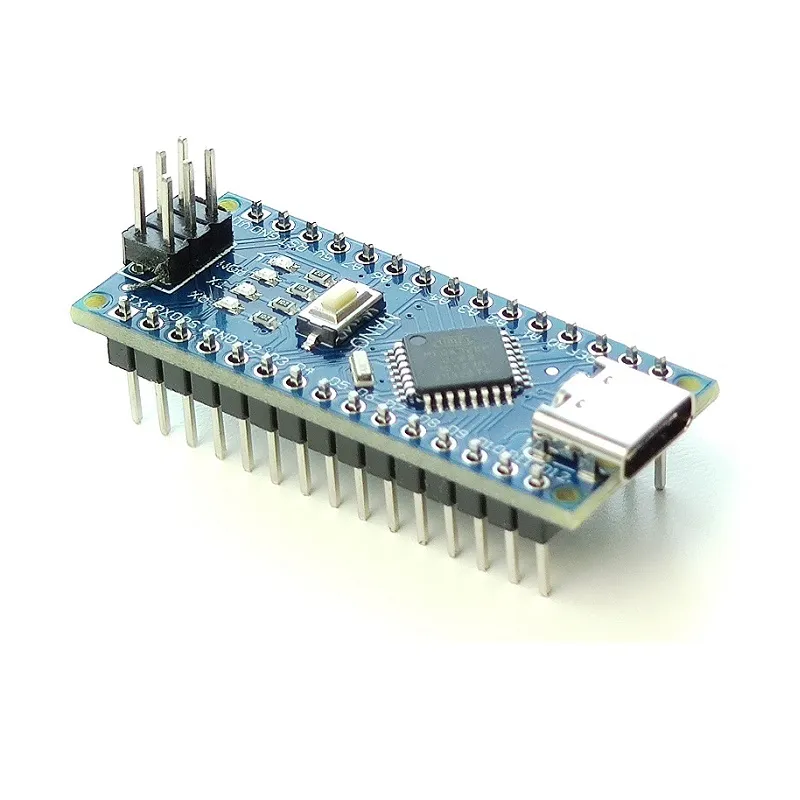

Arduino Nano V3.0 Compatible with USB Type-C and CH340

Arduino Nano V3.0 Compatible with USB Type-C and CH340

(0 review)
SpecificationDetails
MicrocontrollerATmega328P
Operating Voltage5V
Input Voltage7V to 12V (via VIN pin)
Flash Memory32 KB (2 KB used by bootloader)
SRAM / EEPROM2 KB / 1 KB
Clock Speed16 MHz
Digital I/O Pins14 (6 provide PWM output)
Analog Input Pins8
Price
₹ 199.15 ₹ 199.15
(Tax included)

Product Description

The Arduino Compatible Nano V3.0 is the modern evolution of the classic Nano board, now featuring the highly requested Type-C USB port. This board combines the breadboard-friendly form factor of the original Nano with the durability and convenience of the Type-C interface, eliminating the fragility of older Mini or Micro-USB connectors. At Robogears, we recommend this specific version for developers who want a reliable, easy-to-power board for portable electronics and small-scale automation. The onboard CH340G serial chip ensures cost-effective performance while maintaining full compatibility with the Arduino IDE and all standard libraries.

Detailed Key Features

  • Modern Type-C Interface: Provides a more secure mechanical connection and allows you to use standard smartphone cables to power and program your projects.

  • Compact Breadboard Layout: Designed with a 0.1" pin pitch, allowing it to plug directly into a breadboard for fast, jumper-free prototyping in your Pimpri workshop.

  • High-Precision ATmega328P: Features the same powerful microcontroller as the Arduino Uno, but in a fraction of the size, making it perfect for space-constrained builds.

  • Enhanced Analog Capacity: Offers 8 analog inputs—two more than the standard Uno—giving you extra channels for complex sensor arrays.

  • Onboard Voltage Regulation: Includes a 5V and 3.3V regulator, allowing the board to power small sensors and modules directly from its pins.

All Technical Details

  • PWM Support: 6 dedicated pins for smooth motor control and LED dimming.

  • Communication Protocols: Full hardware support for UART (Serial), $I^2C$ (TWI), and SPI.

  • Status LEDs: Integrated indicators for Power (POW), Transmit (TX), Receive (RX), and User LED (L - Pin 13).

  • Reset Switch: Top-mounted tactile button for easy manual restarts during debugging.

  • Pin Headers: Usually supplied as "un-soldered" to give you the flexibility to solder them facing up, down, or use direct wire connections.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Driver Installation: Since this board uses the CH340G chip, you will need to install the CH341 driver on your computer. This is a one-time setup that allows the Arduino IDE to communicate with the board.

  • Bootloader Selection: When uploading code, go to Tools > Processor in the Arduino IDE. Most modern compatible Nanos use the "ATmega328P" setting, but if the upload fails, try selecting "ATmega328P (Old Bootloader)".

  • Type-C Powering: While Type-C cables can carry high current, the Nano's onboard 5V regulator is small. Avoid drawing more than 500mA through the board's pins to prevent thermal shutdown.

  • Soldering Technique: If soldering the headers at your Pimpri lab, insert the headers into a breadboard first, then place the Nano on top. This keeps the pins perfectly aligned while you solder.

Package Includes

  • 1 x Arduino Compatible Nano V3.0 with Type-C USB (CH340G)

  • 2 x 15-Pin Male Headers

  • 1 x 6-Pin ISP Header

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in PCB color (typically Blue or Black) or component placement due to manufacturing updates, though all technical specifications will remain as described.
