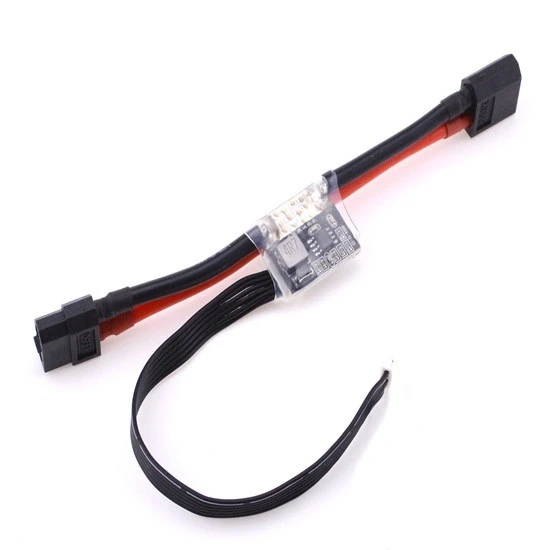

APM/Pixhawk Power Module V6.0 – Reliable Flight Controller Power Supply

APM/Pixhawk Power Module V6.0 – Reliable Flight Controller Power Supply

(0 review)
SpecificationDetails
Max Input Voltage28V (Up to 6S LiPo)
Max Current Sensing90A
BEC Output5.3V @ 3A
ConnectorsXT60 (Input/Output)
Data Cable6-Pin DF13 (Compatible with Pixhawk/APM)
Voltage/Current Scaling50V/V and 90A/V (Standard)
Price
₹ 440.68 ₹ 440.68
(Tax included)

Barcode: 59301237

Product Description

The APM/Pixhawk Power Module V6.0 is a specialized power management unit designed to provide clean, regulated power to your flight controller while simultaneously monitoring battery health. This V6.0 version features integrated XT60 connectors for high-current throughput and a high-efficiency 3A Battery Eliminator Circuit (BEC) that steps down your flight battery voltage to a stable 5.3V. By connecting this module between your LiPo battery and Electronic Speed Controllers (ESCs), you gain real-time telemetry data regarding current consumption and voltage levels. This information is critical for Mission Planner or QGroundControl to calculate remaining flight time and trigger "Battery Failsafe" protocols, ensuring your drone returns home safely before the battery is depleted.

Key Features

  • Dual Monitoring System: Provides accurate analog voltage and current readings to the flight controller via a single 6-pin cable.

  • High-Current Handling: The rugged XT60 connectors and thick traces support continuous currents up to 90A, suitable for medium to large-scale multirotors.

  • Stable 5.3V Supply: Unlike standard 5V BECs, this module outputs 5.3V to compensate for the small voltage drops across the flight controller's internal protection diodes.

  • 6S LiPo Compatibility: Optimized for high-voltage setups, safely handling input voltages up to 28V (6S lithium polymer batteries).

  • Plug-and-Play Integration: Directly compatible with the "Power" port on Pixhawk 2.4.8, APM 2.6/2.8, and similar flight controllers without the need for custom wiring.

Technical Details

  • Current Sensor: Based on a high-precision shunt resistor.

  • Weight: ~25g (Including cables).

  • Dimensions: ~25mm x 21mm x 9mm (PCB size).

Prototyping and Engineering Tips from Robogears

  • Mission Planner Calibration: CRITICAL: After installation, you must go to the Initial Setup -> Optional Hardware -> Battery Monitor screen in Mission Planner. Select "Sensor: Power Module," "APM Ver: Pixhawk," and "Battery Capacity: [Your Battery mAh]." If the voltage shown on your screen doesn't match a handheld multimeter, adjust the "Voltage Divider" value until they are identical.

  • Bypass the Servo Rail: Do not attempt to power high-torque servos directly from the flight controller while using this module. The 3A BEC is intended only for the flight controller, GPS, and telemetry radio. High-current servos should be powered by a separate dedicated BEC connected to the flight controller's servo rail output.

  • Vibration Isolation: Ensure the power module is secured to the frame and not vibrating against the flight controller. Mechanical noise from the thick battery wires can travel through the 6-pin cable and interfere with the flight controller's internal IMU (Inertial Measurement Unit).

  • Heat Dissipation: While rated for 90A, the module can get warm during long flights at high throttle. Ensure it is placed in an area with some airflow; do not wrap it tightly in foam or hide it deep inside a non-ventilated carbon fiber tube.

  • Connector Integrity: Regularly inspect the XT60 connectors for signs of heat (discoloration) or loose soldering. A power failure at this module during flight is a "single point of failure" that will lead to an immediate crash.

Package Includes

  • 1 x APM/Pixhawk Power Module V6.0 (XT60)

  • 1 x 6-Pin DF13 Telemetry Cable

Disclaimer: Always verify the polarity of your battery connection before plugging in. Ensure the total current draw of your drone does not exceed 90A. This module is designed for flight controllers; do not use it to power large mechanical actuators or high-power FPV transmitters exceeding 3A. Always perform a ground test with a multimeter before the first flight.
