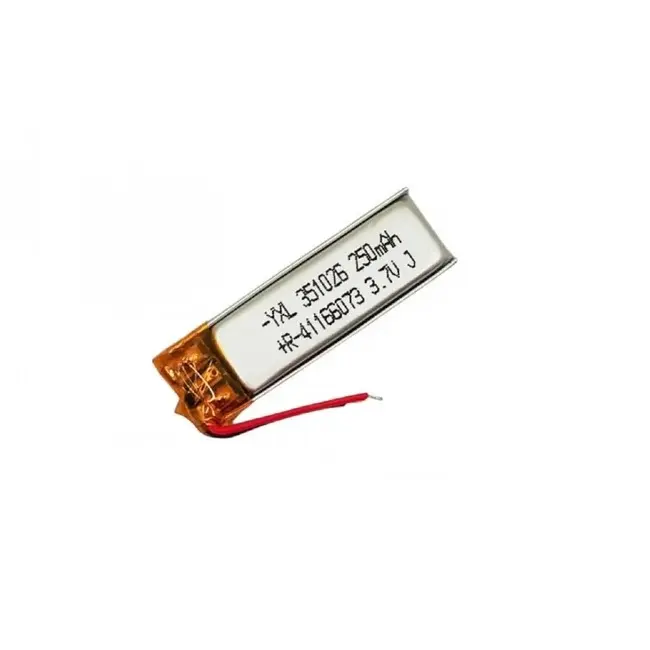

3.7V 250mAh Li-Po Battery YXL-351026 Rechargeable Cell for Bluetooth and Micro Drones

3.7V 250mAh Li-Po Battery YXL-351026 Rechargeable Cell for Bluetooth and Micro Drones

(0 review)
ComponentSpecification
ModelYXL-351026
ChemistryLithium Polymer (Li-Po)
Nominal Voltage3.7V
Full Charge Voltage4.2V
Capacity250mAh
Dimensions35 x 10 x 26 mm (Approx.)
Weight~5–7 Grams
Price
₹ 110.17 ₹ 110.17
(Tax included)

Product Description The YXL-351026 is an ultra-compact 3.7V 250mAh Lithium Polymer battery designed for micro-scale electronics where space is at a premium. Its slim profile and feather-light weight make it the perfect power source for Bluetooth headsets, wearable gadgets, and palm-sized RC drones. Despite its small size, it provides a stable voltage discharge and efficient energy delivery, ensuring reliable performance for high-tech DIY projects and portable consumer electronics.

Key Features

  • Ultra-Slim Form Factor: Designed specifically for thin enclosures and micro-robotics.

  • High Energy Density: Delivers 250mAh in a package weighing less than 10 grams.

  • Stable Power Output: Maintains a consistent 3.7V nominal output for precision logic circuits.

  • Rechargeable Efficiency: Built for a long cycle life with minimal capacity loss over time.

  • Versatile Use: Ideal for everything from smart rings to miniature flight controllers.

Technical Details

  • Standard Charge Current: 0.5C (125mA)

  • Max Charge Current: 1C (250mA)

  • Standard Discharge Current: 0.2C (50mA)

  • Max Continuous Discharge: ~1C–2C (250mA–500mA)

  • Operating Temperature: -20°C to +60°C

  • Cycle Life: 300–500 Cycle

Prototyping and Engineering Tips from Robogears

  • Precise Charging: To maximize the lifespan of such a small cell, use a dedicated Li-Po charger. We recommend setting your charging current to no more than 100mA–150mA; charging too fast (above 1C) can cause heat buildup and reduce the battery's health.

  • Mounting in Tight Spaces: Because the casing is a soft pouch, use double-sided "tissue tape" rather than thick foam tape to keep your project as thin as possible. Ensure no sharp solder points on your PCB are pressing against the battery pouch.

  • Low-Power Logic: This battery is perfect for ESP32-C3 or nRF52-series "Low Power" Bluetooth projects. In deep-sleep mode, a 250mAh cell can keep a sensor alive for weeks or even months depending on the transmission interval.

  • Wiring Strain Relief: The lead wires on micro batteries are delicate. Apply a tiny drop of hot glue at the wire-to-pouch junction to act as a strain relief if your project involves movement or frequent battery handling.

Package Includes

  • 1 x 3.7V 250mAh Li-Po Rechargeable Battery (YXL-351026)

Disclaimer Images are for reference; actual dimensions or wire color may vary slightly by batch. Specifications subject to change by manufacturer. Handle with care; do not puncture or expose to high temperatures.
