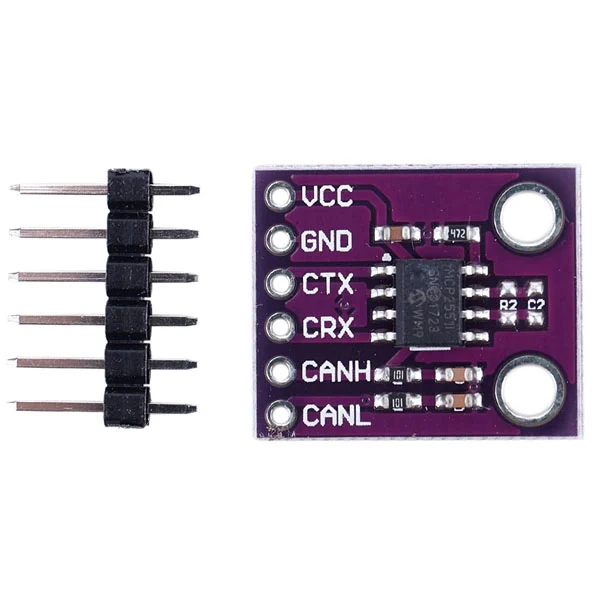

MCP2551 CAN Bus Transceiver Module – High-Speed ISO-11898 Controller Interface for Arduino & Automotive Networking

Product Description The MCP2551 CAN Bus Transceiver Module is a high-speed, fault-tolerant device that serves as the interface between a CAN protocol controller and the physical bus. Designed for robust automotive and industrial networking, it converts the digital TTL signals from a microcontroller (via a CAN controller like the MCP2515) into the differential signals required for CAN High and CAN Low lines. This module is fully compliant with ISO-11898 standards, ensuring high-speed communication up to 1 Mb/s. It is the essential component for building OBD-II diagnostic tools, vehicle-to-vehicle communication systems, and heavy-duty industrial sensor networks where electromagnetic interference is a concern.

Key Features

• High-Speed Communication: Supports data rates up to 1 Mb/s, meeting the requirements of modern high-speed CAN protocols.

• Robust Fault Protection: Features high-voltage transient protection and short-circuit protection against ±40V on the CANH and CANL pins.

• ISO-11898 Compliance: Adheres to international standards for physical layer connectivity in automotive and industrial environments.

• Slope Control Input: Allows for the adjustment of signal slope via an external resistor to reduce Electromagnetic Emission (EME).

• Low-Current Standby Mode: Features a low-power standby state to conserve energy in battery-operated vehicle monitoring systems.

Technical Details

• Operating Principle: Acts as a physical layer bridge, translating UART-like digital pulses into differential voltages to resist common-mode noise.

• Differential Signaling: Uses CANH and CANL lines to ensure signal integrity even in electrically noisy engine bays.

• Node Capacity: Capable of supporting up to 112 nodes on a single bus, suitable for complex industrial automation.

• Thermal Shutdown: Built-in thermal protection circuitry prevents the IC from overheating during bus contention or short-circuits.

• EMI Suppression: Internal circuitry is optimized to provide high immunity against radio frequency interference (RFI).

• Slope Control (RS Pin): Pin 8 allows three modes of operation: High-Speed, Slope Control, or Standby, depending on the resistance to ground.

• Wide Common-Mode Range: Operates reliably with common-mode voltages ranging from -7V to +12V.

• Input Logic Sensitivity: Optimized to interface directly with 5V CAN controllers and most 5V-tolerant microcontrollers.

• Data Link Stability: Features a "Dominant Time-out" function to prevent a single faulty node from permanently blocking the bus.

• Power Supply Stability: Optimized for 5V DC supply, with an internal LDO structure to maintain signal levels.

• PCB Build: High-quality FR-4 double-sided PCB with compact headers for easy integration into breadboards or custom shields.

• Permanent Damage Protection: Protected against battery short-circuits and 40V transients on the bus pins.

• Output Drive: High-current output drivers can drive long lengths of twisted-pair cabling without signal degradation.

• Logic Level Compatibility: Direct TTL interface for TxD and RxD pins, making it easy to pair with MCP2515 controllers.

• Mounting Holes: Miniature design includes standard pin spacing for secure attachment to main controller boards.
