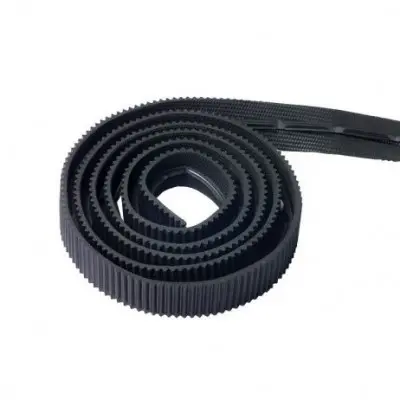

2cm x 120cm Extended Rubber Track Belt High-Grip Caterpillar Track for DIY Robot Chassis

2cm x 120cm Extended Rubber Track Belt High-Grip Caterpillar Track for DIY Robot Chassis

(0 review)
ComponentSpecification
MaterialReinforced Flexible Rubber
Width20 mm (2 cm)
Length (Periphery)1200 mm (120 cm)
Internal TextureToothed / Ribbed for Gear Grip
External TextureHigh-Friction Anti-Slip Tread
ColorIndustrial Black
ThicknessApprox. 2mm to 3mm
Price
₹ 152.54 ₹ 152.54
(Tax included)

Product Description The 2cm x 120cm Extended Rubber Track Belt is an extra-long, high-performance drive component designed for larger robotic platforms, long-reach conveyor systems, and heavy-duty tank chassis. Engineered with a rugged outer tread, it provides exceptional traction on challenging surfaces like gravel, sand, or inclined planes. The internal ribbed profile is specifically designed to mesh with drive sprockets, ensuring high-torque transmission without slippage. This extended length allows for greater design flexibility in building long-base search-and-rescue robots or custom industrial belt systems.

Key Features

  • Extended 120cm length for large-scale robotic projects and long conveyors.

  • Superior grip caterpillar tread for climbing obstacles and rough terrain.

  • High-tensile rubber construction resistant to stretching and environmental wear.

  • Flexible enough to rotate around small-diameter idler pulleys.

  • Seamless closed-loop design for maximum structural reliability under load.

Technical Details

  • Loop Type: Continuous Closed-Loop

  • Tread Design: Horizontal Lug / Caterpillar Style

  • Temperature Range: -10°C to +80°C

  • Load Capacity: Optimized for medium-to-large mobile robots

  • Drive Compatibility: Fits 20mm wide sprockets or pulleys

  • Reinforcement: Low-stretch internal fibers

  • Weight: Approx. 85g to 95g

Prototyping and Engineering Tips from Robogears

  • Long Span Support: Due to the 120cm length, ensure you use multiple idler rollers along the bottom of your chassis to prevent the track from "sagging." Sagging can lead to the track throwing off the sprocket during turns.

  • Tensioning Mechanism: Incorporate a spring-loaded tensioner or an adjustable slot for the idler axle. This helps maintain the perfect balance between grip and motor efficiency.

  • Differential Steering: For a tank chassis, pair two of these tracks with high-torque geared motors (like the RS-555 or 775 series). This setup allows for powerful "skid-steering" maneuvers on almost any surface.

  • Maintenance: Keep the internal ribs free of debris. Small stones trapped between the belt and the sprocket can cause the belt to snap or the motor to stall.

Package Includes

  • 1 x Rubber Track Belt (2cm Width x 120cm Length)

Disclaimer Product images are for illustrative purposes; actual appearance or tread may vary by batch. Specifications are subject to change by the manufacturer. Ensure proper tensioning to prevent track derailment or mechanical failure.
