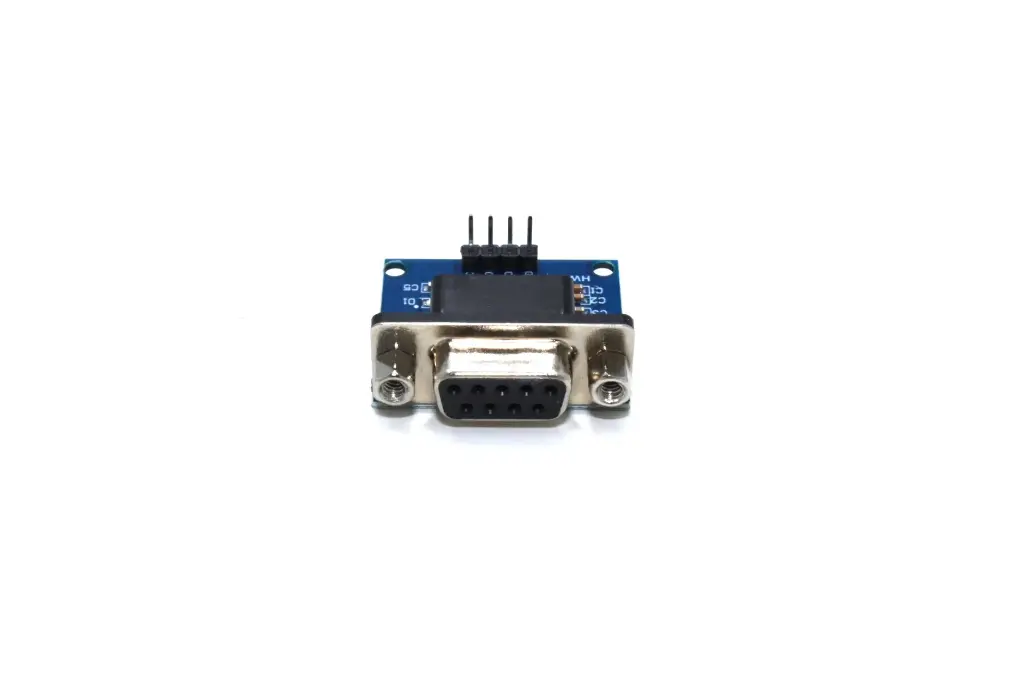

RS232 to TTL Serial Interface Converter Module – MAX3232 Based 4-Pin Level Shifter

RS232 to TTL Serial Interface Converter Module – MAX3232 Based 4-Pin Level Shifter

(0 review)
ParameterDetailed Specification
Main ChipMAX3232 (Industrial Grade)
Operating Voltage3.3V to 5.5V DC
Baud Rate SupportUp to 120kbps
Communication InterfaceRS232 (Female DB9) & TTL (4-Pin Header)
Logic Level Compatibility3.3V and 5.0V Systems
Operating Temp-40°C to +85°C
Dimensions31mm x 33mm (Approx.)
Price
₹ 59.32 ₹ 59.32
(Tax included)

Product Description

Safely bridge the gap between industrial serial ports and modern microcontrollers with the RS232 to TTL Serial Interface Module. Traditional RS232 ports operate at high voltages (+/- 12V), which can instantly destroy an Arduino or ESP32. This module utilizes the high-performance MAX3232 IC to accurately shift those signals down to safe 3.3V or 5V TTL levels. At Robogears, we recommend this module for technicians and engineers who need to interface with legacy hardware, PLCs, or networking equipment. Featuring a standard Female DB9 connector and a breadboard-friendly 4-pin header, this converter ensures stable, bi-directional data transmission for your most critical debugging and automation tasks.

Detailed Key Features

  • Bi-Directional Level Shifting: Seamlessly converts RS232 signals to TTL and vice versa, allowing for two-way communication between a PC and a microcontroller.

  • MAX3232 Advantage: Unlike older MAX232 chips, the MAX3232 operates efficiently on both 3.3V and 5V, making it compatible with Raspberry Pi, STM32, and Arduino without additional circuitry.

  • Industrial DB9 Interface: Features a high-quality Female DB9 socket with secure screw-locking holes, ideal for permanent installations in control panels.

  • Small Form Factor: The compact PCB design fits easily into small enclosures or onto a standard breadboard using jumper wires.

  • Integrated Capacitors: Built-in charge pump capacitors ensure stable voltage regulation and signal integrity even at higher baud rates.

All Technical Details

  • Pin Definition (TTL Side):

    • VCC: Positive Power (3.3V - 5.5V).


    • GND: Common Ground.


    • TXD: Transmit Data (Connect to MCU RX).


    • RXD: Receive Data (Connect to MCU TX).


  • Connector Type: 9-Pin DB9 Female (RS232 Side).

  • Hardware Support: Supports standard TX and RX serial lines (does not support hardware flow control like RTS/CTS).

  • Applications: Firmware flashing for satellite receivers/routers, PLC programming, car diagnostics, and connecting legacy sensors to IoT gateways.

Prototyping & Engineering Tips (Robogears Exclusive)

  • The "RX/TX Cross" Rule: In our experience, the most common setup error is pin orientation. Connect the TXD pin of the module to the RX pin of your Arduino, and the RXD pin of the module to the TX pin of your Arduino.

  • Power Matching: Always power the module with the same voltage as your microcontroller. If you are using an ESP32, power it with 3.3V; for an Arduino Uno, use 5V. This ensures the logic levels on the TTL side are perfectly matched.

  • DB9 Gender Check: This module has a Female DB9 connector. If your industrial equipment also has a female port, you will need a "Male-to-Male" serial cable or a gender changer.

  • Baud Rate Stability: For long cable runs (over 5 meters), we suggest keeping the baud rate at 9600 or 19200 bps to minimize the risk of data corruption caused by electrical noise.

Package Includes

  • 1 x RS232 to TTL Serial Interface Module (MAX3232)

  • 1 x 4-pin Male Header (Pre-soldered)

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically Blue or Green) or the specific manufacturer of the MAX3232 chip may vary between batches, but the RS232-to-TTL conversion performance and 3.3V/5V compatibility remain as described.
