HC-SR501 PIR Motion Sensor Module (SMD Version) – Adjustable Passive Infrared Human Body Detector for Arduino, ESP32, Raspberry Pi, and Smart Home Security Systems

HC-SR501 PIR Motion Sensor Module (SMD Version) – Adjustable Passive Infrared Human Body Detector for Arduino, ESP32, Raspberry Pi, and Smart Home Security Systems

(0 review)
ParameterDetailed Specification
ModelHC-SR501 (SMD Version)
Operating Voltage4.5V to 20V DC
Sensing Range3 to 7 Meters (Adjustable)
Delay Time5s to 200s (Adjustable)
Output TypeHigh/Low Level Digital Signal (3.3V Logic)
Quiescent Current< 50µA
Sensing Angle< 120 Degrees
Trigger ModesL (Non-repeatable) / H (Repeatable)
Price
₹ 67.80 ₹ 67.80
(Tax included)

Product Description

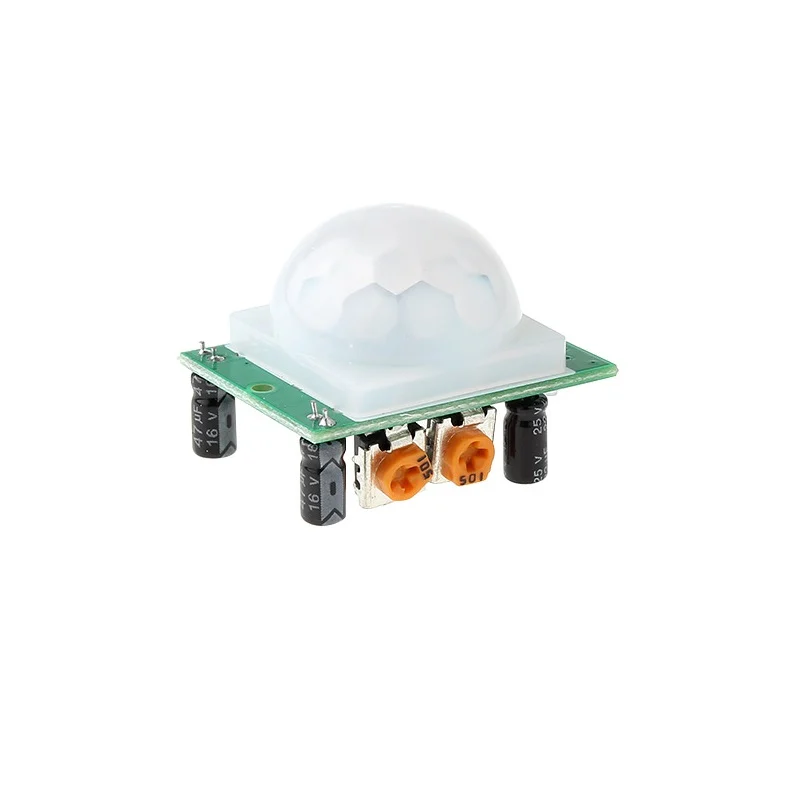

Automate your environment with the HC-SR501 PIR Motion Sensor Module. This industry-standard Passive Infrared (PIR) detector is designed to sense human or animal movement by measuring changes in infrared radiation levels. At Robogears, we recommend this SMD version for its enhanced stability and compact component profile, making it easier to integrate into slim enclosures. The module features two on-board potentiometers to fine-tune sensitivity and delay time, along with a specialized Fresnel lens to maximize its 120-degree detection cone. Whether you are building an energy-saving light controller or an intruder alert system at your Pimpri workshop, the HC-SR501 provides reliable, low-power motion detection with a simple 3-pin interface.

Detailed Key Features

  • Passive Infrared Technology: Detects body heat movement without emitting any radiation, ensuring completely silent and safe operation.

  • Dual Adjustment Controls: Features two multi-turn potentiometers: one for Sensitivity (distance) and one for Time Delay (how long the output stays HIGH).

  • Wide Voltage Compatibility: Operates on anything from 4.5V to 20V, though the digital output signal is a safe 3.3V, making it directly compatible with Arduino and Raspberry Pi.

  • Repeatable Trigger (H Mode): When set to 'H', the sensor will keep the output HIGH as long as motion is continuously detected, preventing lights from turning off while someone is in the room.

  • Low Power Consumption: Drawing less than 50µA in standby, it is perfectly suited for battery-powered IoT security nodes.

All Technical Details

  • Pin Definition:

    • VCC: Positive Power (5V is standard for Arduino).

    • OUT: Digital Output (3.3V High when motion is detected).

    • GND: Common Ground.

  • Temperature Compensation: The SMD internal circuitry helps maintain sensing accuracy even during ambient temperature fluctuations.

  • Lens System: High-quality polyethylene Fresnel lens splits the sensing area into multiple zones for better motion resolution.

  • Applications: Automatic hallway lighting, security alarms, interactive museum exhibits, and "human-present" industrial safety triggers.

Prototyping & Engineering Tips (Robogears Exclusive)

  • The "Warm-Up" Phase: At our Pimpri facility, we always advise users to wait 30 to 60 seconds after powering the sensor before trusting the readings. The PIR element needs this time to calibrate itself to the room's ambient infrared signature.

  • Potentiometer Direction: Turning the Sensitivity screw clockwise increases the distance (up to 7m); turning the Delay screw clockwise increases the "ON" time (up to 3 minutes).

  • Avoid Heat Sources: Do not mount the PIR sensor directly above a radiator, AC vent, or in direct sunlight. Rapidly changing air temperatures can cause "false triggers."

  • Jumper Selection: Check the yellow jumper on the corner of the PCB. For most smart home projects, keep it on the "H" (Repeatable) setting so the light stays on as long as you are moving.

Package Includes

  • 1 x HC-SR501 PIR Motion Sensor Module (SMD Version)

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically Blue or Green) or the specific brand of the SMD components may vary between batches, but the HC-SR501 motion detection performance and 4.5V-20V compatibility remain as described.
