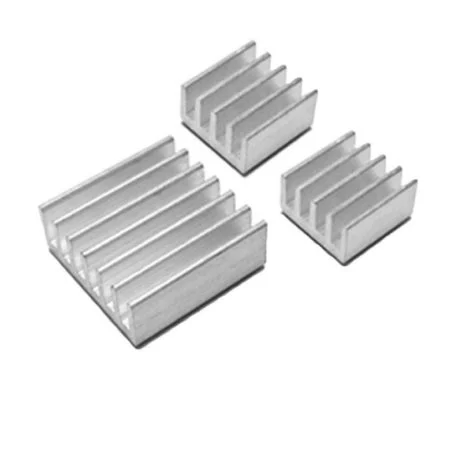

3 in 1 Aluminium Heat Sink Set for Raspberry Pi 3/4

3 in 1 Aluminium Heat Sink Set for Raspberry Pi 3/4

(0 review)
SpecificationDetails
MaterialHigh-grade Aluminium
CompatibilityRaspberry Pi 4 Model B, Pi 3 Model B/B+
Thermal InterfacePre-applied Self-adhesive Thermal Tape
Quantity3 Heat Sinks per Set
Large Heat Sink Size14mm x 14mm x 6mm (CPU)
Small Heat Sink Size9mm x 9mm x 5mm (RAM/LAN)
Price
₹ 25.42 ₹ 25.42
(Tax included)

Barcode: 643500

Product Description

This kit is designed for passive cooling, meaning it works silently without the need for fans or external power. Each heat sink features multiple fins to increase the surface area exposed to the air, significantly improving heat dissipation. The pre-applied thermal adhesive makes installation effortless—simply peel and stick them onto the designated chips on your Raspberry Pi board.

Key Features

  • Tailored Fit: Specifically sized for the main processing chips of the Raspberry Pi 3 and 4, ensuring maximum contact and cooling efficiency.

  • Easy Installation: No messy thermal paste required; the thermal conductive tape is already attached to the bottom of each sink.

  • Silent Operation: Provides effective cooling without the noise or power consumption of an active cooling fan.

  • Corrosion Resistant: Made from high-quality aluminium that will not rust or degrade over time in humid environments.

  • Low Profile: Designed to be thin enough to fit inside most standard Raspberry Pi cases while still providing a significant cooling boost.

Technical Details

  • Color: Typically Silver or Black (Anodized).

  • Thermal Conductivity: Optimized for small electronics.

Prototyping and Engineering Tips from Robogears

  • Cleaning Before Applying: Before sticking the heat sinks on, use a small amount of Isopropyl Alcohol (IPA) and a lint-free cloth to clean the top of the Pi's chips. Any oils from your fingers can reduce the effectiveness of the thermal tape.

  • Placement Accuracy: Once the thermal tape touches the chip, it sticks very firmly. Align the heat sink carefully before pressing down; trying to remove and re-stick it can damage the tape's conductive properties.

  • Passive vs. Active Cooling: While these heat sinks are excellent for standard use, if you are overclocking your Pi or keeping it inside a very small, airtight case, you may still need a small 5V fan to move air over these fins.

  • Short-Circuit Prevention: Ensure the heat sinks only touch the top of the black chips. If a heat sink is tilted and touches nearby metal pins or capacitors, it could cause a short circuit.

Package Includes

  • 1 x Large Aluminium Heat Sink (for CPU)

  • 2 x Small Aluminium Heat Sinks (for RAM and Ethernet/USB Controller)

Disclaimer

Ensure the Raspberry Pi is powered off and unplugged before installation. Handle the heat sinks by the edges to keep the thermal tape clean.
