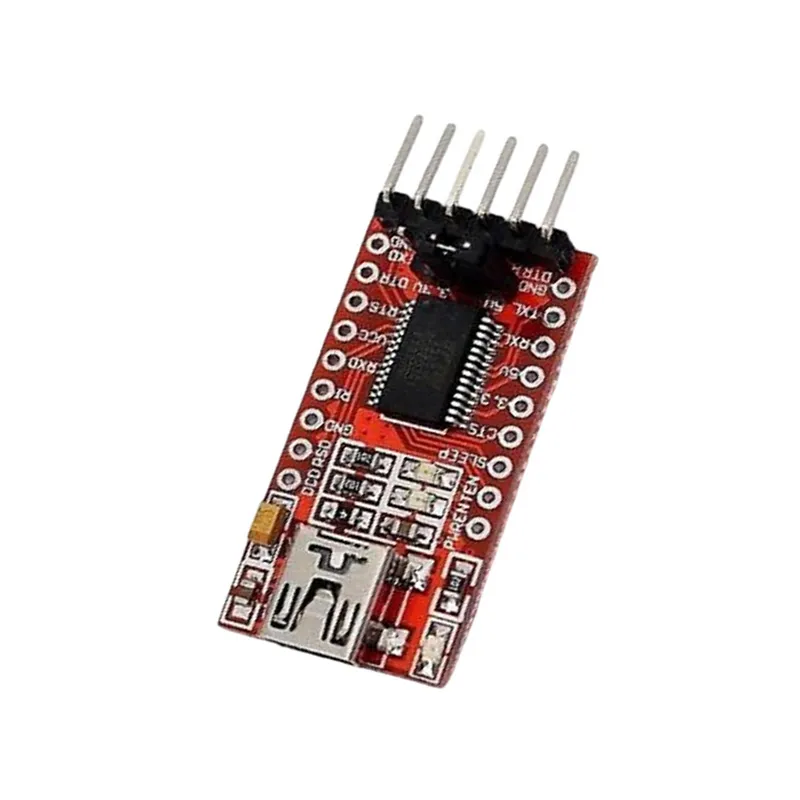

FT232RL USB to TTL Serial Adapter Module – Original FTDI Chipset, 3.3V/5V Switchable Interface for Arduino, ESP8266, and Firmware Programming

Product Description The FT232RL USB to TTL Serial Adapter is a professional-grade communication bridge based on the industry-standard FTDI chipset. It is designed to convert USB signals into TTL serial data, making it an essential tool for programming microcontrollers that lack on-board USB-to-Serial hardware, such as the Arduino Pro Mini or custom ESP8266 boards. This module features a convenient jumper to toggle between 3.3V and 5V logic levels, ensuring safe operation with modern low-voltage sensors and legacy 5V systems. Built-in status LEDs provide real-time visual feedback of data transmission, while the self-resetting fuse protects your computer's USB port from accidental short circuits.

Key Features

• Genuine FT232RL Chipset: Provides stable, driver-supported communication across all major operating systems including Windows 10/11, Linux, and macOS.

• Switchable Voltage Logic: A physical jumper allows instant selection between 3.3V and 5V power/logic, preventing accidental over-voltage damage.

• Complete 6-Pin Breakout: Includes the DTR pin, which is critical for the "Auto-Reset" function when uploading code to Arduino boards.

• Hardware Protection: Integrated 500mA self-resetting fuse prevents over-current damage to the host PC or connected hardware.

• Triple LED Status: Dedicated on-board LEDs for Power, RX, and TX signals for rapid debugging and link verification.

Technical Details

• Full USB Support: Fully compatible with USB 2.0 specifications; utilizes a Mini-USB interface for robust mechanical connection.

• Integrated Clock Generation: Features an internal clock oscillator, removing the need for an external crystal and improving signal reliability.

• Configurable EEPROM: Includes 1024 bits of internal EEPROM for storing USB VID, PID, serial number, and product description strings.

• Advanced Driver Support: Compatible with Royalty-Free Virtual Com Port (VCP) and Direct (D2XX) drivers for high-performance applications.

• Data Transfer Rates: Supports a wide range of baud rates from 300 baud up to 3 Megabaud for high-speed data logging.

• Logic Level Shifting: On-board circuitry ensures that the RX and TX lines remain strictly within the selected voltage range (3.3V or 5V).

• Operating Current: Low power consumption of approximately 15mA in active mode and 70µA in USB suspend mode.

• Bit-Bang Mode: Supports asynchronous and synchronous bit-bang interface modes for direct GPIO control via USB.

• Signal Buffering: High-quality on-chip buffers ensure signal integrity even with longer jumper wire connections.

• Pin Arrangement: Standard 2.54mm (0.1") pitch headers allow for direct connection to breadboards or female-to-female jumper cables.

• CTS/RTS Support: Breakout pins include Clear to Send (CTS) and Request to Send (RTS) for hardware flow control requirements.

• Thermal Protection: Built-in thermal shutdown protection prevents chip damage during prolonged high-current usage.

• PCB Construction: Industrial-grade FR-4 PCB with high-quality gold or tin-plated pads for long-term solder durability.

• EMI Shielding: Designed to minimize electromagnetic interference, ensuring clean data transmission in noisy environments.

• Environmental Compliance: Fully RoHS compliant and lead-free, adhering to global electronic safety standards.
