75pcs DIY Gear Kit - Plastic Gear Assortment for Robotics

Technical Details

• Gear Modulus: 0.5M (Standard hobbyist pitch).

• Color: Assorted (Typically White, Yellow, and Blue).

• Weight: ~100g (Total Kit).

Prototyping and Engineering Tips from Robogears

• The "Press-Fit" Trick: CRITICAL: If a gear has a 1.9mm hole and you are struggling to fit it onto a 2mm motor shaft, do not use a hammer. Instead, dip the gear in hot water for 30 seconds to soften the plastic, or use a soldering iron to very briefly warm the motor shaft before pressing the gear on.

• 90-Degree Power: To change the direction of rotation by 90 degrees, use a Crown Gear meshed with a standard spur gear. This is essential for building steering mechanisms or vertical lifting winches.

• High Torque with Worm Gears: Use the included Worm Gear on your motor shaft to drive a large spur gear. This creates a massive gear reduction that provides high torque and, importantly, prevents the mechanism from "back-driving" (the load won't fall when the motor is off).

• Reducing Friction: For the smoothest operation, apply a tiny drop of Silicone Grease or dry PTFE lubricant to the gear teeth. Avoid petroleum-based oils, as they can eventually degrade certain types of plastic.

• Belt Tensioning: When using the included rubber belts and pulleys, ensure the belt is taut but not "stretching" the motor shaft. Excessive tension can cause the motor bearings to wear out prematurely or bend the plastic axles.

Package Includes

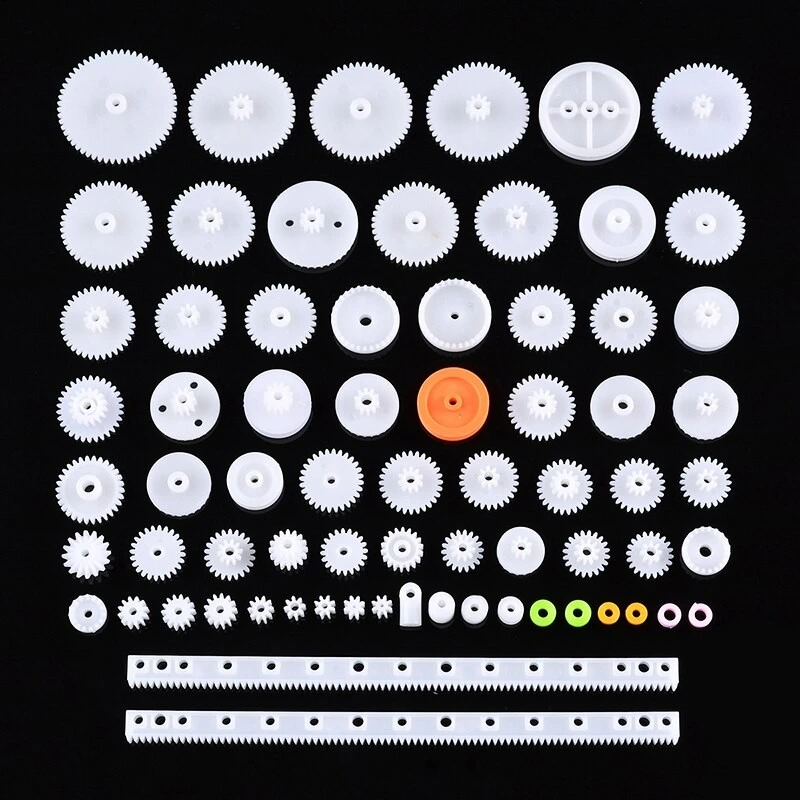

• 75 x Assorted Gears, Pulleys, Belts, and Bushings

Disclaimer: Product images are shown for illustrative purposes only. The exact count of each specific gear type may vary slightly between manufacturing batches, but the total count will remain 75 pieces. Some components may vary in color depending on the production run.

Safety Warning: This kit contains small parts that pose a choking hazard. Keep away from children under 3 years old. When experimenting with high-speed DC motors, ensure gears are securely fastened to prevent them from flying off and causing injury.
