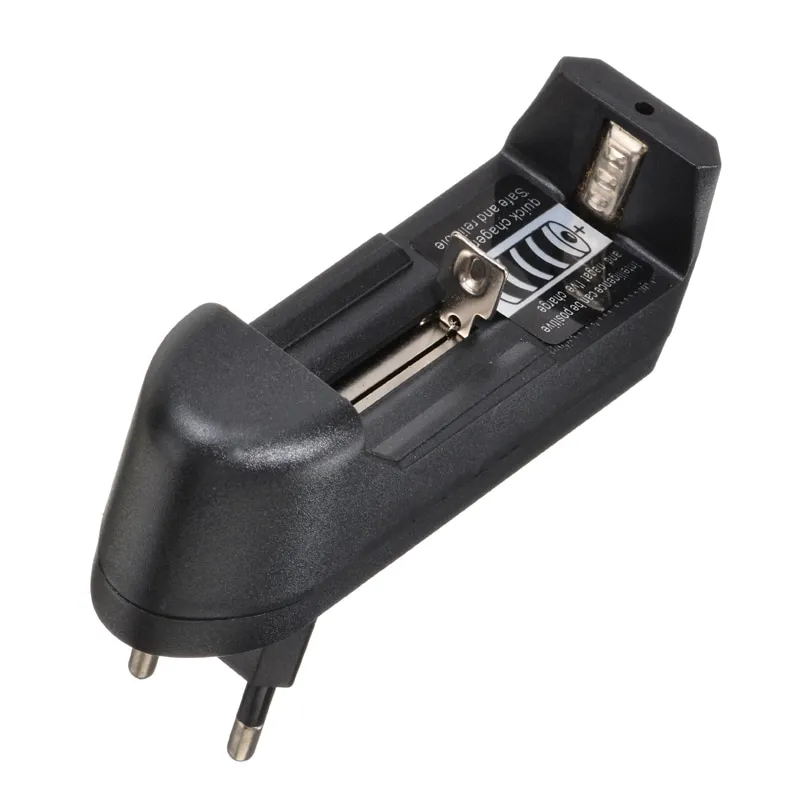

Universal Single Battery Charger for 3.7V Li-ion Cells (18650, 26650, 14500, 16340)

Universal Single Battery Charger for 3.7V Li-ion Cells (18650, 26650, 14500, 16340)

(0 review)
ComponentSpecification
Supported ChemistryLithium-Ion (Li-ion)
Compatible Cell Sizes18650, 26650, 14500, 16340 (RCR123), 10440
Input VoltageAC 100V – 240V, 47-63Hz
Output VoltageDC 3.7V – 4.2V
Charging Current450mA to 500mA
Termination Voltage4.2V ± 1%
Price
₹ 72.03 ₹ 72.03
(Tax included)

Product Description The Universal Single-Slot Li-ion Battery Charger is a versatile charging solution for a wide range of 3.7V cylindrical lithium batteries. Featuring a spring-loaded adjustable slider, it can securely hold and charge cells of varying lengths, from the small 16340 to the large 26650. The internal circuitry utilizes an intelligent CC/CV (Constant Current/Constant Voltage) charging profile, ensuring that each cell is charged safely and efficiently to its peak voltage of 4.2V, significantly extending the overall lifespan of your batteries.

Key Features

  • Adjustable Spring Slider: Automatically adapts to different battery heights and diameters.

  • Smart LED Indicator: Features a dual-color LED (Red: Charging / Green: Full or Standby) for easy status monitoring.

  • Safety Termination: Built-in overcharge protection stops current flow once the battery reaches 4.2V.

  • Compact & Portable: Features a space-saving design with a built-in AC plug, ideal for travel or field use.

  • Wide Input Range: Compatible with global voltage standards (100V-240V AC).

Technical Details

  • Plug Type: Indian/European Standard 2-pin

  • Charging Logic: Microprocessor-controlled CC/CV

  • Material: Fire-retardant ABS Plastic

  • Dimensions: Approx. 100mm x 40mm x 30mm

  • Weight: Approx. 45g

Prototyping and Engineering Tips from Robogears

  • Polarity Check: Always verify the + (Positive) and - (Negative) markings on the charger before inserting the cell. While most units have basic protection, reverse polarity can damage the internal charging IC.

  • Recovery of "Dead" Cells: If a Li-ion battery has dropped below 2.5V, many smart chargers will not detect it (the LED will stay Green). You may need a specialized "recovery" charger to jumpstart such deeply discharged cells.

  • Charging Time Calculation: To estimate the charging time, use the formula:

    $$Time (hours) = \frac{Battery Capacity (mAh)}{Charger Current (mA)} \times 1.2$$

    (The 1.2 factor accounts for the slower CV phase at the end of the cycle.)

  • Heat Dissipation: It is normal for the charger to feel warm during the first 80% of the charge cycle. However, if the battery becomes hot to the touch, disconnect it immediately as the cell may be faulty.

Package Includes

  • 1 x Universal Single-Slot 3.7V Li-ion Battery Charger

Disclaimer

Images are for reference; housing style or LED placement may vary by batch. For use with 3.7V/4.2V Lithium-Ion batteries only. Never attempt to charge Alkaline, Ni-MH, or Ni-Cd batteries in this device.
